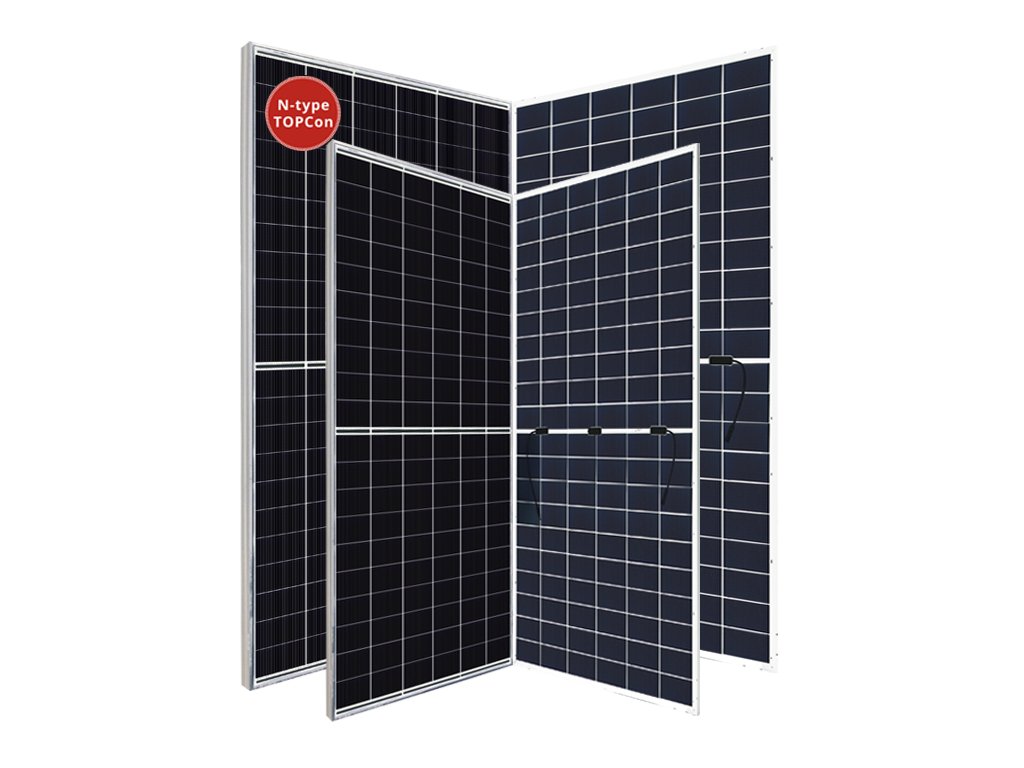

Canadian Solar TOPBiHiKu7 CS7N-700TB-AG (EVO2, Bifacial)
Code: CS7N-700TB-AG
Product detailed description
Canadian Solar TOPBiHiKu7: Performance and Reliability
This solar panel from Canadian Solar offers exceptional performance and superior efficiency. With comprehensive LID/LeTID mitigation technology and high load resistance, it is the ideal choice for energy efficient solutions.
Benefits of Canadian Solar TopBiHiKu7
High performance
- Module power up to 725 W, module efficiency up to 23.2%, bifacial up to 85%
- No boron-oxygen LID and anti PID, less degradation
- 16BB cell technology, better light trapping and current draw, higher power
High energy yield, low LCOE
- Low temperature coefficient (Pmax): -0.29%/℃, more energy in hot climate
- 2% higher energy production than PERC
- Approximately 2.3% lower LCOE than PERC
Increased reliability
- Minimized impact of microcracks on the module
- Snow load up to 5,400 Pa, wind load up to 2,400 Pa
Innovations and parameters
Canadian Solar TOPBiHiKu7 is equipped with advanced technology such as optimization to minimize microcracks and high shading tolerance. It operates over a temperature range of -40°C to +85°C and has a maximum system voltage of 1500V (IEC/UL) or 1000V (IEC/UL).
Why choose Canadian Solar?
Canadian Solar is a renowned PV panel manufacturer that focuses on innovation and quality. Their products are designed to provide reliable performance and long-term resistance to extreme weather conditions. With Canadian Solar, you get technology that is both environmentally friendly and cost-effective.
Additional parameters
| Category: | Photovoltaic modules |
|---|---|
| Weight: | 37.8 kg |
| Brand: | Canadian Solar |
| Lenght: | 2384 mm |
| Width: | 1303 mm |
| Height: | 33 mm |
| Power: | 700 W |
| Connector: | EVO2 |
| Cell: | TOPCon |
| Cell arrangement: | 132 [2 x (11 x 6) ] |
| Front layer: | 2.0 mm heat-strengthened glass with an anti-reflective coating |
| Back layer: | 2.0 mm, Heat Strengthened Glass |
| Frame: | Anodized aluminum alloy |
| J-Box: | IP68, 3 bypass diodes |
| Cable: | 4 mm2 (IEC) |
| Pallet: | 33 pcs |
| Container (40' HQ): | 594 pcs |
