    Home / Photovoltaics / Inverters / Deye SUN-10.5K-G02P1-EU-AM2

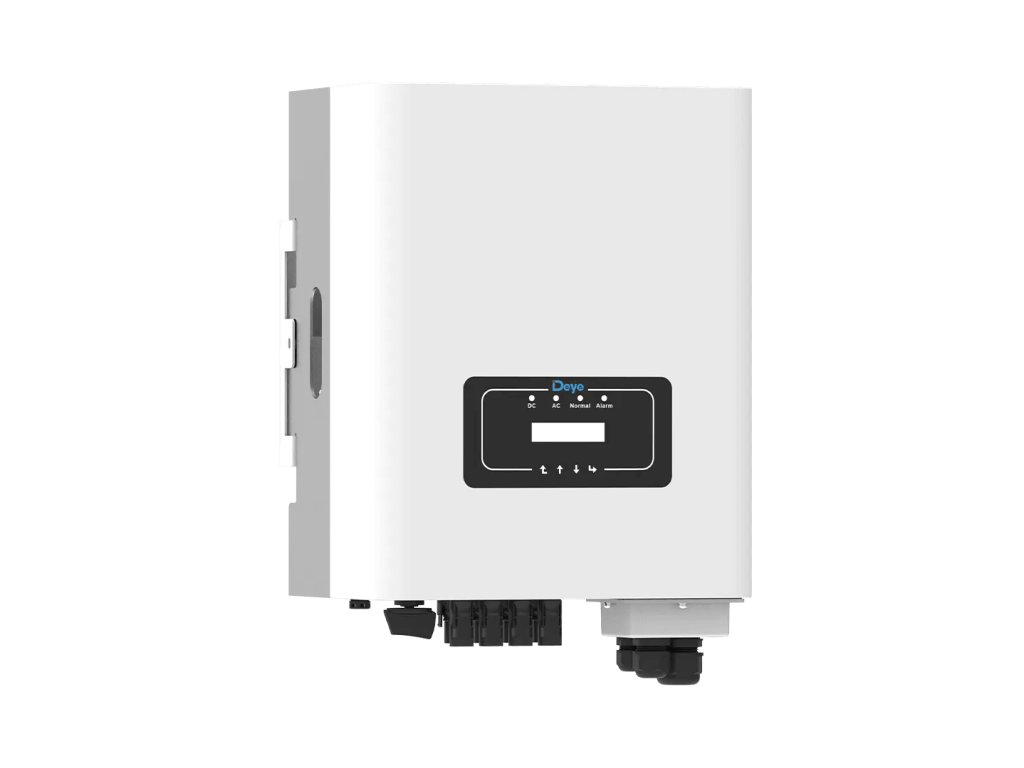

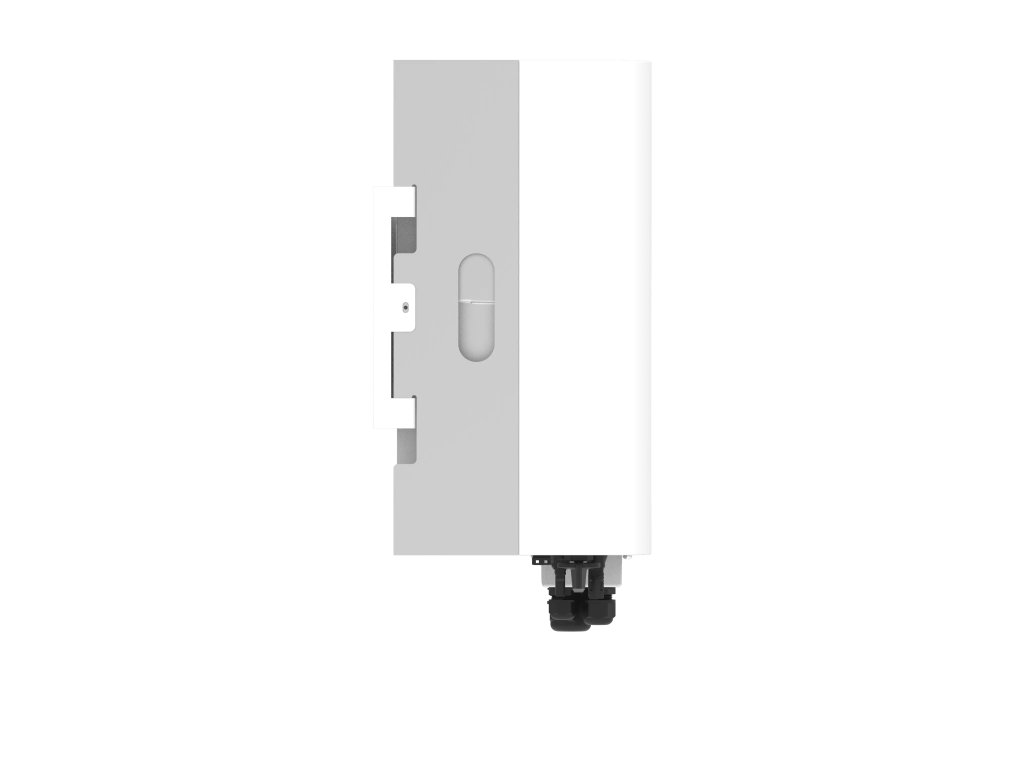

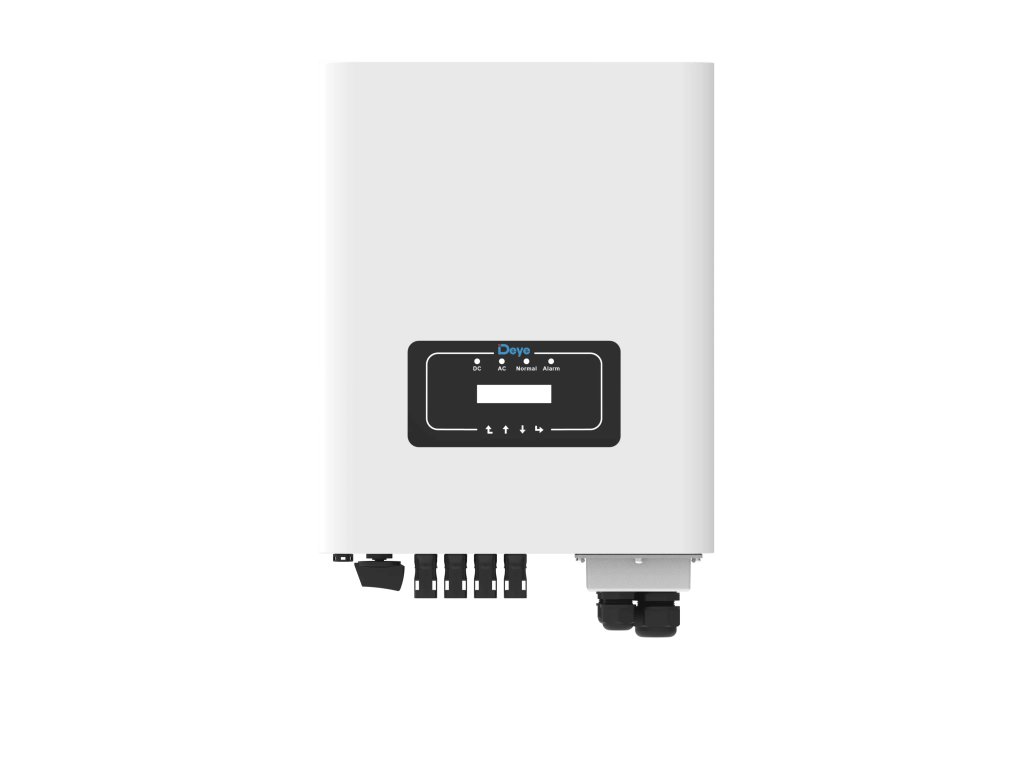

    Deye SUN-10.5K-G02P1-EU-AM2

    Code: DEYE-SUN-10.5K-G02P1-EU-AM2
    Not rated
    Deye SUN-10.5K-G02P1-EU-AM2
    €0 €0 incl. VAT
    On order

    The Deye SUN-(9-10.5)K-G02P1-EU-AM2 is a powerful single-phase string inverter that is ideal for larger solar PV systems in homes and commercial buildings. It offers excellent efficiency, advanced features and strong protection to ensure reliable and optimized power generation. This makes it ideal for homes and businesses with high energy demand.

    Detailed information

    Fair price
    Fair price
    We offer competitive prices with an emphasis on quality and transparency
    Fast delivery
    Fast delivery
    Products in stock, ships now. Backordered items ship in 5 days.
    Loyalty bonus
    Loyalty bonus
    Regular customers get discounts and bonuses for their loyalty.
    Expert turnkey installation
    Expert turnkey installation
    We provide end-to-end services with a quality guarantee.

    Product detailed description

    Key Features

    • High efficiency: achieves maximum efficiency of up to 97.7% thanks to the dual MPPT trackers, ensuring maximum power output from the solar panels.
    • Low inrush voltage: It starts at a low voltage of 80 V, allowing optimum performance even in low light conditions.
    • Zero Export Application: Supports zero export function, allowing you to manage your energy consumption and maximize your own power consumption.
    • VSG application: Enables voltage support functions, contributing to grid stability.
    • Smart Chain Monitoring: Offers optional smart chain monitoring for advanced system diagnostics.
    • Wide output voltage range: Provides flexible output voltage for compatibility with different network configurations.
    • Anti-PID function: Optional anti-PID function helps prevent power degradation caused by PID phenomena in PV modules.
    • Comprehensive Protection: Includes DC over-polarity protection, AC output over-current and over-voltage protection, short-circuit protection, thermal protection, and surge protection.
    • Monitoring and communication: supports various communication interfaces including GPRS/WIFI/Bluetooth/4G/LAN (optional), RS485/RS232 and monitoring modes.

    Additional parameters

    Category: Inverters
    Weight: 14.8 kg
    Brand: DEYE
    Lenght: 213.5 mm
    Width: 330 mm
    Height: 410 mm
    Power: 11000 W
    Number of phases: 1
    Degree of protection (IP): IP65
    Communication: RS485, RS232
    Number of MPPT: 2
    String: 2+2
    Type: Network
    Voltage converters - DEYE - Model series: G02P1-EU-AM2 | 1 Phase | 2 MPPT
    Nominal voltage: 230 V
    Operating voltage: 70-500 VDC
    Maximum Output Power: 11550 VA

    Be the first who will post an article to this item!

    Only registered users may submit ratings. Please log in or sign up.

    Discussion

    Be the first who will post an article to this item!

    Required fields

    Do not fill out this field:

    Ningbo Deye Technology Co., Ltd. is a leading high-tech manufacturer specializing in the R&D, production, and global distribution of innovative energy and environmental solutions. The company operates across four core business segments:

    • Solar Inverter Systems
    • Solar-Powered Air Conditioning
    • Dehumidifiers
    • Heat Exchangers

    Committed to intelligent, energy-efficient, and eco-friendly technologies, DEYE combines cutting-edge innovation with industry trends to deliver sustainable products for modern living.

    Leveraging China’s strong market foundation and advanced digital ecosystem, DEYE has emerged as a global leader in new energy inverter technology, precision frequency conversion control, and high-end environmental appliances. Recognized as a top-tier brand in solar energy and HVAC components, DEYE continues to drive progress in smart, green technology worldwide.
