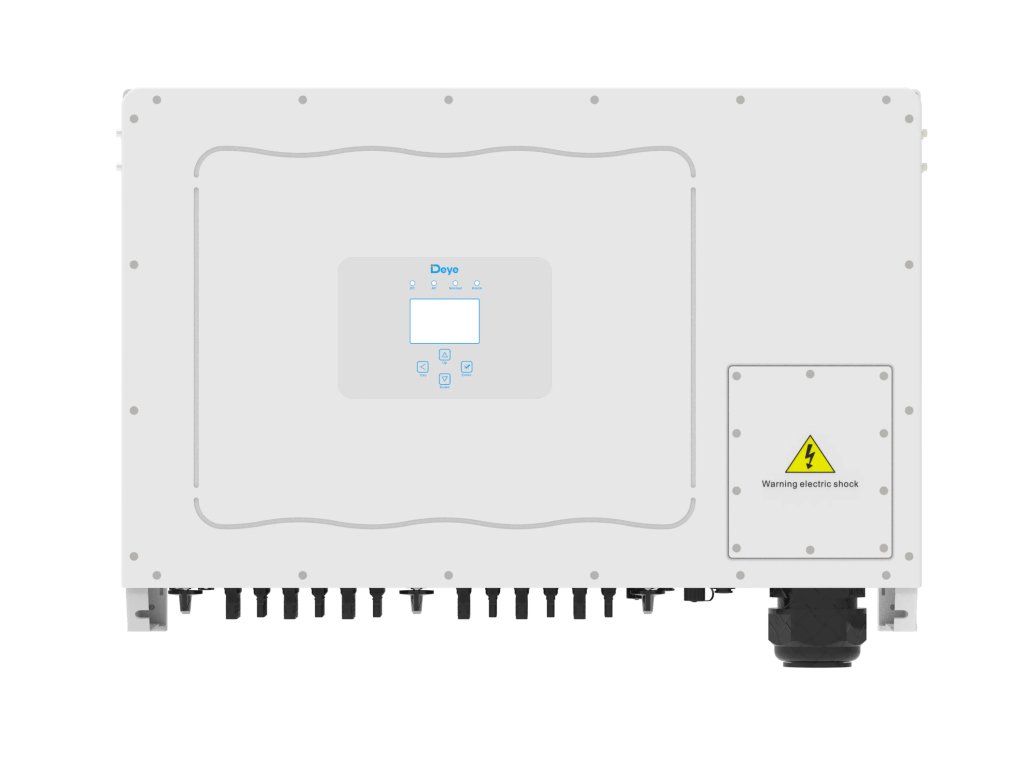

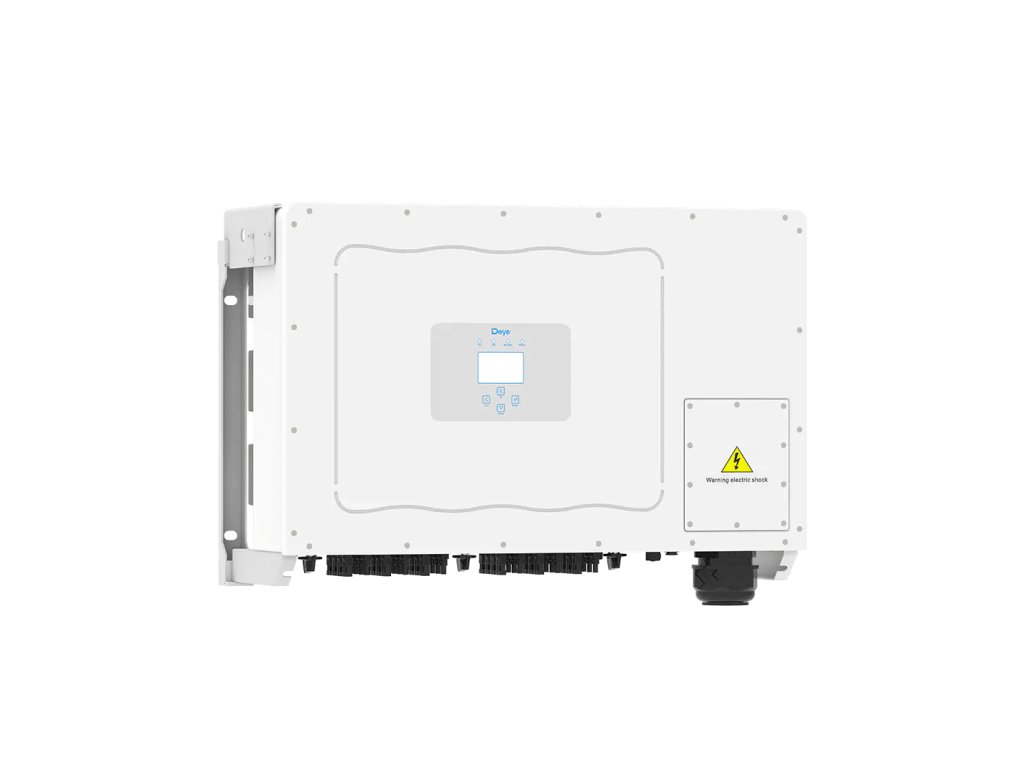

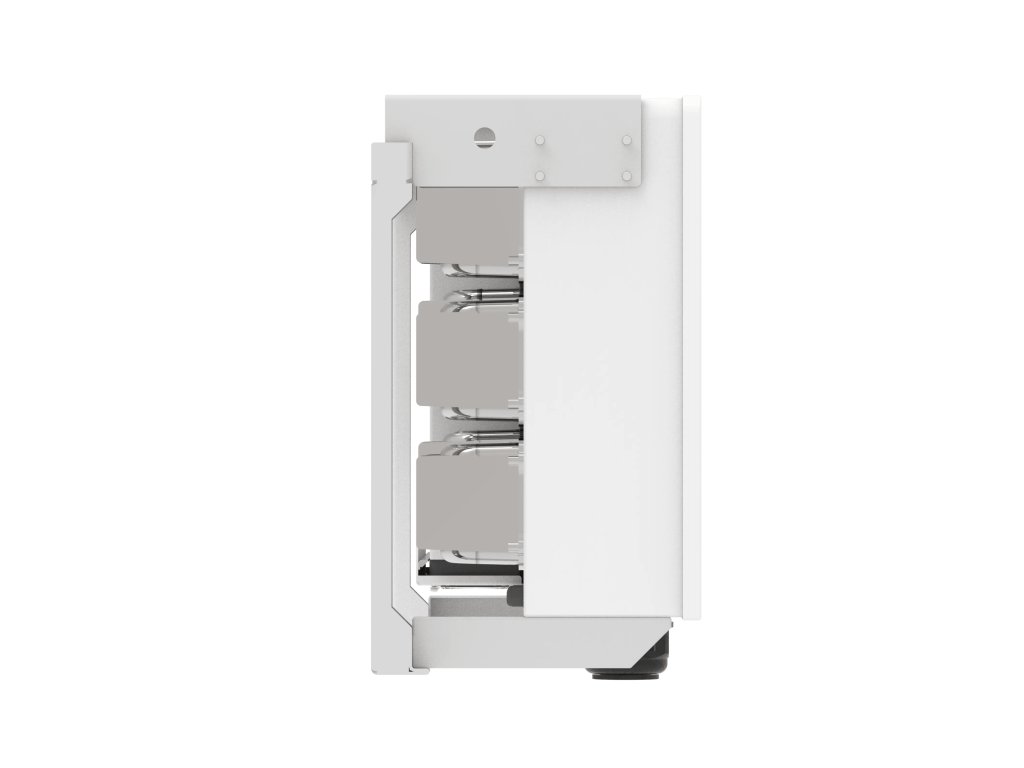

Deye SUN-80K-G03

Product detailed description

Key Features

Exceptional Efficiency: The SUN-G03 offers a maximum efficiency of up to 98.8%, with European efficiency reaching up to 98.2%. This high efficiency ensures that more of the energy from the solar panels is converted into usable electricity, maximizing the return on investment by minimizing losses.

Multiple MPPT Channels: Equipped with up to 6 MPPT (Maximum Power Point Tracking) channels, these inverters optimize the power from multiple strings of solar panels, especially in installations with different orientations and shading conditions, and enable precise tracking of the optimal power point of each string.

Wide MPPT Voltage Range: The inverters operate in a wide MPPT voltage range of 200-850V, offering greater flexibility in system design and adapting to various solar panel configurations.

Advanced Safety and Protection Features: The SUN-G03 series incorporates comprehensive protection mechanisms such as DC reverse polarity protection, AC output overcurrent and overvoltage protection, AC output short circuit protection, thermal protection, and ground fault current monitoring, enhancing the safety and reliability of the solar system.

PID Mitigation and Zero Export Function: The optional Anti-PID (Potential-Induced Degradation) function maintains the performance of solar panels over time, while the Zero Export function ensures that grid export limits are respected, making these inverters suitable for regions with strict grid regulations.

Robust Design: Housed in an IP65 enclosure, the SUN-G03 inverters are designed to withstand harsh environmental conditions. Their intelligent air cooling system ensures effective temperature control, operating in a temperature range of -25°C to +60°C, with derating above 45°C.

Comprehensive grid compatibility: These inverters comply with multiple international grid regulations and safety standards, including IEC 61727, IEC 62116, EN 50549, and VDE-AR-N 4105, ensuring compatibility and safe operation in various regions and grid conditions.

Versatile communication and monitoring capabilities: With support for various communication interfaces such as GPRS, Wi-Fi, Bluetooth, 4G, LAN, RS485, and RS232, the SUN-G03 series enables flexible monitoring and control, allowing users to effectively manage and optimize their solar systems.

Lightweight and compact: Despite their high performance, the inverters are compact and relatively light (approximately 81 kg) with dimensions of 824 × 516 × 312.7 mm, simplifying the installation process and integration into existing systems.

Grid support and power quality: The Virtual Synchronous Generator (VSG) feature and excellent total harmonic distortion (THD) of less than 3% support grid stability and power quality, making these inverters an excellent choice for modern grid-connected solar systems.
