    Home / Photovoltaics / Inverters / Victron EasySolar-II 48/5000/70-50 GX

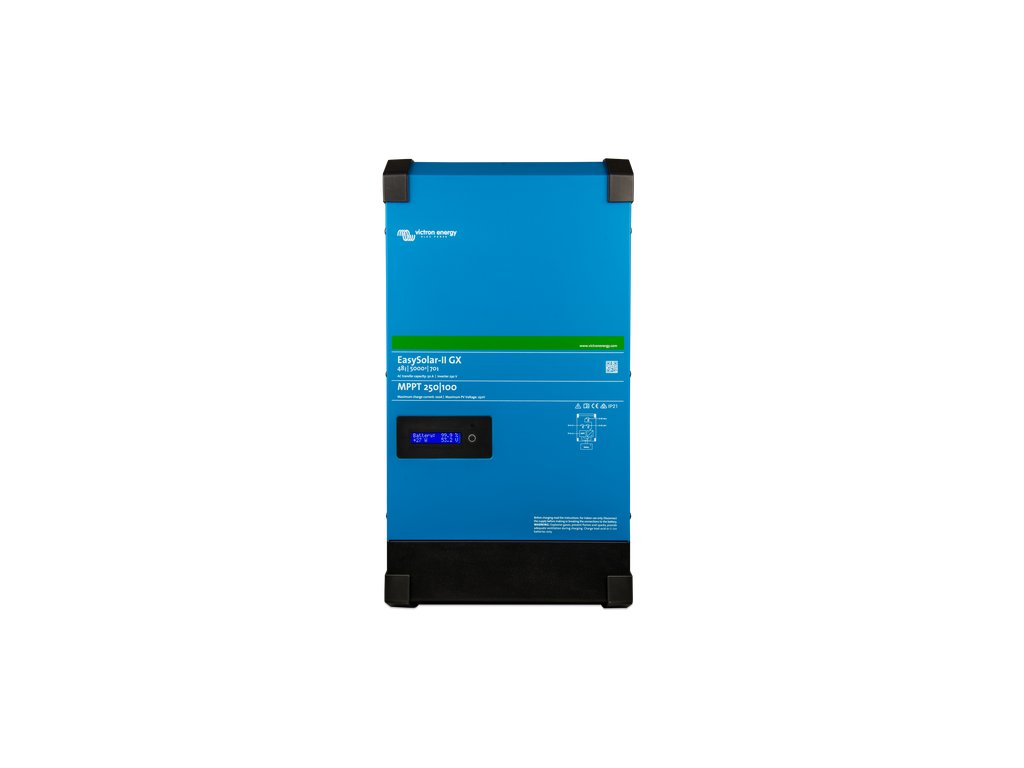

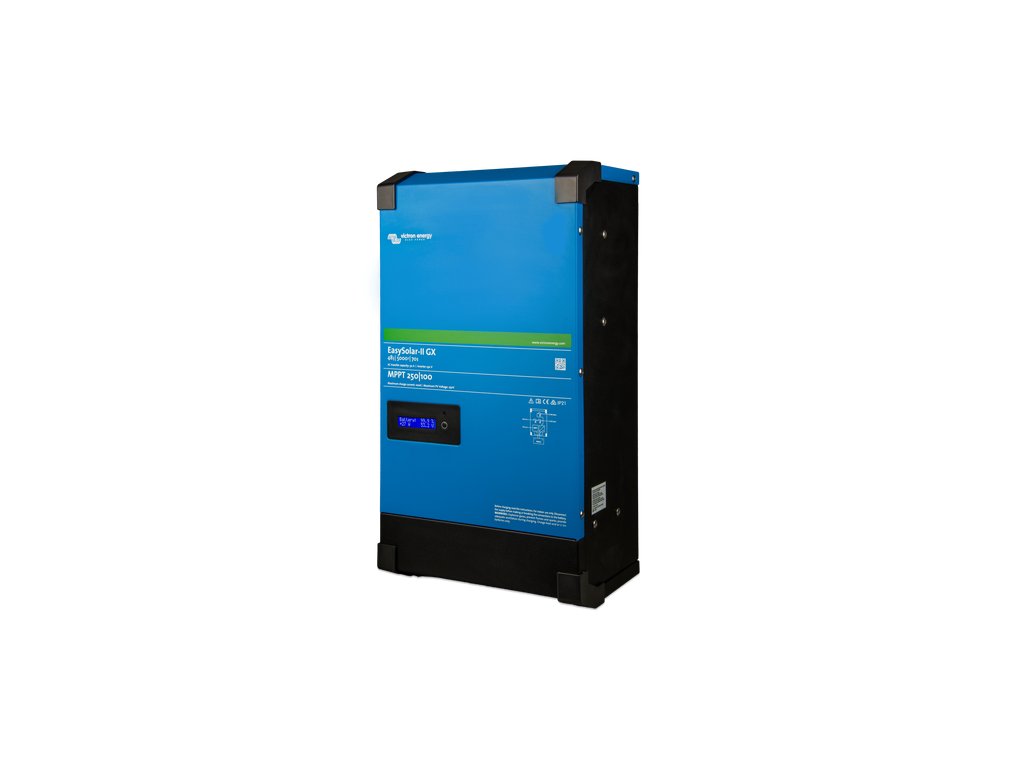

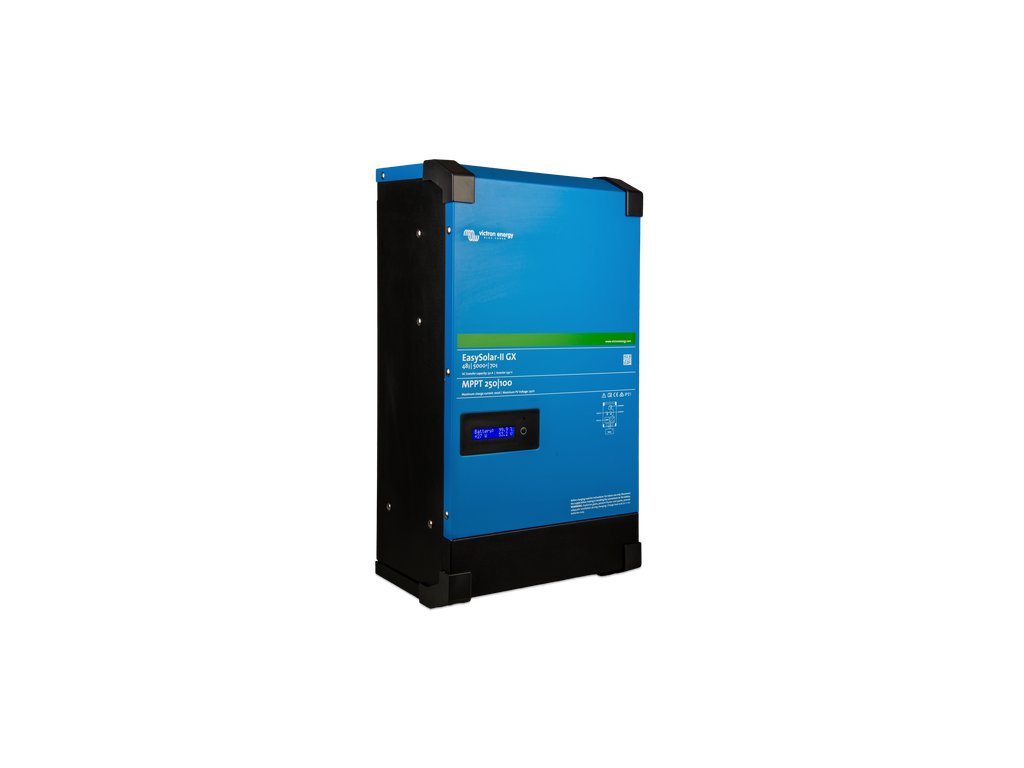

    Victron EasySolar-II 48/5000/70-50 GX

    Code: VICTRON-ES-II-48-5000-70-50-GX
    Not rated
    Victron EasySolar-II 48/5000/70-50 GX
    €0 €0 incl. VAT
    International delivery
    On request

    The EasySolar-II GX integrates an MPPT solar charge controller, inverter/charger and AC distribution into a single cabinet, simplifying installation with minimal wiring.

    Detailed information

    Fair price
    Fair price
    We offer competitive prices with an emphasis on quality and transparency
    Fast delivery
    Fast delivery
    Products in stock, ships now. Backordered items ship in 5 days.
    Loyalty bonus
    Loyalty bonus
    Regular customers get discounts and bonuses for their loyalty.
    Expert turnkey installation
    Expert turnkey installation
    We provide end-to-end services with a quality guarantee.

    Product detailed description

    Key Features

    Display and Wi-Fi
    The display shows the parameters of the battery, inverter and solar charge controller.
    The same parameters can be accessed using a smartphone or other Wi-Fi enabled device.
    In addition, Wi-Fi can be used to configure the system and change settings.

    Solar charge controller
    The DC output of the SmartSolar MPPT is connected in parallel with the DC connection of the MultiPlus-II inverter/charger.
    The on/off mechanism of the MultiPlus-II is also controlled by the SmartSolar MPPT.

    GX Device
    The integrated GX device includes:
    - BMS-Can interface. This can be used to connect to a compatible CAN bus controlled battery. Please note that this is not a VE.Can compatible port.
    - USB port
    - Ethernet port
    - VE.Direct port

    The GX controls the MultiPlus-II and SmartSolar MPPT using VE.Bus and VE.Direct.

    Additional parameters

    Category: Solar inverters
    Weight: 38.6 kg
    Brand: Victron Energy
    Lenght: 253 mm
    Width: 323 mm
    Height: 604 mm
    Power: 5000 W
    Number of phases: 1
    Degree of protection (IP): IP21
    Communication: VE.Bus
    Type: Off-Grid
    Nominal voltage: 230 V, 48 V
    Rated Battery Charge Current: 70 A
    Transfer switch: 50 A
    Product: Charger
