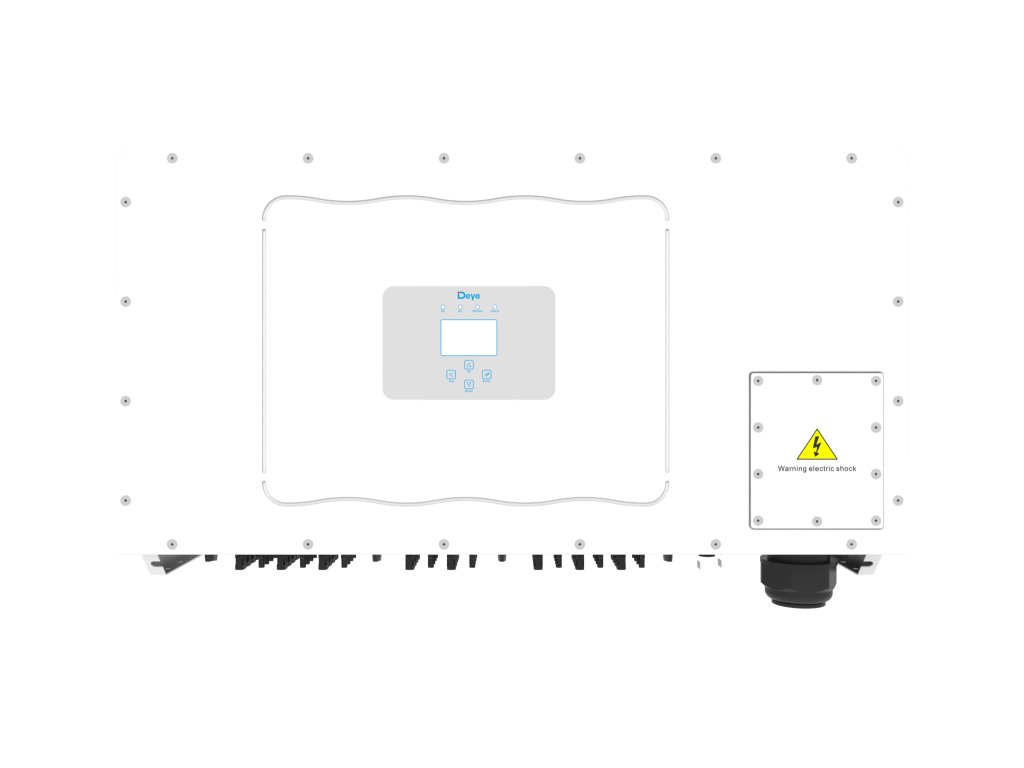

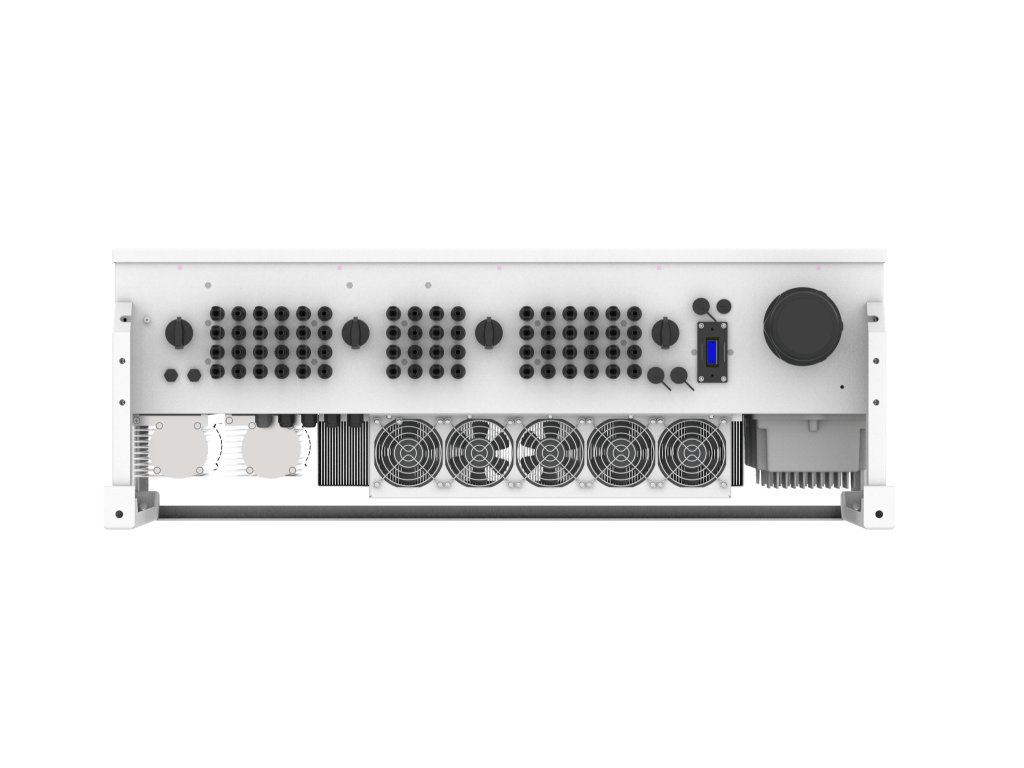

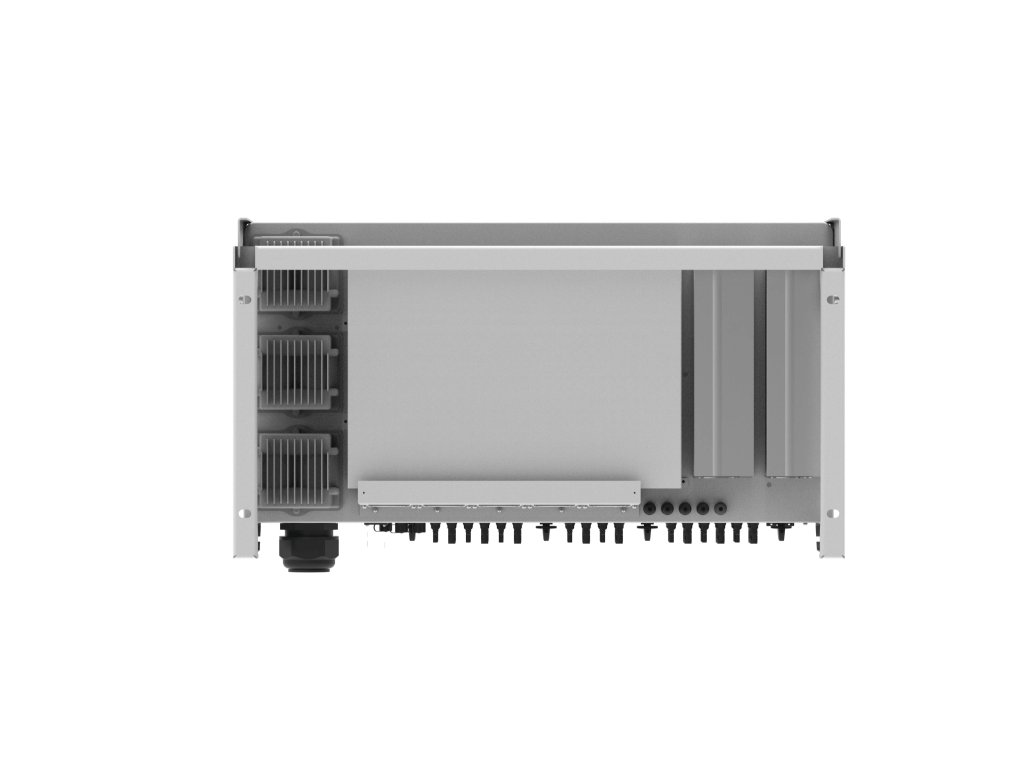

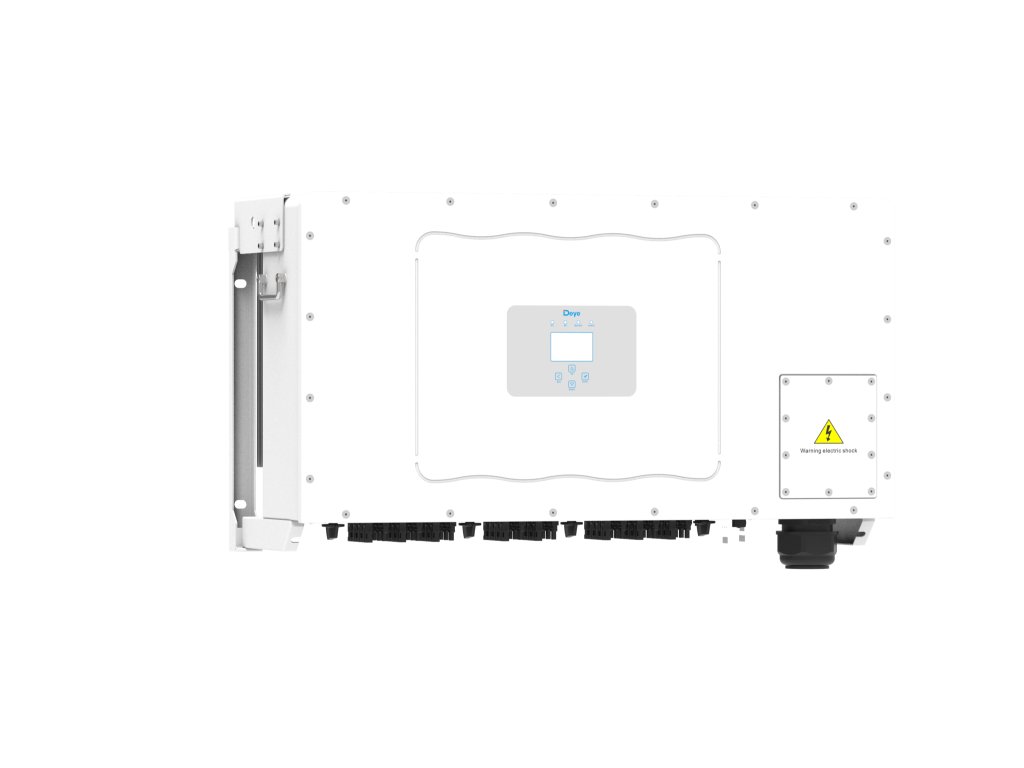

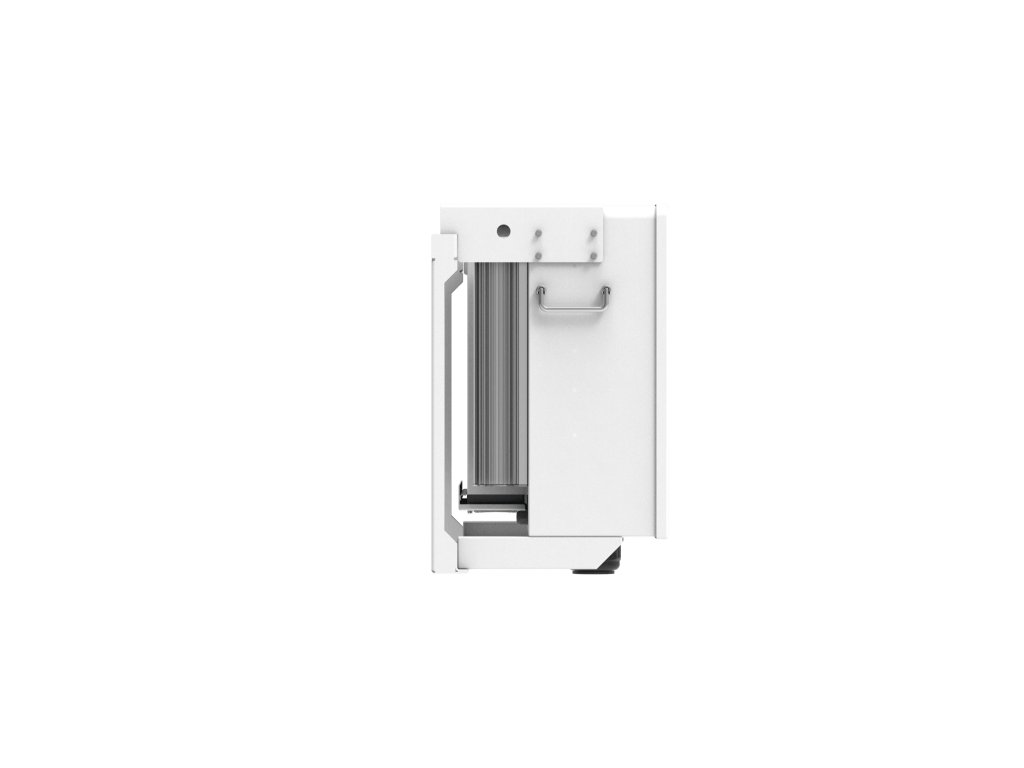

Deye SUN-120K-G01P3

Product detailed description

Key Features

• Best efficiency: it achieves a maximum efficiency of up to 98.8% and a European efficiency of 98.2%, ensuring excellent energy conversion for optimum performance.
• Eight MPPT trackers.
• Zero Export and VSG applications.
• Wide MPPT voltage range: Offers an MPPT voltage range from 200 V to 1,000 V, providing the flexibility to adapt to different PV string configurations and lengths for a variety of installation scenarios.
• Anti-PID function (optional): Includes an optional anti-potential degradation (PID) function to help protect solar modules from power loss, extend their lifetime, and maintain higher power output.
• Advanced Protection Mechanisms: Equipped with Type II DC/AC surge protection devices (SPD) and comprehensive protection features such as reverse polarity protection, AC and surge protection, short circuit protection, and thermal protection.
• Flexible communication and monitoring:Provides multiple monitoring options such as GPRS, WiFi, Bluetooth, 4G and LAN (optional), along with RS485 and RS232 communication interfaces for easy integration and real-time system monitoring.
• Rugged construction: these inverters are IP65 rated and designed to operate over a wide temperature range from -25°C to +60°C (with derating above 45°C) to withstand harsh environmental conditions. They operate efficiently up to an altitude of 4,000 meters and maintain noise levels below 65 dB.
• Compliance and certification: they comply with international safety and performance standards such as IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99 and VDE-AR-N 4105. Meets EMC standards including IEC/EN 61000-6-1/2/3/4 and IEC/EN 62109-1/2.
