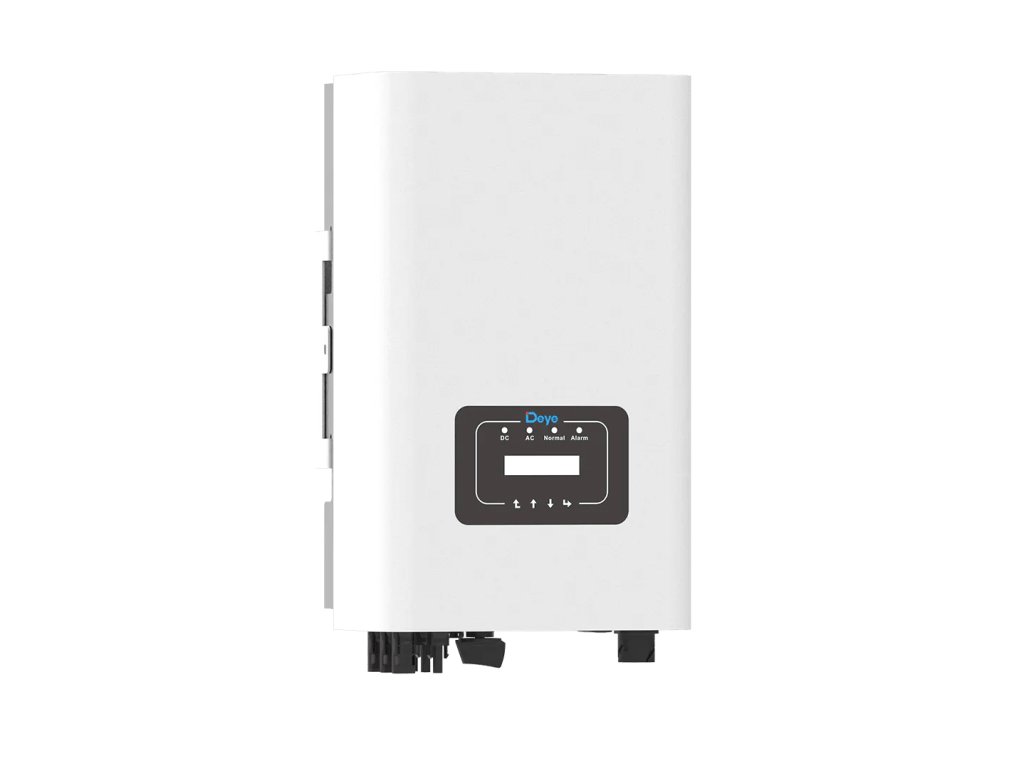

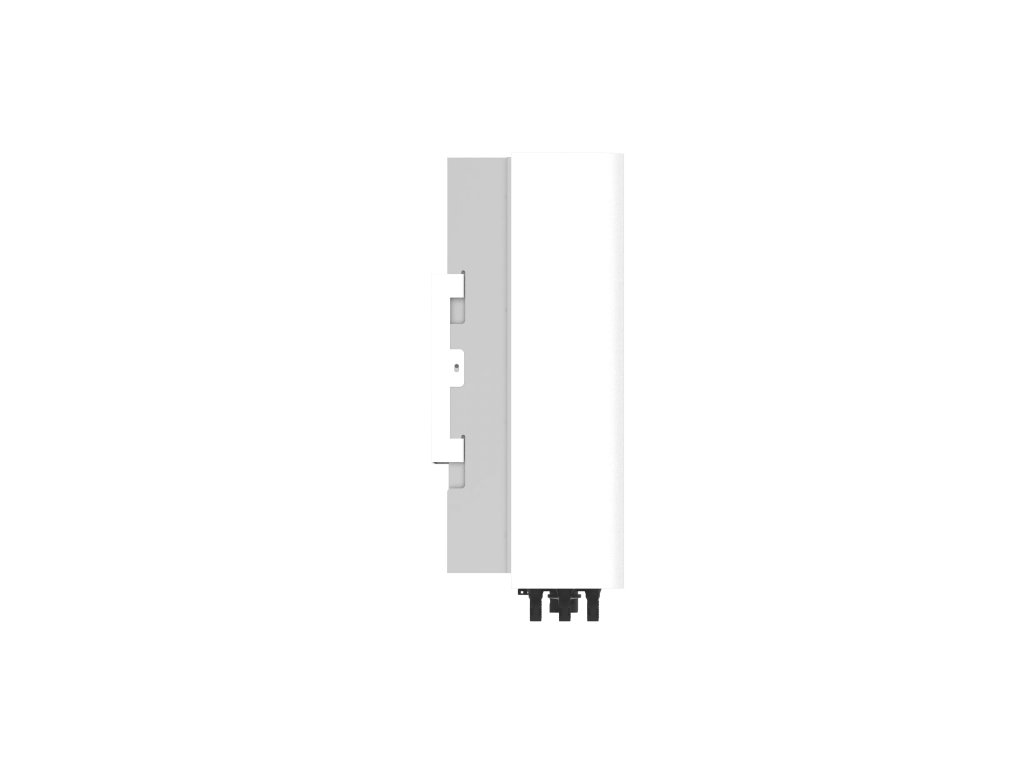

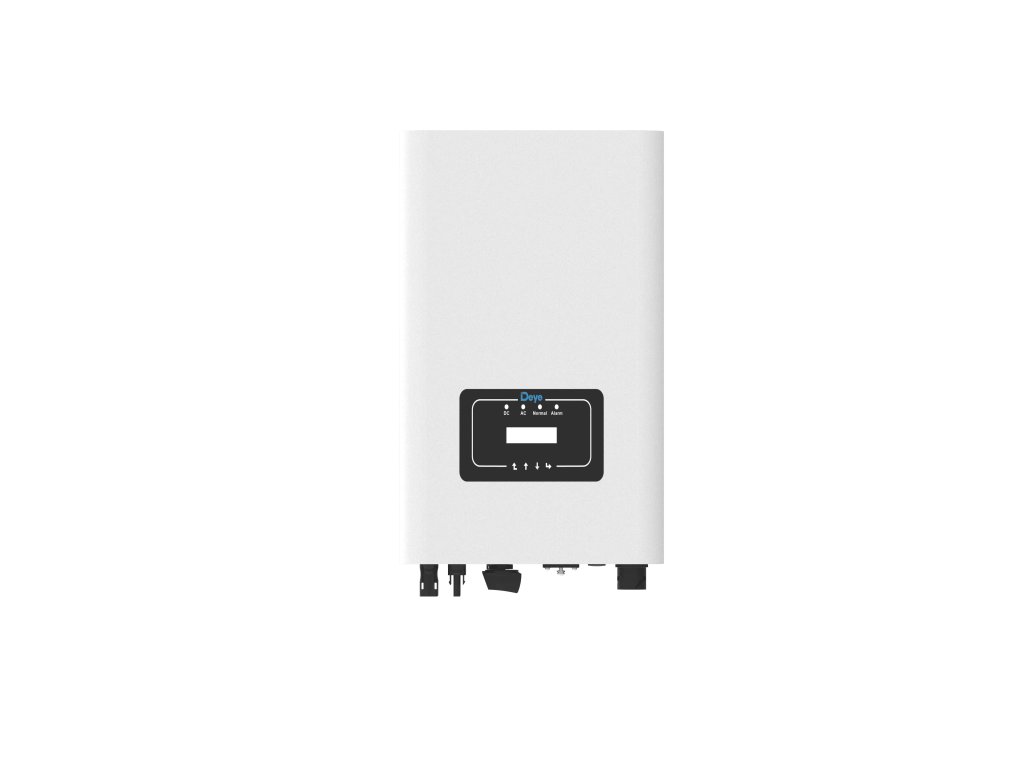

    Deye SUN-12K-G06P3-EU-AM2

    Code: DEYE-SUN-12K-G06P3-EU-AM2
    Not rated
    Deye SUN-12K-G06P3-EU-AM2
    €0 €0 incl. VAT
    On order

    Introducing the SUN-(3-15)K-G06P3-EU-AM2 advanced three-phase string inverter from Deye, which is designed to provide high efficiency and reliability for photovoltaic (PV) systems.This inverter achieves a maximum efficiency of up to 98.5% and includes advanced features such as a zero export function, virtual synchronous generator (VSG) capabilities and optional smart string monitoring.

    Detailed information

    Fair price
    Fair price
    We offer competitive prices with an emphasis on quality and transparency
    Fast delivery
    Fast delivery
    Products in stock, ships now. Backordered items ship in 5 days.
    Loyalty bonus
    Loyalty bonus
    Regular customers get discounts and bonuses for their loyalty.
    Expert turnkey installation
    Expert turnkey installation
    We provide end-to-end services with a quality guarantee.

    Product detailed description

    Key Features

    • High Efficiency: Achieve peak efficiency of up to 98.5%, ensuring maximum energy yield from your PV system.
    • Dual MPP trackers: Optimize energy production with dual maximum power point tracking (MPPT) inputs.
      Wide Output Voltage Range: Flexible voltage range supports a variety of installation scenarios.
    • Anti-PID: Optional feature to extend the life of your PV panels.
    • Zero export and VSG applications: Customizable power management settings to suit different grid requirements.
    • Smart Monitoring: Optional real-time string level monitoring feature to ensure peak performance.
    • Robust protection: Comprehensive protection features including DC over-current, AC over-current, AC over-voltage, short-circuit and thermal protection.

    Additional parameters

    Category: Inverters
    Weight: 11 kg
    Brand: DEYE
    Lenght: 178 mm
    Width: 283 mm
    Height: 463 mm
    Power: 12000 W
    Number of phases: 3
    Degree of protection (IP): IP65
    Communication: RS485, RS232
    Number of MPPT: 2
    String: 1 + 1
    Type: Network
    Voltage converters - DEYE - Model series: G06P3-EU-AM2 | 3 Phase | 2 MPPT
    Nominal voltage: 230 V, 400 V
    Operating voltage: 120 - 1000 VDC
    Maximum Output Power: 13200 VA
