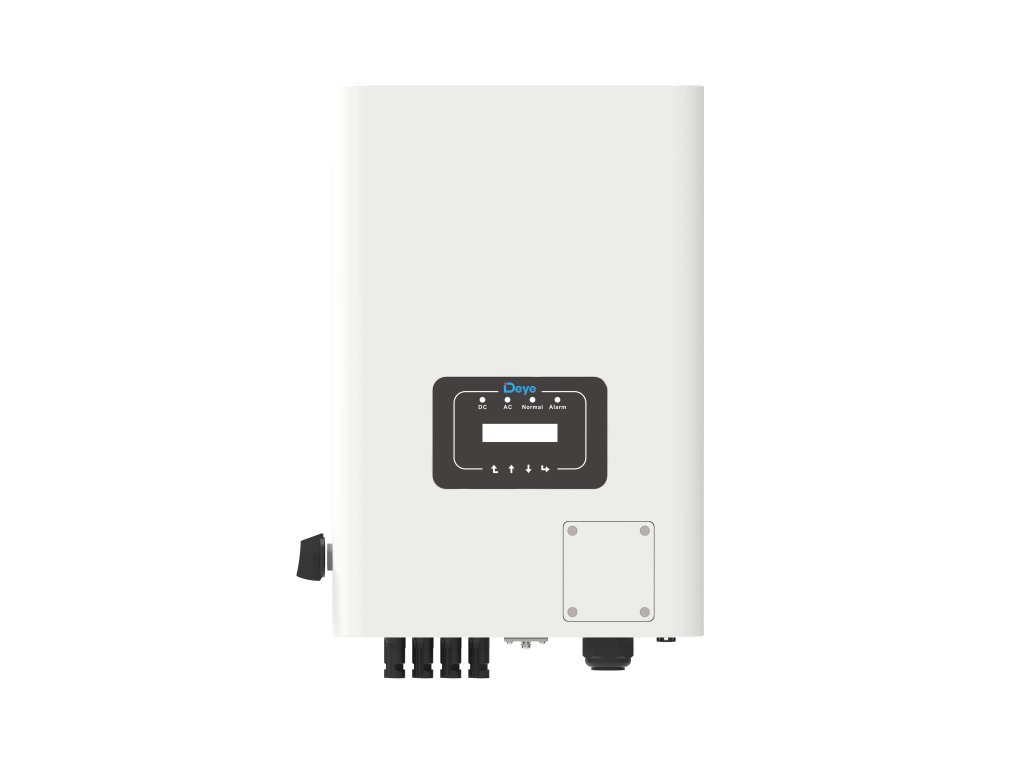

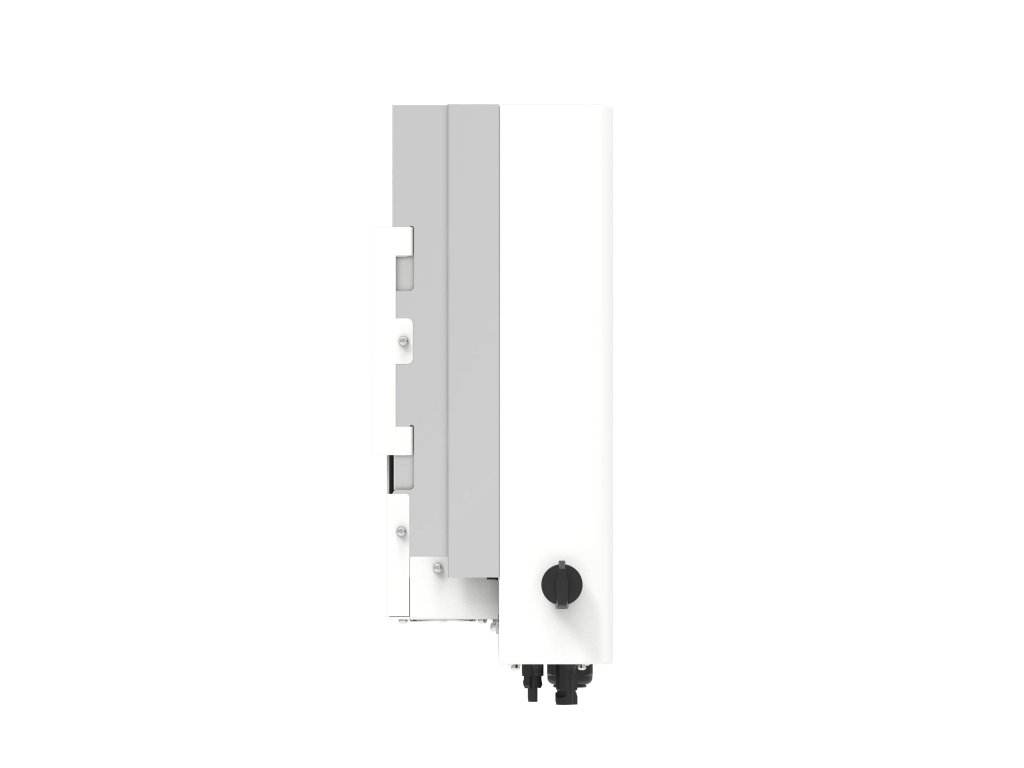

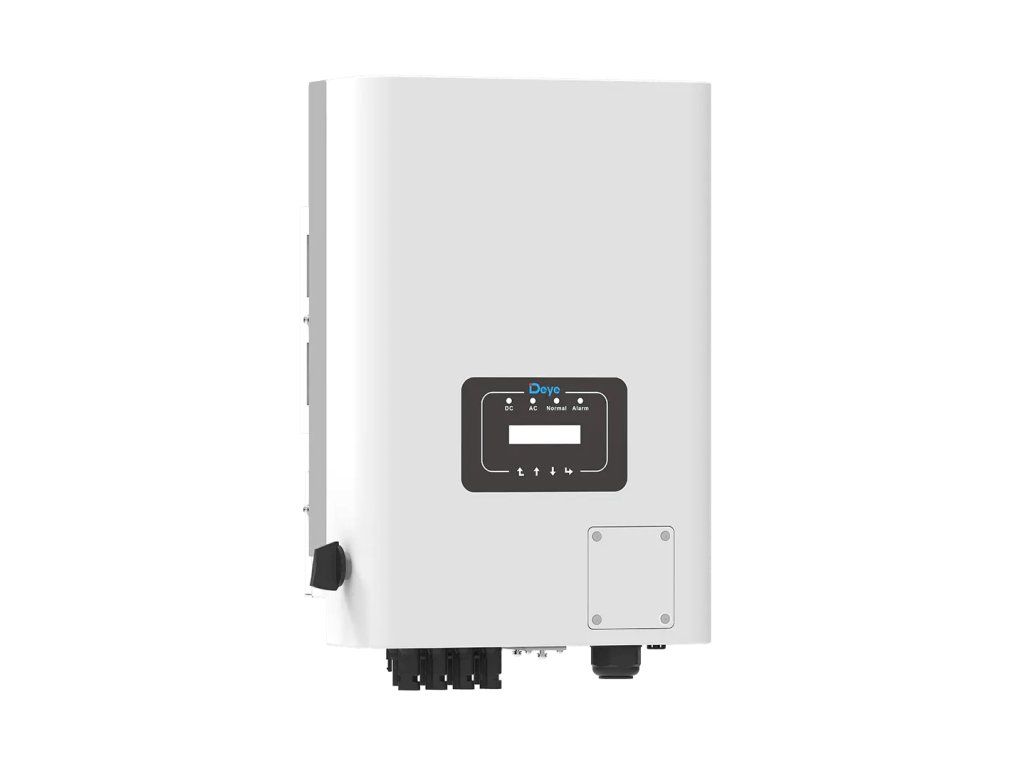

Deye SUN-18K-G05

Product detailed description

Key Features

• Maximized Efficiency: The Deye SUN-(18-25)K-G05 series achieves peak efficiencies of up to 98.6% and European efficiency of 98%, ensuring optimal energy conversion from solar panels and minimizing losses.
• MPPT Efficiency: With MPPT efficiency exceeding 99%, these inverters ensure that solar panels operate at their optimum power point, resulting in higher energy yields. A wide MPPT voltage range of 200-1000V offers flexibility in panel selection and configuration.
• Photovoltaic Input Specifications: These inverters support maximum PV input power within specific model ranges, have a starting voltage of 250V, and handle a nominal PV input voltage of 600V, ensuring compatibility with a variety of solar panel setups.
• AC Output Capacities: For example, the SUN-25K-G05 model provides a rated active output power of 25kW and a maximum apparent output power of up to 27.5kVA. They offer robust AC output options for various grid standards including 220/380V and 230/400V.
• Grid Compatibility: These inverters support 3L/N/PE grid connection with rated output voltages of 220/380V and 230/400V and allowable range of 0.85Un-1.1Un, ensuring seamless integration with various grid configurations.
• Comprehensive Protection: The series includes extensive protection functions such as DC reverse polarity protection, AC output overcurrent and overvoltage protection, and DC injection current regulation below 0.5%ln. It is also equipped with thermal protection, ground fault detection, and ground fault current monitoring for safe and reliable operation.
• Environmental Resistance and Noise Control: Designed to operate at temperatures from -25 to +60°C with derating above 45°C, these inverters operate effectively in a variety of climates. They maintain noise levels below 50 dB and have an IP65 dust and water resistance rating, ensuring durability and reliability.
• Advanced Monitoring and Connectivity: With multiple monitoring modes including GPRS, WIFI, Bluetooth, 4G and LAN, along with RS485/RS232 communication interfaces, these inverters enable easy and efficient system management and monitoring.
• Surge Protection: These inverters are equipped with TYPE II surge protection on both the DC and AC sides, increasing durability and reliability by protecting against electrical surges.
• Easy installation and maintenance: With a compact design (362 × 527 × 220 mm) and a weight of 20 kg (excluding connectors and brackets), these inverters are easy to handle and install.
• Warranty: The standard 5-year warranty underlines the reliability and durability of these inverters, providing investors and users with peace of mind.
