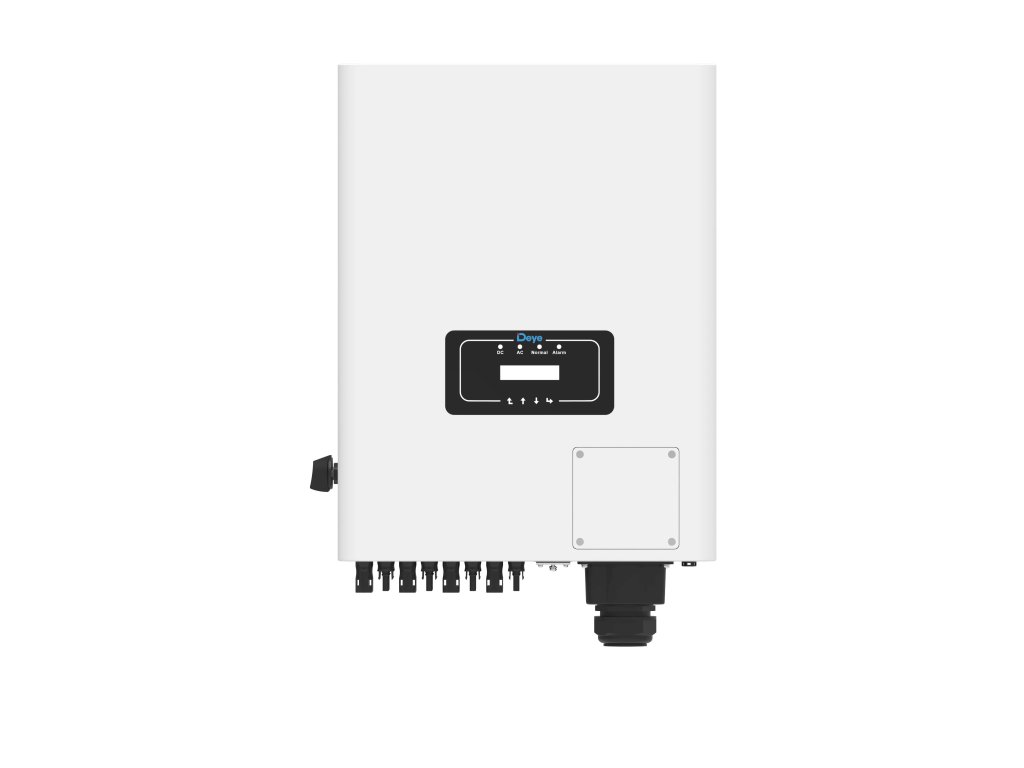

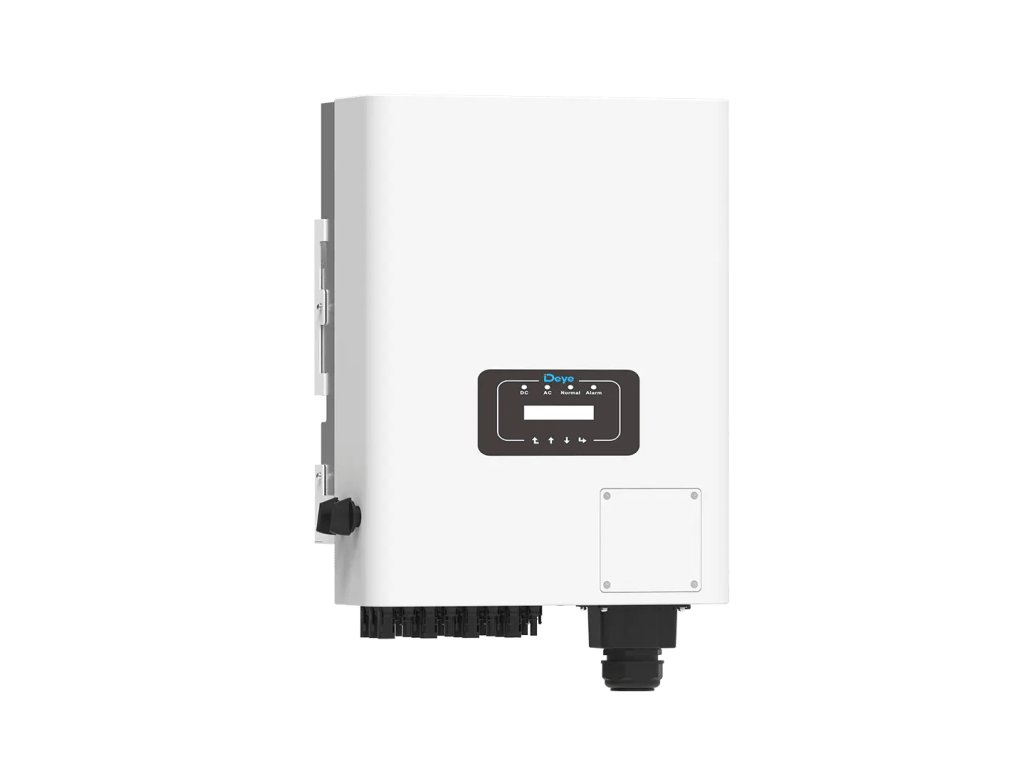

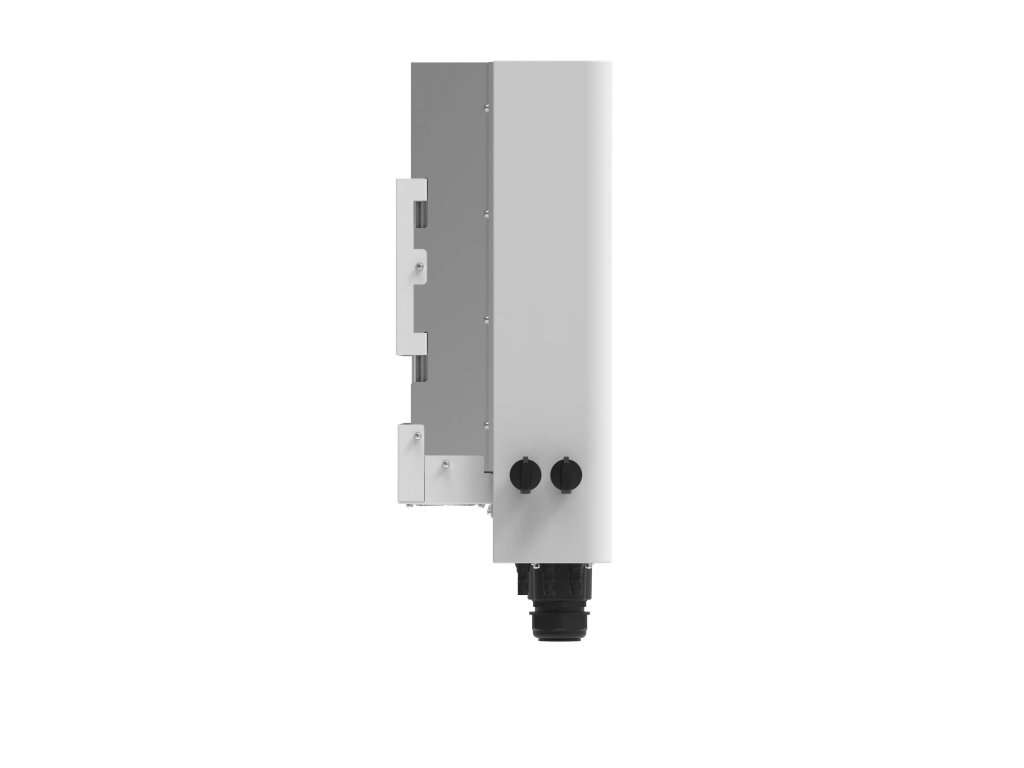

Deye SUN-30K-G04-LV
Code: DEYE-SUN-30K-G04-LV
Product detailed description
Key Features
- High Efficiency: Achieves a maximum efficiency of 98.7%, ensuring maximum power generation from solar panels.
- Flexible String Configurations: Features up to four independent MPPT trackers for flexible PV string configurations, optimizing power generation from different panel setups.
- Wide Output Voltage Range: Supports a wide output voltage range of 127V/220V and 133V/230V, compatible with various grid configurations.
- Anti-PID function (optional): Mitigates power degradation caused by potential degradation (PID), ensuring long-term system efficiency and performance.
- Zero Export and VSG Option
- Zero Export Application: Enables self-consumption of solar energy, reducing grid dependency and energy costs.
VSG Application: Acts as a virtual synchronous generator (VSG) to support and stabilize the grid.
Intelligent String Monitoring (optional): Provides detailed monitoring of each string for optimal system performance and early detection of problems. - Comprehensive Protection Functions: Includes protection against DC polarity reversal, AC output overcurrent/overvoltage, short circuit, thermal issues and more.
- Remote Monitoring and Control: Offers various communication options, such as GPRS, WIFI, Bluetooth, 4G and LAN (optional), for convenient remote monitoring and control.
Additional parameters
| Category: | Inverters |
|---|---|
| Weight: | 37.1 kg |
| Brand: | DEYE |
| Lenght: | 243 mm |
| Width: | 434 mm |
| Height: | 570 mm |
| Power: | 30000 W |
| Number of phases: | 3 |
| Degree of protection (IP): | IP65 |
| Communication: | RS485, Wi-Fi, LAN, 4G, Bluetooth, RS232, GPRS |
| Number of MPPT: | 4 |
| String: | 3 per MPPT |
| Type: | Network |
| Voltage converters - DEYE - Model series: | G04 | 3 Phase | 4 MPPT | Low Voltage |
| Nominal voltage: | 230 V, 133 V |
| Operating voltage: | 200 - 700 VDC |
| Maximum Output Power: | 30000 VA |
