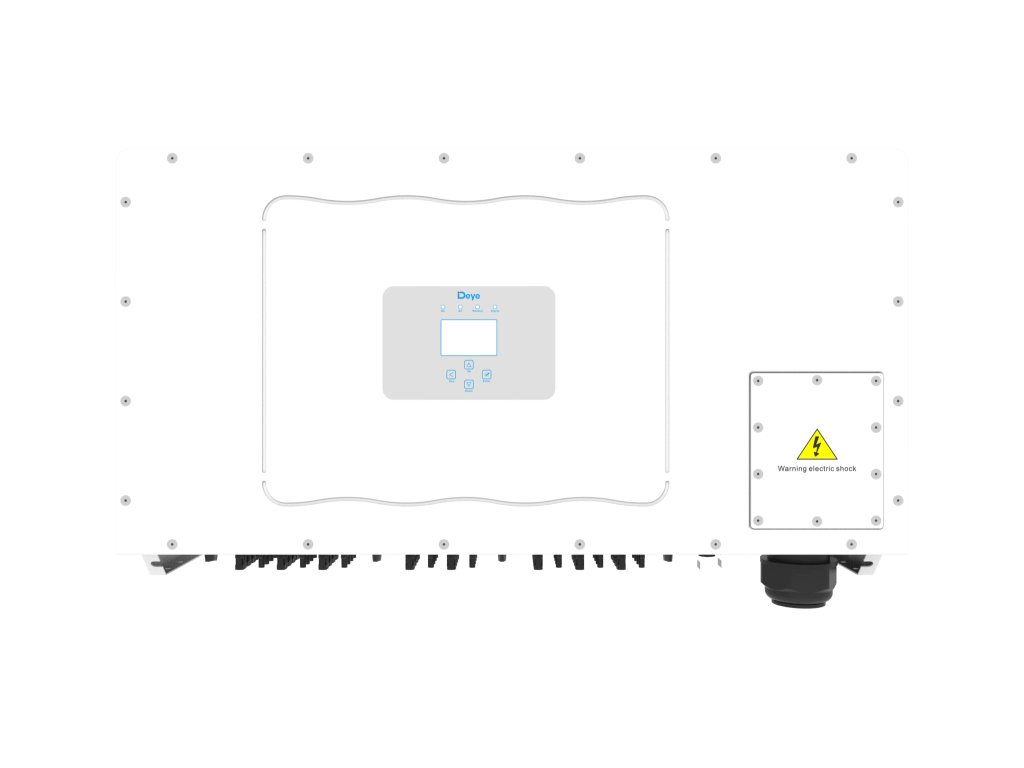

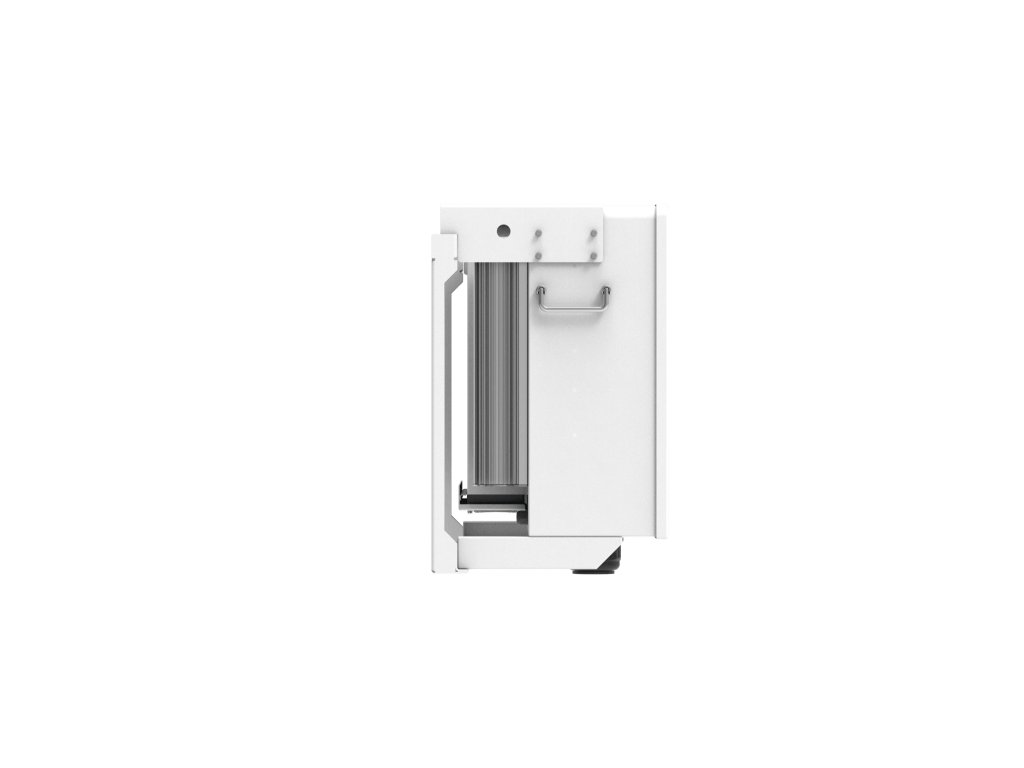

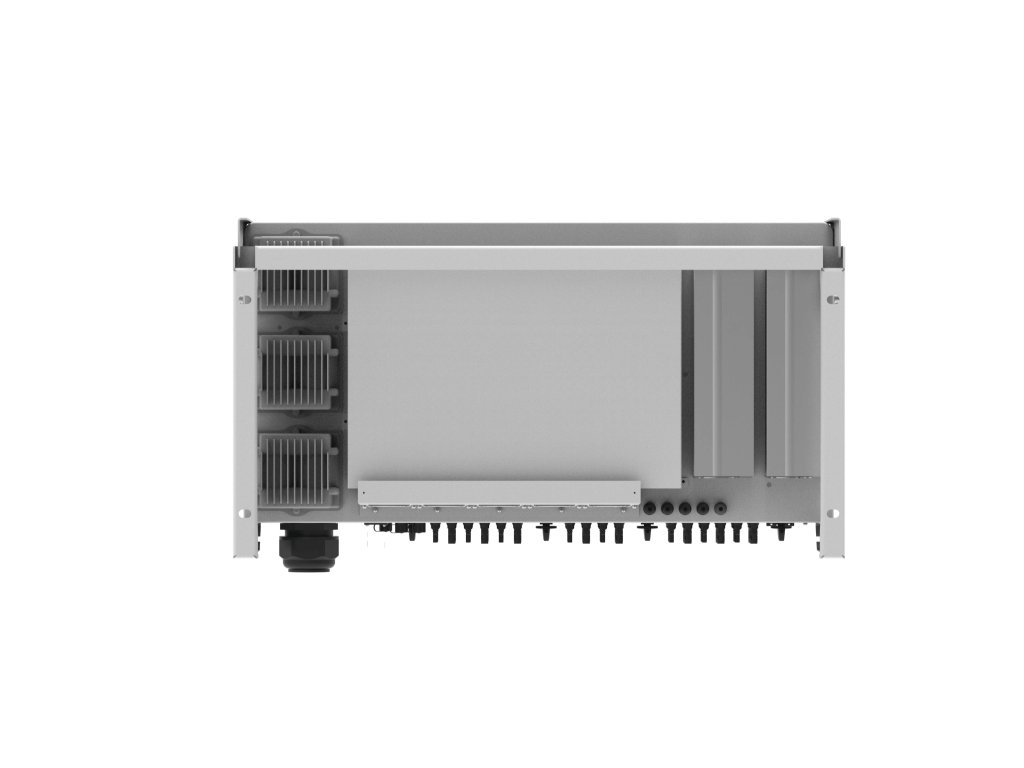

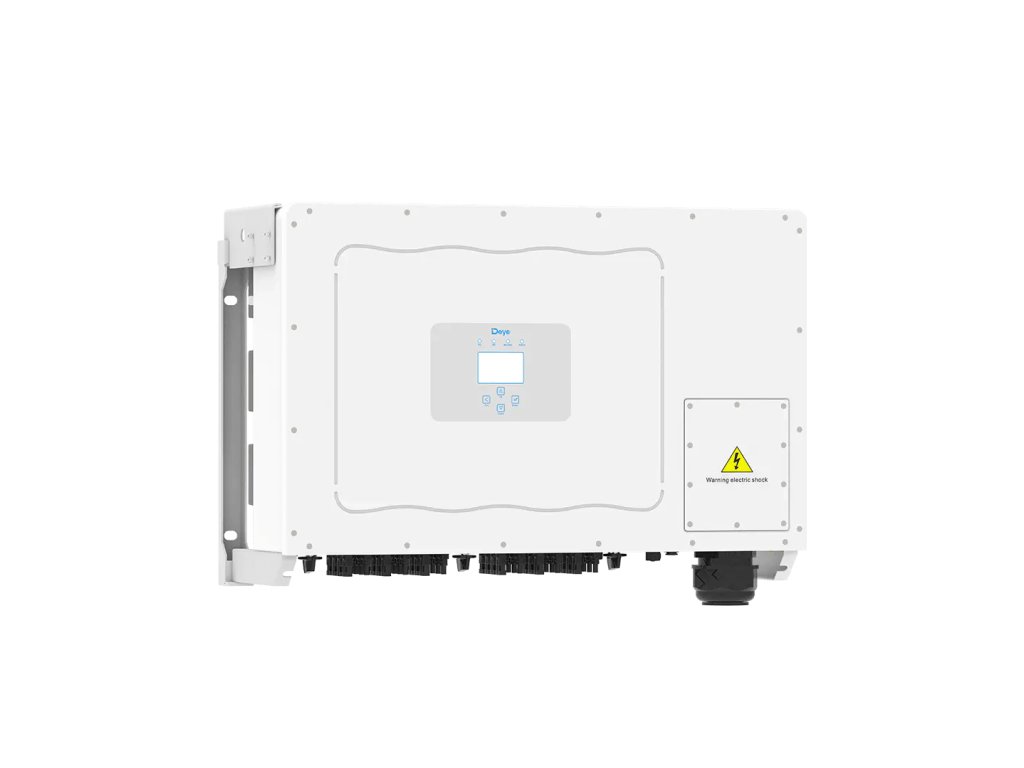

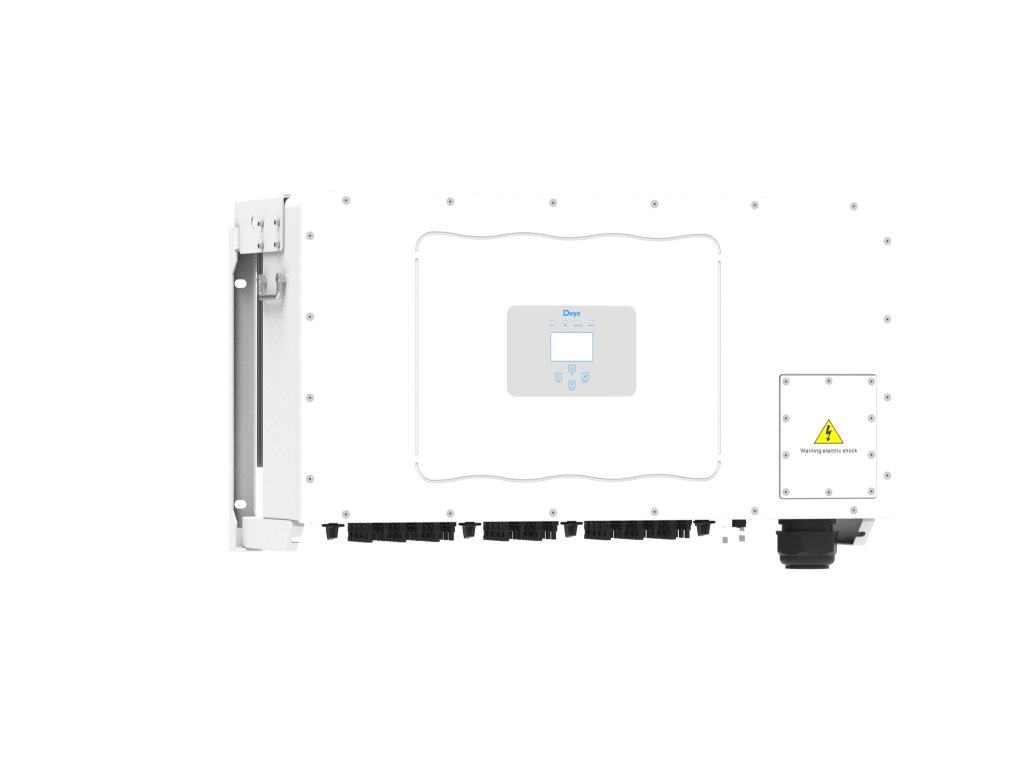

Deye SUN-70K-G01P3-EU-AM8-LV
Code: DEYE-SUN-70K-G01P3-EU-AM8-LV
Product detailed description
Key Features
High Efficiency: With a peak efficiency of up to 98.8%, the SUN-60/70/75K-G01P3-EU-AM8-LV maximizes energy conversion and ensures that you get the most out of your solar energy investment.
Versatile Use: This inverter is compatible with a wide range of photovoltaic systems, including zero-export systems, voltage source generator (VSG) and intelligent string monitoring function.
Advanced Technology: The inverter incorporates advanced features such as potential degradation (anti-PID) protection to ensure long-term performance and stability.
Flexible Output: SUN-60/70/75K-G01P3-EU-AM8-LV offers a wide range of output voltage (127V/220V, 133V/230V) and frequency (50/60Hz), making it suitable for various grid configurations.
Comprehensive Protection: The inverter includes a comprehensive set of protection functions, including DC reverse polarity protection, AC output overcurrent and overvoltage protection, AC output short circuit protection, thermal protection and more.
Advanced Monitoring: With optional communication interfaces such as GPRS/WIFI/Bluetooth/4G/LAN and RS485/RS232, the inverter provides real-time system monitoring and control.
Additional parameters
| Category: | Inverters |
|---|---|
| Weight: | 103 kg |
| Brand: | DEYE |
| Lenght: | 325.5 mm |
| Width: | 1006 mm |
| Height: | 516 mm |
| Power: | 70000 W |
| Number of phases: | 3 |
| Degree of protection (IP): | IP65 |
| Communication: | RS485, Wi-Fi, LAN, 4G, Bluetooth, RS232, GPRS |
| Number of MPPT: | 8 |
| String: | 4 Per MPPT |
| Type: | Network |
| Voltage converters - DEYE - Model series: | G01P3-EU-AM8-LV | 3 Phase | 8 MPPT | Low Voltage |
| Nominal voltage: | 230 V, 133 V |
| Operating voltage: | 200 - 700 VDC |
| Maximum Output Power: | 70000 VA |
-
Deye SUN-70K-G01P3-EU-AM8-LV Datasheet (EN) (322.3 kB)
-
Deye SUN-70K-G01P3-EU-AM8-LV Manual (EN) (8.1 MB)
