SolisStorage PrimePower 109kWh 50kW All-in-One ESS C5
Code: PRIMEPOWER-109KWH-50KW-NV-C5
Related products
PRIMEPOWER-109KWH-50KW-NV-MASTER-PRO
PRIMEPOWER-109KWH-50KW-NV-MASTER-PRO-C5
Product detailed description
Overview

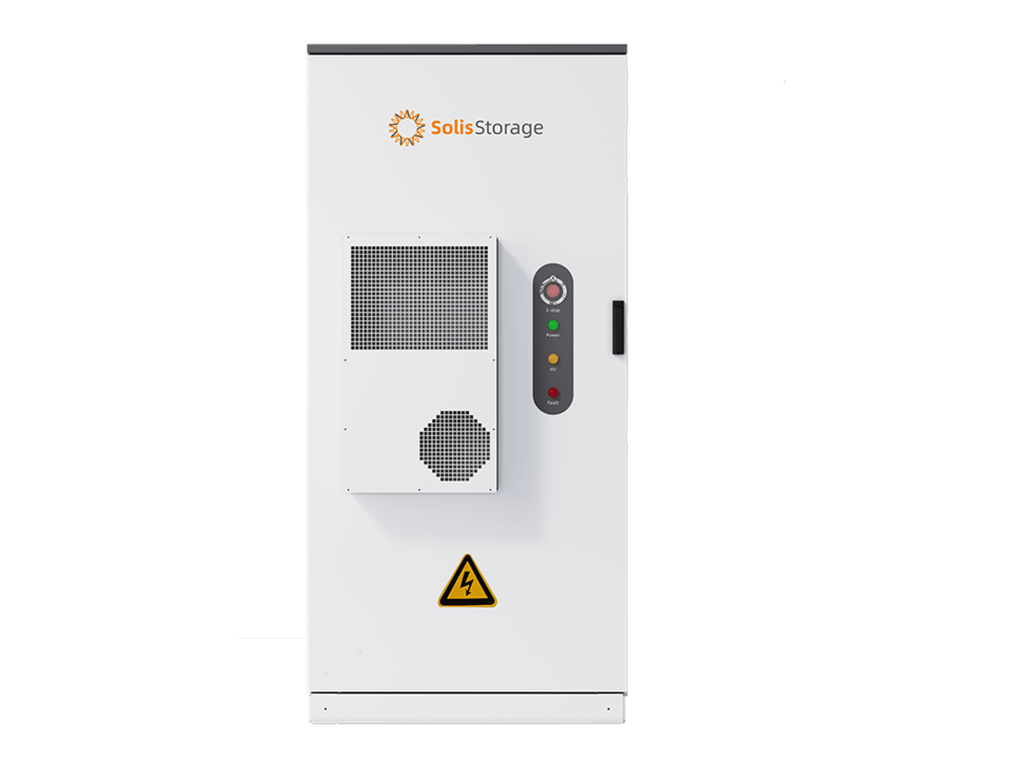

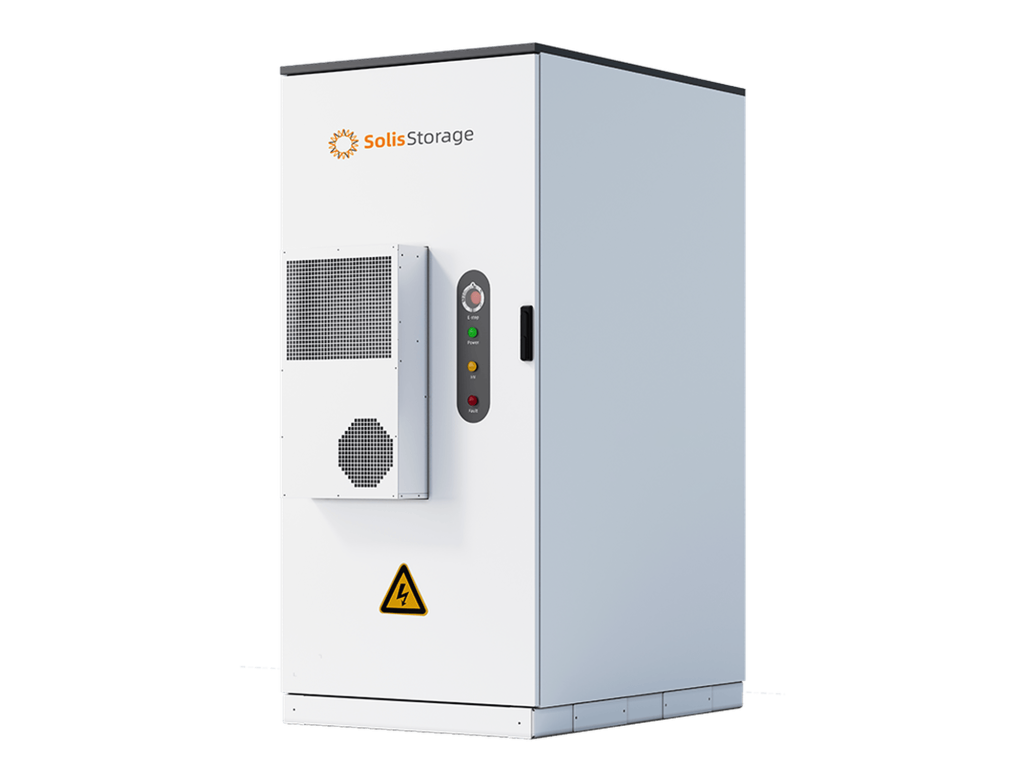

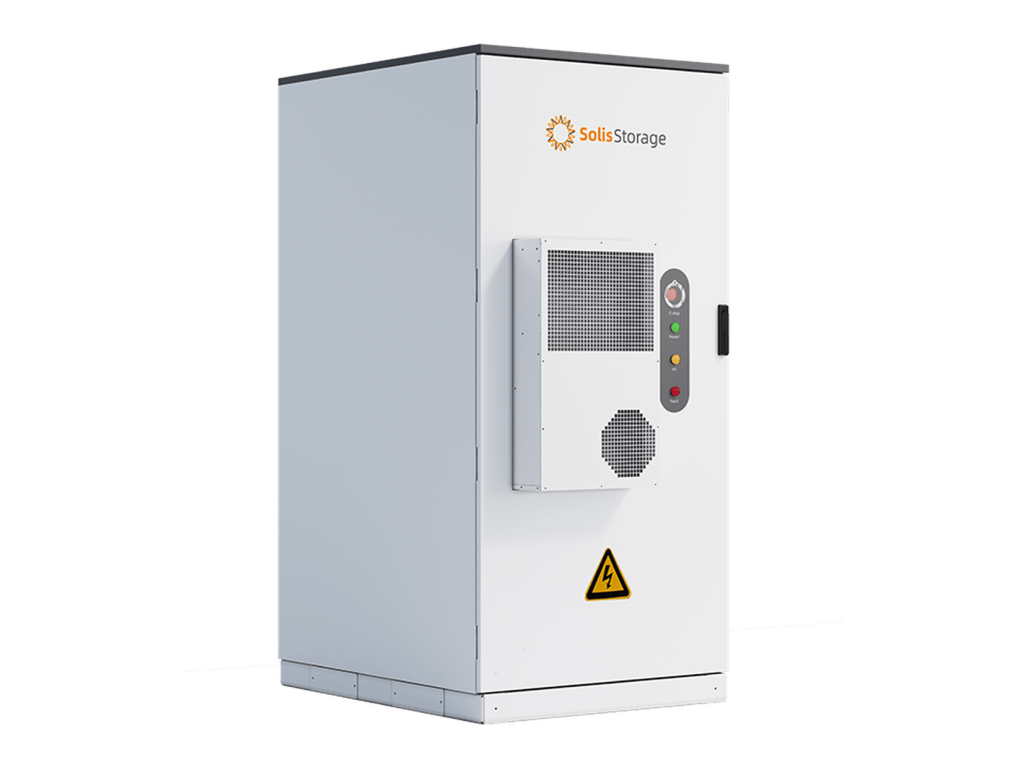

The SolisStorage PrimePower 109kWh is an all-in-one C&I energy storage cabinet built on 306 Ah LFP cells with a 10000-cycle design life. It integrates the Solis S6-EH3P50K-H(21A) 50 kW three-phase hybrid inverter for a true plug-and-play system. This Standard version + C5 includes all Standard safety items plus C5 anti-corrosion environmental protection for coastal and aggressive industrial atmospheres. Single cabinet / single inverter (not expandable).
Key Features
- 109.7 kWh rated / 98.7 kWh usable on 306 Ah LFP cells with 10000-cycle life
- Integrated 50 kW Solis hybrid inverter with 4 MPPTs and sub-10 ms backup switchover
- Standard version + C5: all Standard safety items plus C5 anti-corrosion environmental protection for coastal and aggressive industrial atmospheres
- Single cabinet / single inverter (not expandable)
- Industrial air-conditioned cabinet with natural-cooled packs
- Aerosol fire suppression, explosion relief valve and fire water inlet as standard
- SolisStorage Cloud remote monitoring and OTA updates
Technical Specifications
| Rated / usable capacity | 109.7 kWh / 98.7 kWh |
| Inverter | Integrated Solis S6-EH3P50K-H(21A): 50 kW / 50 kVA, max PV 100 kW, 4 MPPT, backup < 10 ms |
| Cell type | LFP 3.2 V / 306 Ah |
| Expansion | Single cabinet / single inverter (not expandable) |
| Battery configuration | 1P112S, 358.4 V rated (313.6-403.2 V), 7 x 15.67 kWh packs |
| Cell cycle life | 10000 cycles (25 ± 2 °C, 0.5P, 70% SOH) |
| Cooling | Industrial-grade air conditioning (cabinet), natural-cooled packs |
| Operating temperature | -25 to +55 °C |
| Noise | 70 dB(A) @ 1 m |
| Certifications | IEC 62619, IEC 62477, IEC 63056, IEC 62040, IEC 61000-6-2/4, UN38.3 |
| Warranty | 10 years battery cabinet |
| Fire safety | All standard safety items plus c5 anti-corrosion environmental protection for coastal and aggressive industrial atmospheres |
| Anti-corrosion class | C5 |
| Ingress protection | IP55 cabinet / IP66 inverter |
| Dimensions (W x H x D) | 1270 x 2070 x 1357 mm |
| Weight | 1393 kg (1320 kg cabinet + 73 kg inverter) |
Applications
- Commercial and industrial (C&I) energy storage
- Peak shaving and load shifting
- PV self-consumption optimisation
- Backup power for critical loads
- EV-charging support and grid services
Additional parameters
| Category: | Commercial Energy Storage |
|---|---|
| Weight: | 1393 kg |
| Brand: | Solis |
| Lenght: | 1357 mm |
| Width: | 1270 mm |
| Height: | 2070 mm |
| Degree of protection (IP): | IP55 |
-
SolisStorage PrimePower 109kWh-50kW Datasheet (PDF)
-
SolisStorage PrimePower 109kWh-50kW User Manual (PDF)
-
SolisStorage PrimePower 109kWh-50kW Quick Installation Manual (PDF)
