SolisStorage EverCore 120kWh 60kW Energy Storage System (ESS) PRO
Codice: 2607050008-027602150001
Prodotti correlati
Descrizione dettagliata del prodotto
Overview

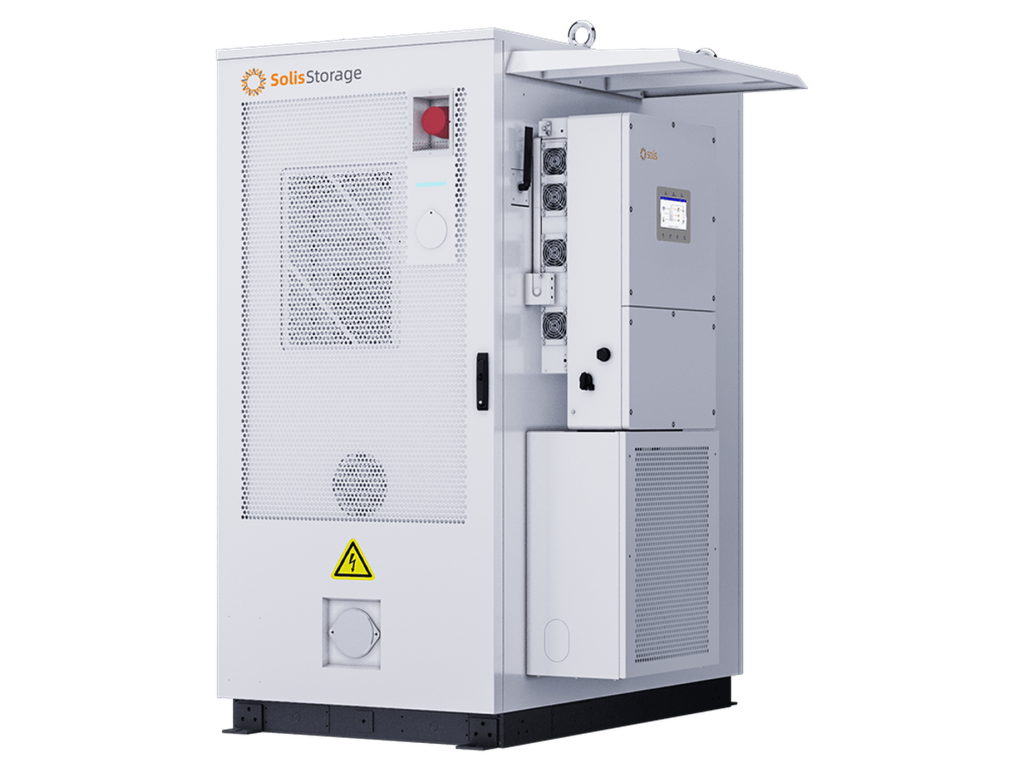

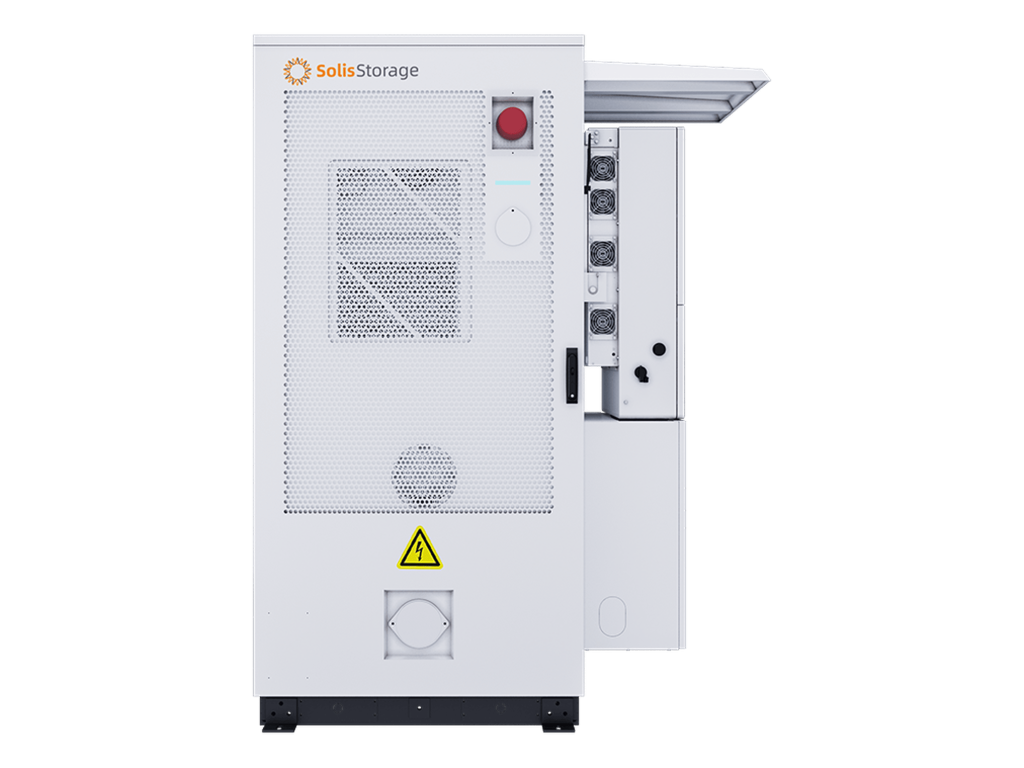

The SolisStorage EverCore 120kWh 60 kW is a complete C&I energy storage system combining the EverCore 120kWh LFP battery cabinet with the Solis S6-EH3P60K-H(21A) three-phase high-voltage hybrid inverter. This PRO version includes all Standard safety items plus a lithium-ion (combustible gas) detector, explosion relief board and explosion-proof exhaust, with combined sound and light alarm. With sub-10 ms on/off-grid switchover and parallel scalability to 1.25 MW / 15.66 MWh, it delivers reliable, serviceable storage for commercial and industrial sites.
Key Features
- Complete system: 120.6 kWh battery + 60 kW / 60 kVA Solis hybrid inverter
- 314 Ah EVE LFP cells, 8000-cycle design life, 0.5C rate
- PRO version: all Standard safety items plus a lithium-ion (combustible gas) detector, explosion relief board and explosion-proof exhaust, with combined sound and light alarm
- Seamless backup with under 10 ms on-grid/off-grid switchover
- Scalable: up to 10 systems in parallel (1.25 MW / 15.66 MWh)
- SolisStorage Cloud remote monitoring with OTA updates
- Zero heat transfer between inverter and cells with air-conditioned cabinet cooling
Technical Specifications
| System configuration | EverCore-120kWh battery cabinet + Solis S6-EH3P60K-H(21A) hybrid inverter |
| Rated / usable capacity | 120.6 kWh / 119.2 kWh |
| Inverter rated output | 60 kW / 60 kVA |
| Max usable PV input | 100 kW |
| MPPTs / strings | 4 / 8 |
| Cell type | LFP 3.2 V / 314 Ah (EVE) |
| Backup switchover | < 10 ms on-grid/off-grid |
| Scalability | Parallel up to 10 systems - up to 1.25 MW / 15.66 MWh |
| Fire safety | All standard safety items plus a lithium-ion (combustible gas) detector, explosion relief board and explosion-proof exhaust, with combined sound and light alarm |
| Ingress protection | IP55 cabinet / IP66 inverter |
| Anti-corrosion class | C4 cabinet / C5 inverter |
| Operating temperature | -25 to +55 °C |
| Dimensions incl. inverter (W x H x D) | 1250 x 2030 x 1540 mm |
| Weight | 1706 kg (1630 kg cabinet + 76 kg inverter) |
| Certifications | IEC 62619, IEC 62477, IEC 63056, IEC 62040, IEC 61000-6-2/4, UN38.3 |
| Warranty | 10 years battery cabinet / 5 years inverter |
Applications
- Commercial and industrial (C&I) energy storage
- Peak shaving and load shifting
- PV self-consumption optimisation
- Backup power for critical loads
- EV-charging support and grid services
Parametri aggiuntivi
| Categoria: | Batterie per fotovoltaico |
|---|---|
| Peso: | 1706 kg |
| Marca: | Solis, Solis Storage |
| Lunghezza: | 1540 mm |
| Larghezza: | 1250 mm |
| Altezza: | 2030 mm |
| Grado di protezione (IP): | IP55 |
| ? Applicazione: | Commerciale e industriale |
| ? Capacità utile: | 50-200 kWh |
| ? Tipo di prodotto: | Batteria con inverter |
| Serie di modelli: | Solis Storage EverCore |
