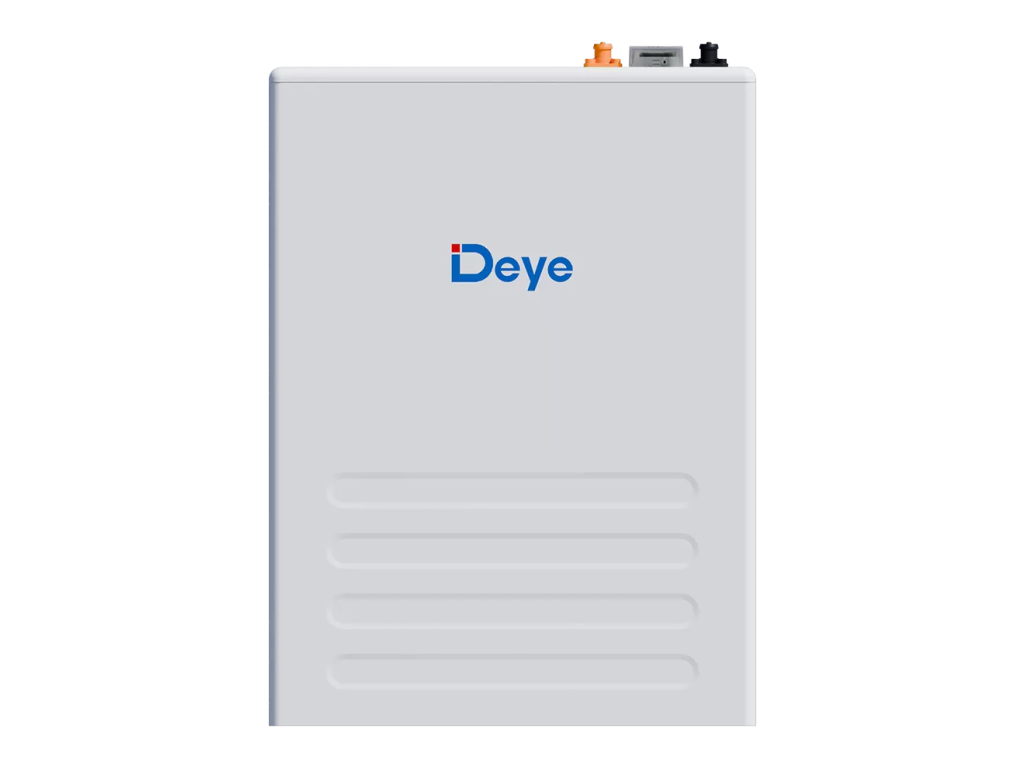

Deye SE-F5 Pro-C 5.12kWh LV Battery (LiFePO4)
Code: SE-F5-PRO-C
Product detailed description
Overview
The Deye SE-F5 Pro-C is a 5.12 kWh low-voltage (51.2 V) LiFePO4 home battery. Cobalt-free LFP cells deliver 6000+ cycles and scale up to 32 units in parallel. Compact module for residential solar storage.
Key Features
- 5.12 kWh (100 Ah) LFP battery, 51.2 V low-voltage
- Cobalt-free LiFePO4, 6000+ cycles
- Scalable up to 32 units in parallel (64 with CAN-Box)
- Wall / floor / stack mounting
- CAN / RS485 / Bluetooth communication
- 5 / 10-year warranty
Technical Specifications
| Nominal energy | 5.12 kWh (100 Ah) |
| Battery type / chemistry | Low-voltage LiFePO4 (LFP) |
| Nominal voltage | 51.2 V |
| Operating voltage | 44.8-57.6 V |
| Cycle life | 6000+ cycles |
| Communication | CAN 2.0 / RS485 / Bluetooth + App |
| Protection rating | IP21 (indoor) |
| Dimensions (W x H x D) | 370 x 548 x 140 mm |
| Weight | 41 kg |
| Warranty | 5 / 10 years |
Compatible Inverters
Works with Deye low-voltage (48 V) hybrid inverters (SG04LP3, SG05LP3, SG05LP1, SG02LP1 and similar). Always confirm the exact pairing with the supplier.
Applications
- Residential solar self-consumption and backup
- Capacity expansion by paralleling units
Additional parameters
| Category: | Batteries for photovoltaics |
|---|---|
| Weight: | 41 kg |
| Brand: | DEYE |
| Lenght: | 140 mm |
| Width: | 370 mm |
| Height: | 548 mm |
| Degree of protection (IP): | IP21 |
| Communication: | RS485, CAN, Bluetooth |
| Nominal voltage: | 51.2 V |
| Operating voltage: | 44.8-57.6 V |
| Battery type: | Low voltage |
| Usable energy: | 5,12 kWh |
