    Home / Photovoltaics / Inverters / Deye SUN-12K-SG02LP1-EU-AM3 12kW Hybrid LV 1-phase inverter

    Deye SUN-12K-SG02LP1-EU-AM3 12kW Hybrid LV 1-phase inverter

    Code: SUN-12K-SG02LP1-EU-AM3
    Not rated Rating details

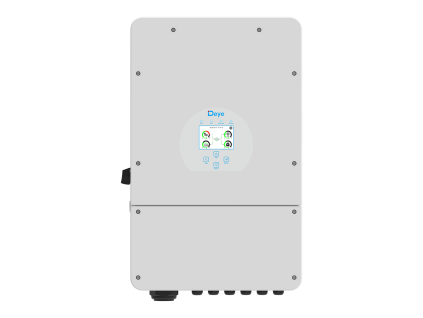

    Front view
    €1 241,46 €1 527 incl. VAT
    In external warehouse (4 pcs)
    Delivery to:
    19.06.2026
    12 kW single-phase hybrid inverter for 48 V low-voltage batteries. Three MPP trackers and high battery current, for larger single-phase residential and small commercial energy-storage systems.

    Detailed information

    Fair price
    Fair price
    We offer competitive prices with an emphasis on quality and transparency
    Fast delivery
    Fast delivery
    Products in stock, ships now. Backordered items ship in 5 days.
    Loyalty bonus
    Loyalty bonus
    Regular customers get discounts and bonuses for their loyalty.
    Expert turnkey installation
    Expert turnkey installation
    We provide end-to-end services with a quality guarantee.

    Related products

    Front view
    Deye SUN-10K-SG02LP1-EU-AM3 10kW Hybrid LV 1-phase inverter
    In external warehouse (10 pcs)
    €1 497,77 incl. VAT
    €1 217,70
    SUN-10K-SG02LP1-EU-AM3

    Product detailed description

    Overview

    The Deye SUN-12K-SG02LP1-EU-AM3 is a 12 kW single-phase hybrid inverter for 48 V low-voltage battery storage. With three MPP trackers, high battery current and parallel operation, it is built for larger single-phase homes and small businesses with energy storage.

    Key Features

    • 12 kW single-phase (230 V) hybrid inverter, 48 V low-voltage battery
    • 3 MPP trackers (2+2+2 strings), max. PV input voltage 500 V, MPPT range 150-425 V
    • Max. battery charge / discharge current 250 A
    • AC coupling to retrofit existing PV systems; diesel-generator input supported
    • Parallel operation for on-grid and off-grid; multiple batteries in parallel
    • 6 configurable charge/discharge time periods
    • Max. efficiency 97.6%, IP65 for indoor and outdoor installation

    Technical Specifications

    Rated AC output power12 000 W
    Max. AC apparent power13200 VA
    PhaseSingle-phase (L+N+PE), 230 V
    Max. PV input power19 200 W
    Max. PV input voltage500 V
    MPP trackers / strings3 / 2+2+2
    MPPT voltage range150-425 V
    Battery type / voltageLow-voltage Li-ion / lead-acid, 48 V
    Rated / max AC current (in/out)54.6/52.2 A
    Max. charge / discharge current250 A
    Max. efficiency97.6% (Euro 96.5%)
    CommunicationRS485 / RS232 / CAN; Wi-Fi / 4G / LAN (optional)
    Protection ratingIP65
    Operating temperature-40 to +60 °C
    Dimensions (W x H x D)420 x 670 x 233 mm
    Weight35.6 kg
    Warranty5 / 10 years

    Compatible Batteries

    Works with 48 V low-voltage battery systems. Compatible with Deye LV battery lines (SE-F, RW-F) and a wide range of third-party LV batteries on Deye's official Approved Battery List (Pylontech, BSLBATT, Wattsonic and others). See the attached LV Battery Compatibility List; always confirm the exact model with the supplier.

    Applications

    • Larger single-phase residential and small commercial self-consumption with storage
    • Backup power and off-grid operation
    • Retrofit AC coupling of existing PV installations

    Additional parameters

    Category: Solar inverters
    Weight: 35.6 kg
    Brand: DEYE
    Lenght: 233 mm
    Width: 420 mm
    Height: 670 mm
    Power: 12000 W
    Number of phases: 1
    Degree of protection (IP): IP65
    Communication: RS485, CAN, RS232
    Number of MPPT: 3
    String: 2 + 2 + 2
    Type: Hybrid
    Voltage converters - DEYE - Model series: SG02LP1-EU-AM3 | 1 Phase | 3 MPPT
    Nominal voltage: 230 V
    Operating voltage: 150-425 VDC
    Maximum Output Power: 13200 VA

    Product rating

    Be the first who will post an article to this item!

    Only registered users may submit ratings. Please log in or sign up.

    Discussion

    Be the first who will post an article to this item!

    Do not fill out this field:

    Deye (Ningbo Deye Technology Co., Ltd.) is a globally recognized manufacturer of solar inverters and energy storage solutions, serving residential, commercial, and utility-scale markets in over 100 countries. The company's extensive product range includes hybrid inverters, on-grid and off-grid inverters, microinverters, and integrated battery systems, all engineered for maximum efficiency and reliability.

    With a strong commitment to intelligent, energy-efficient technology, Deye has earned its reputation as one of the fastest-growing inverter brands worldwide. Their products combine advanced MPPT algorithms, user-friendly monitoring, and robust build quality, making them a trusted choice for solar professionals and homeowners alike.

    Manufacturing company : Ningbo Deye Inverter Technology Co., Ltd.
    Address : No. 26-30, South Yongjiang Road, Beilun, Ningbo, Zhejiang 315806, China
    E-mail : [email protected]
    EU representative of the manufacturer : Deye Neue Energie GmbH
    Address of the EU representative : Mosaikweg 28, 53489 Sinzig, Germany
    Email of the EU representative : [email protected]
