    Deye SUN-5K-SG04LP3-EU 5kW Hybrid LV 3-phase inverter

    Code: SUN-5K-SG04LP3-EU
    Not rated Rating details

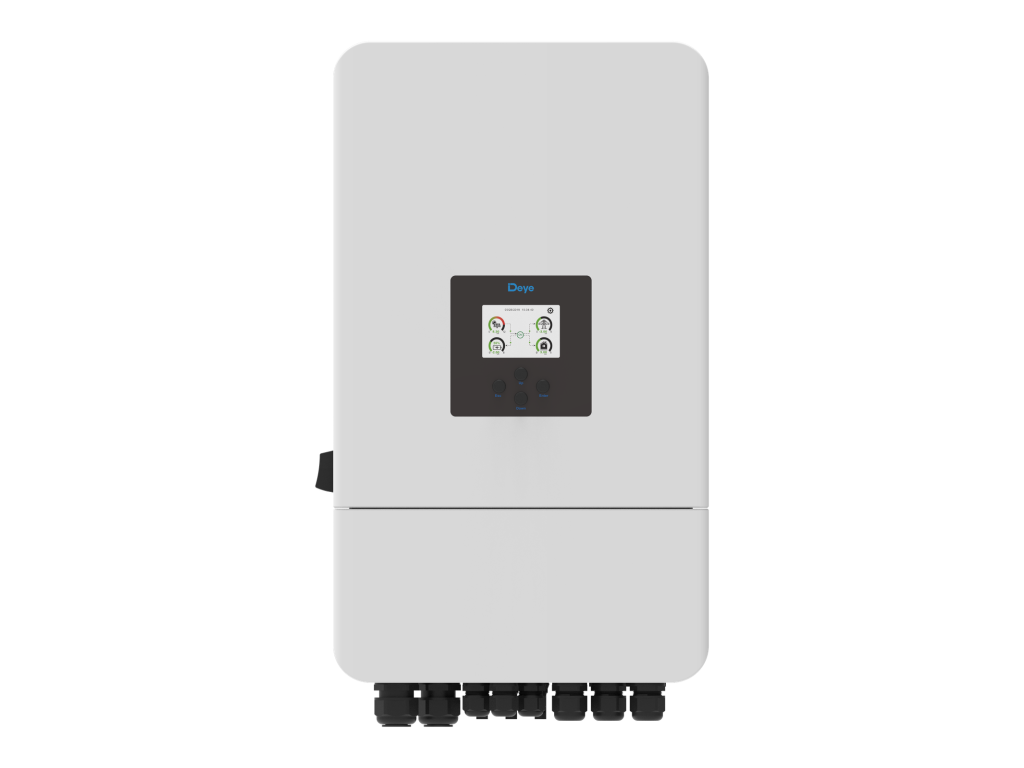

    Front view
    €1 633,50 €2 009,21 incl. VAT
    In external warehouse (8 pcs)
    Delivery to:
    19.06.2026
    5 kW three-phase hybrid inverter for 48 V low-voltage batteries. Two MPP trackers, for residential and small commercial energy-storage systems.

    Detailed information

    Fair price
    Fair price
    We offer competitive prices with an emphasis on quality and transparency
    Fast delivery
    Fast delivery
    Products in stock, ships now. Backordered items ship in 5 days.
    Loyalty bonus
    Loyalty bonus
    Regular customers get discounts and bonuses for their loyalty.
    Expert turnkey installation
    Expert turnkey installation
    We provide end-to-end services with a quality guarantee.

    Related products

    Front view
    Deye SUN-6K-SG04LP3-EU 6kW Hybrid LV 3-phase inverter
    On request
    €0 incl. VAT
    €0
    SUN-6K-SG04LP3-EU

    Product detailed description

    Overview

    The Deye SUN-5K-SG04LP3-EU is a 5 kW three-phase hybrid inverter for 48 V low-voltage battery storage. With two MPP trackers and flexible battery charge/discharge scheduling, it suits homes, farms and small businesses adding solar with storage.

    Key Features

    • 5 kW three-phase (400 V) hybrid inverter, 48 V low-voltage battery
    • 2 MPP trackers (1+1 strings), max. PV input voltage 800 V, MPPT range 200-650 V
    • Max. battery charge / discharge current 120 A
    • AC coupling to retrofit existing PV; diesel-generator input supported
    • Parallel operation for on-grid and off-grid; multiple batteries in parallel
    • 6 configurable charge/discharge time periods
    • Max. efficiency 97.6%, IP65 for indoor and outdoor installation

    Technical Specifications

    Rated AC output power5 000 W
    Max. AC apparent power5500 VA
    PhaseThree-phase (3L+N+PE), 400 V
    Max. PV input power7 500 W
    Max. PV input voltage800 V
    MPP trackers / strings2 / 1+1
    MPPT voltage range200-650 V
    Battery type / voltageLow-voltage Li-ion / lead-acid, 48 V
    Rated / max AC current (in/out)7.6/7.2 A / 8.4/8 A
    Max. charge / discharge current120 A
    Max. efficiency97.6% (Euro 97.0%)
    CommunicationRS485 / RS232 / CAN; Wi-Fi (optional)
    Protection ratingIP65
    Operating temperature-40 to +60 °C
    Dimensions (W x H x D)422 x 658 x 254 mm
    Weight38 kg
    Warranty5 / 10 years

    Compatible Batteries

    Works with 48 V low-voltage battery systems. Compatible with Deye LV battery lines (SE-F, RW-F) and a wide range of third-party LV batteries on Deye's official Approved Battery List (Pylontech, BSLBATT, Wattsonic and others). See the attached LV Battery Compatibility List; always confirm the exact model with the supplier.

    Applications

    • Residential, agricultural and small commercial self-consumption with storage
    • Backup power and off-grid operation
    • Retrofit AC coupling of existing PV installations

    Additional parameters

    Category: Solar inverters
    Weight: 38 kg
    Brand: DEYE
    Lenght: 254 mm
    Width: 422 mm
    Height: 658 mm
    Power: 5000 W
    Number of phases: 3
    Degree of protection (IP): IP65
    Communication: RS485, CAN, RS232
    Number of MPPT: 2
    String: 1 + 1
    Type: Hybrid
    Voltage converters - DEYE - Model series: SG04LP3-EU | 3 Phase | 2 MPPT
    Nominal voltage: 400 V
    Operating voltage: 200-650 VDC
    Maximum Output Power: 5500 VA
