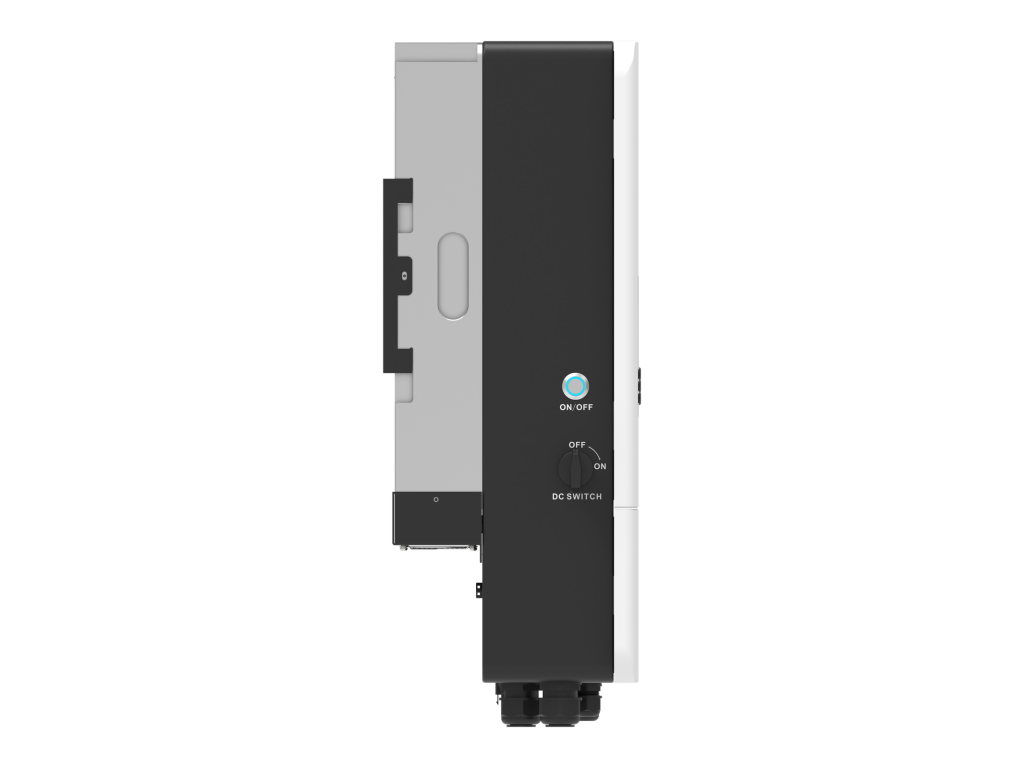

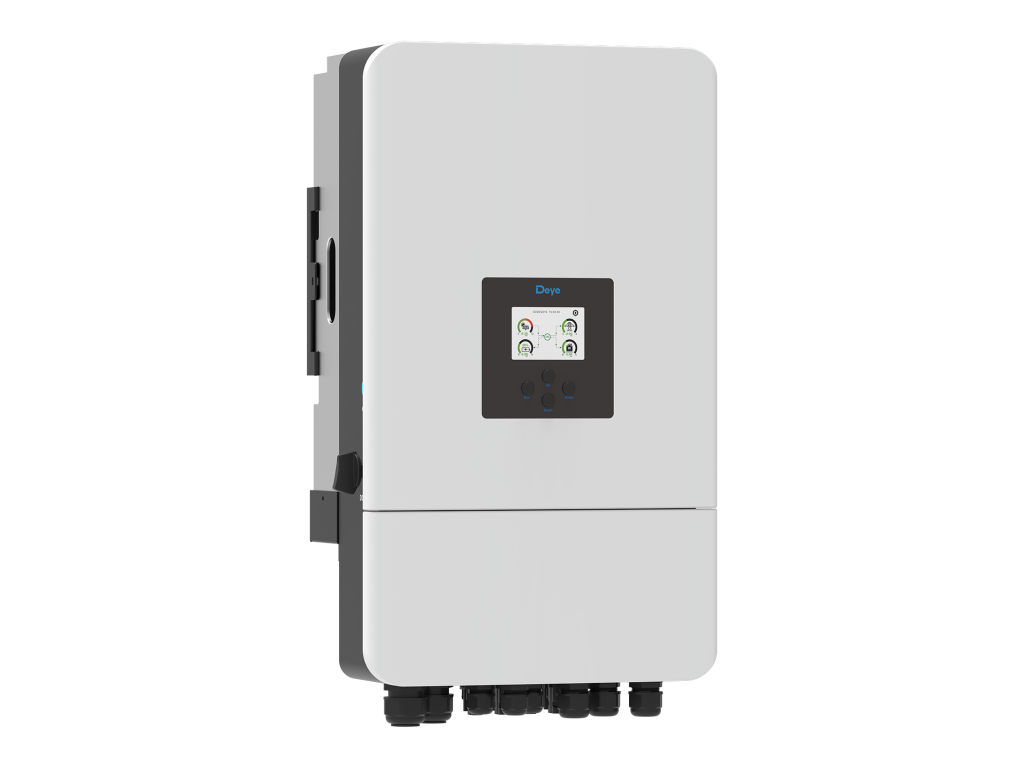

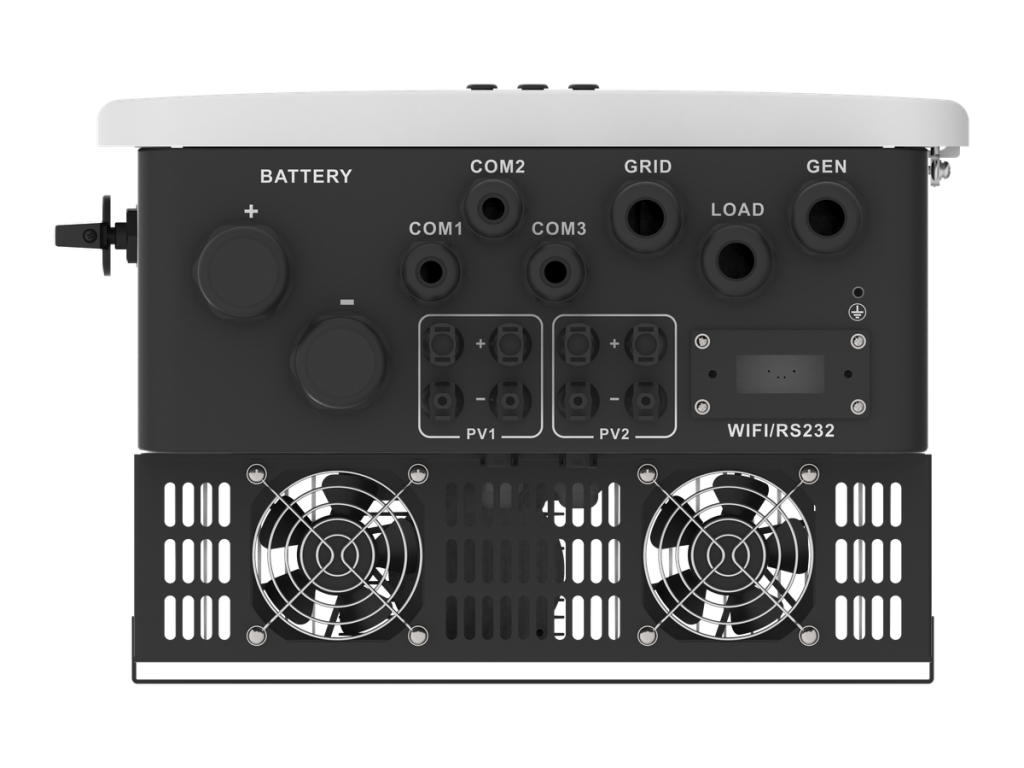

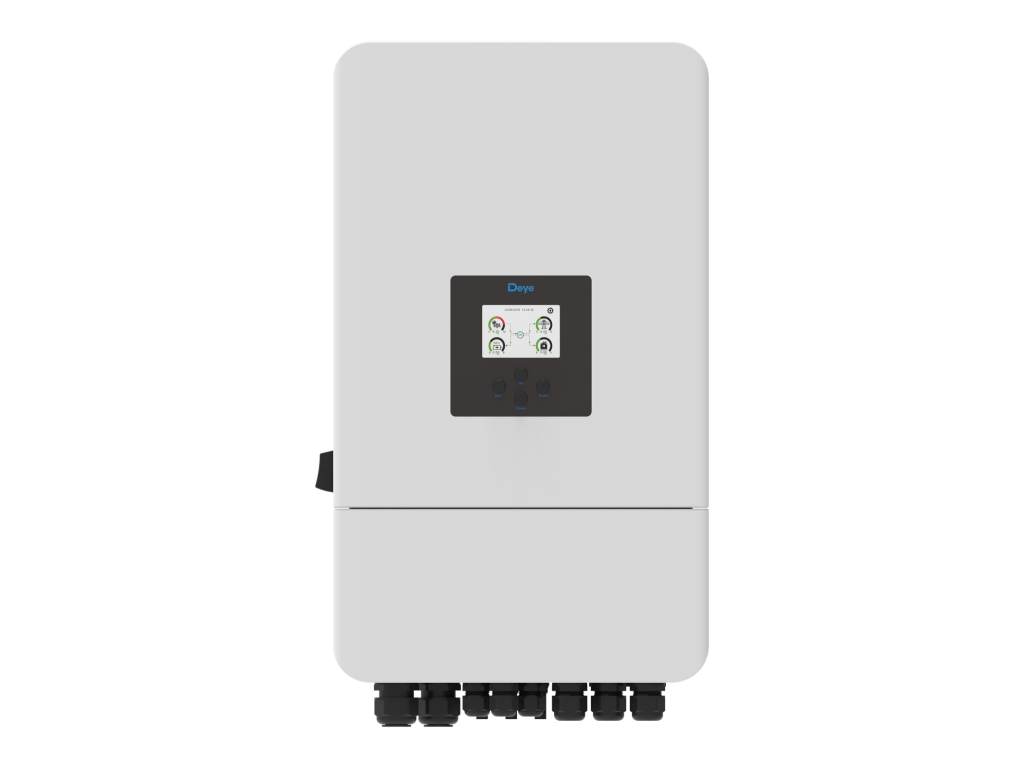

Deye SUN-6K-SG05LP3-EU-SM2 6kW Hybrid LV 3-phase inverter
Code: SUN-6K-SG05LP3-EU-SM2
Related products
Product detailed description
Overview
The Deye SUN-6K-SG05LP3-EU-SM2 is a 6 kW three-phase hybrid inverter for 48 V low-voltage battery storage. With two MPP trackers, a transformer-isolated battery design, 100% unbalanced output and parallel operation of up to 10 units, it suits homes, farms and small commercial PV-plus-storage systems.
Key Features
- 6 kW three-phase hybrid inverter, 48 V low-voltage battery
- 2 MPP trackers, max. PV input voltage 800 V, MPPT range 200-650 V
- Max. battery charge / discharge current 240 A
- 100% unbalanced output (up to 50% rated power per phase); AC coupling to retrofit existing PV
- Up to 10 units in parallel for on-grid and off-grid operation; multiple batteries in parallel
- 6 configurable charge/discharge time periods; diesel-generator input supported
- Max. efficiency 97.6%, IP65 for indoor and outdoor installation
Technical Specifications
| Rated AC output power | 6 000 W |
| Max. AC apparent power | 6600 VA |
| Phase | Three-phase (3L+N+PE), 400 V |
| Max. PV input power | 9 600 W |
| Max. PV input voltage | 800 V |
| MPP trackers / strings | 2 / 1+1 |
| MPPT voltage range | 200-650 V |
| Battery type / voltage | Low-voltage Li-ion, 48 V |
| Rated / max AC current | 8.7 A / 9.6 A |
| Max. charge / discharge current | 240 A |
| Max. efficiency | 97.6% (Euro 97.0%) |
| Communication | Wi-Fi / RS485 / CAN |
| Protection rating | IP65 |
| Operating temperature | -40 to +60 °C |
| Dimensions (W x H x D) | 386 x 660 x 250 mm |
| Weight | 35.2 kg |
| Warranty | 5 / 10 years |
Compatible Batteries
Works with 48 V low-voltage battery systems. Compatible with Deye LV battery lines (SE-F, RW-F) and a wide range of third-party LV batteries on Deye's official Approved Battery List (Pylontech, BSLBATT, Wattsonic and others). See the attached LV Battery Compatibility List; always confirm the exact model with the supplier.
Applications
- Residential, agricultural and small commercial self-consumption with storage
- Backup power and off-grid operation (single or parallel up to 10 units)
- Retrofit AC coupling of existing PV installations
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 35.2 kg |
| Brand: | DEYE |
| Lenght: | 250 mm |
| Width: | 386 mm |
| Height: | 660 mm |
| Power: | 6000 W |
| Number of phases: | 3 |
| Degree of protection (IP): | IP65 |
| Communication: | RS485, CAN, Wi-Fi |
| Number of MPPT: | 2 |
| String: | 1 + 1 |
| Type: | Hybrid |
| Voltage converters - DEYE - Model series: | SG05LP3-EU-SM2 | 3 Phase | 2 MPPT |
| Nominal voltage: | 400 V |
| Operating voltage: | 200-650 VDC |
| Maximum Output Power: | 6600 VA |
-
Deye SG05LP3-EU-SM2 Hybrid Inverter Datasheet (PDF)
-
Deye SG05LP3-EU-SM2 Hybrid Inverter User Manual (PDF)
-
Deye LV Battery Compatibility List (PDF)
