Deye SUN-MPPT-L01-EU-AM8 MPPT Module (200 kW)
Code: SUN-MPPT-L01-EU-AM8
Related products
Product detailed description
Overview
Deye SUN-MPPT-L01-EU-AM8 - 200 kW MPPT module with 8 MPP trackers for the Deye BOS-B 100 kW-2.5 MW C&I energy storage solution. IP65, >99% efficiency.
Key Features
- 200 kW DC/DC MPPT module with 8 independent MPP trackers
- MPPT range 180-850 V, >99% efficiency, >99.9% MPPT efficiency
- Built-in DC switch and Type II surge protection
- Modular building block of the Deye BOS-B C&I ESS solution
- IP65, intelligent air cooling, OVC II
Technical Specifications
| Max. PV input power | 200 kW |
| No. of MPP trackers | 8 |
| MPPT voltage range | 180-850 V |
| Full-load MPPT range | 450-850 V |
| Rated PV input voltage | 600 V |
| Start-up voltage | 200 V |
| Max. operating PV current | 8 x 40 A |
| Max. short-circuit current | 8 x 60 A |
| Max. efficiency | >99% |
| MPPT efficiency | >99.9% |
| DC switch / surge protection | Yes / Type II |
| Protection rating | IP65 |
| Overvoltage category | OVC II |
| Cooling | Intelligent air cooling |
| Dimensions (W x H x D) | 543 x 198 x 700 mm |
| Weight | 41.75 kg |
| Certification | IEC/EN 62109-1 |

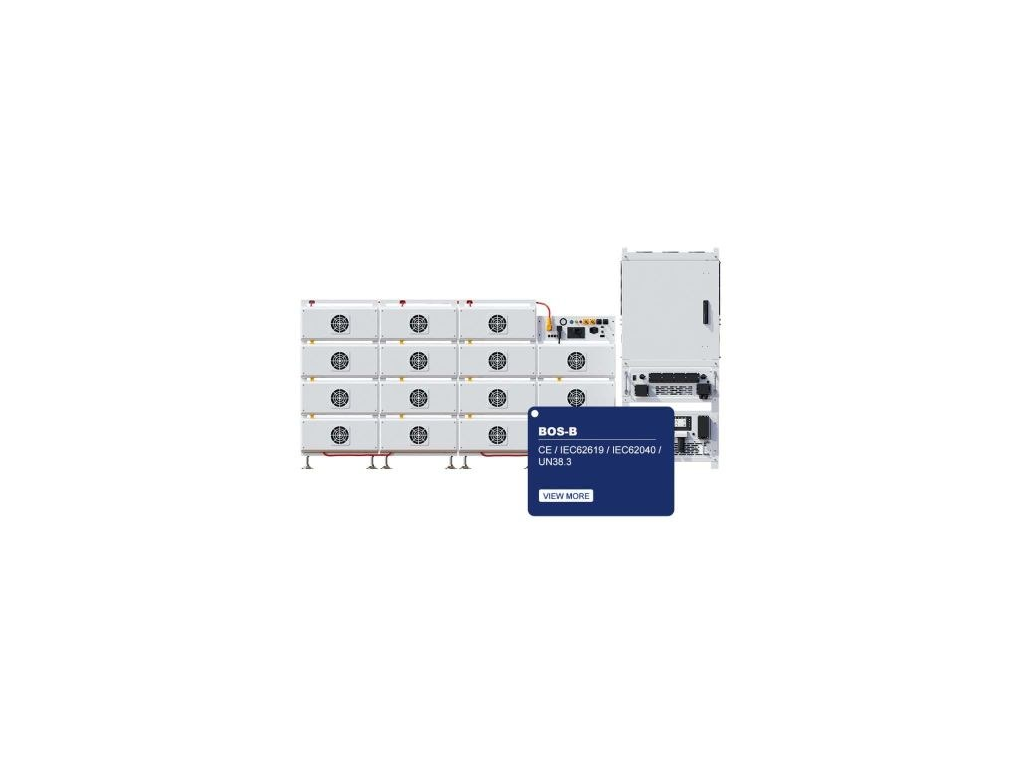

System Compatibility
Designed for the Deye BOS-B 100 kW-2.5 MW Commercial & Industrial ESS solution, alongside the SUN-100K/125K-PCSL01HP3 PCS modules and BOS-B battery cabinets. Always confirm the exact configuration with the supplier.
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 41.75 kg |
| Brand: | DEYE |
| Lenght: | 700 mm |
| Width: | 543 mm |
| Height: | 198 mm |
| Power: | 200000 W |
| Degree of protection (IP): | IP65 |
| Number of MPPT: | 8 |
