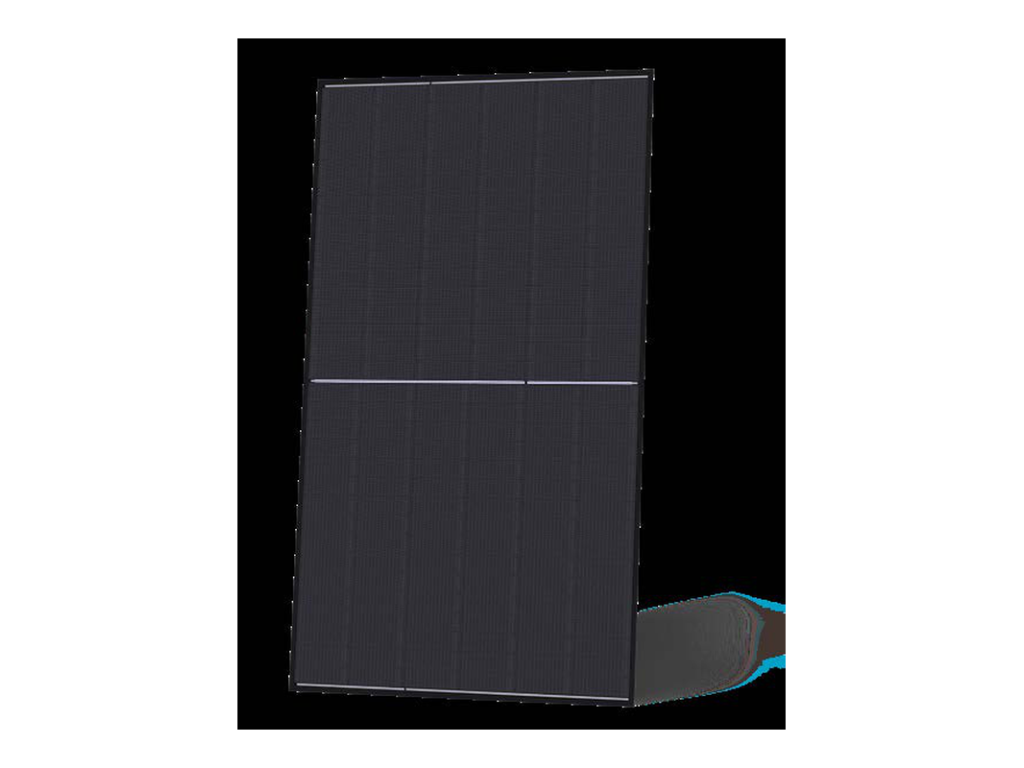

Jinko Tiger Neo III 465 Wp N-type bifacial dual-glass solar panel JKM465N-48QL6-BDV
Code: JKM465N-48QL6-BDV
Product detailed description
Overview
The Jinko Solar Tiger Neo III JKM465N-48QL6-BDV is a 465 Wp bifacial dual-glass solar module from Jinko's third-generation Tiger Neo platform. Built around N-type TOPCon cells with 85 +/- 5 percent bifaciality, it delivers 23.27 percent front-side module efficiency and additional rear-side power gain from reflected and diffuse light. Industry-leading 15-year product warranty and 30-year linear performance warranty back the module.
Key features
- 465 Wp front-side, up to 518 Wp BNPI bifacial nameplate power (135 W/m^2 rear irradiance)
- 23.27 percent module efficiency at STC
- N-type TOPCon mono-crystalline cells with 192 half-cells (48 x 4 layout, QL6 architecture)
- Bifacial dual-glass 2.0 mm front (anti-reflection coated) + 2.0 mm heat-strengthened rear glass
- 85 +/- 5 percent bifaciality factor
- Low degradation: 1 percent first-year, 0.35 percent per year, 88.85 percent retained at year 30
- Mechanical load: 6000 Pa front, 4000 Pa rear (certified)
- Operating temperature: -40 to +70 degrees C
- 1500 V DC system voltage compatible
- Maximum series fuse: 30 A
- IP68 junction box with JK03M / JK03M2 connectors
- Anti-PID guarantee, resistant to PID, LID/LeTID and UV degradation
- 0 to +3 percent positive power sorting
Electrical specifications (STC, front side)
| Maximum power (Pmax) | 465 Wp |
| Maximum power voltage (Vmp) | 30.88 V |
| Maximum power current (Imp) | 15.06 A |
| Open-circuit voltage (Voc) | 35.96 V |
| Short-circuit current (Isc) | 15.72 A |
| Module efficiency | 23.27 percent |
| Temperature coefficient of Pmax | -0.26 percent / degree C |
| Temperature coefficient of Voc | -0.24 percent / degree C |
| Temperature coefficient of Isc | +0.046 percent / degree C |
Electrical specifications (BNPI bifacial nameplate)
At 1000 W/m^2 front + 135 W/m^2 rear irradiance, 25 degrees C, AM 1.5:
| Maximum power (Pmax) | 518 Wp |
| Maximum power voltage (Vmp) | 30.88 V |
| Maximum power current (Imp) | 16.79 A |
| Open-circuit voltage (Voc) | 35.96 V |
| Short-circuit current (Isc) | 17.52 A |
Mechanical specifications
| Model | JKM465N-48QL6-BDV |
| Cell type | N-type mono-crystalline (TOPCon) |
| Number of cells | 192 (48 x 4 half-cells, QL6 layout) |
| Dimensions (L x W x D) | 1762 x 1134 x 30 mm |
| Weight | 24.4 kg |
| Front glass | 2.0 mm with anti-reflection coating |
| Rear glass | 2.0 mm heat-strengthened |
| Frame | Anodized aluminium alloy |
| Junction box | IP68 |
| Output cables | greater than or equal to 4.0 mm^2, +600 mm / -400 mm (customizable) |
| Connector | JK03M / JK03M2 (MC4-EVO2 available on request) |
| Protection class | Class II |
| Fire type | Class C (IEC) |
Certifications
IEC 61215:2021, IEC 61730:2023, IEC 61701, IEC 62716, IEC 60068, IEC 62804 (anti-PID), ISO 9001, ISO 14001, ISO 45001. CE marked.
Warranty
- 15 years product warranty
- 30 years linear power output warranty (88.85 percent retained at year 30, 0.35 percent annual degradation, 1 percent first-year)
Applications
- Residential rooftop with bifacial gain (light-coloured roof, ground-mount, carports, balcony rails)
- Commercial flat roofs with east-west or south orientations
- Ground-mount solar farms and agrivoltaics with rear-side albedo gain
- Carports, awnings and BIPV applications where the rear side faces a reflective surface
Additional parameters
| Category: | Photovoltaic modules |
|---|---|
| Weight: | 24.4 kg |
| Brand: | Jinko Solar |
| Power: | 465 W |
