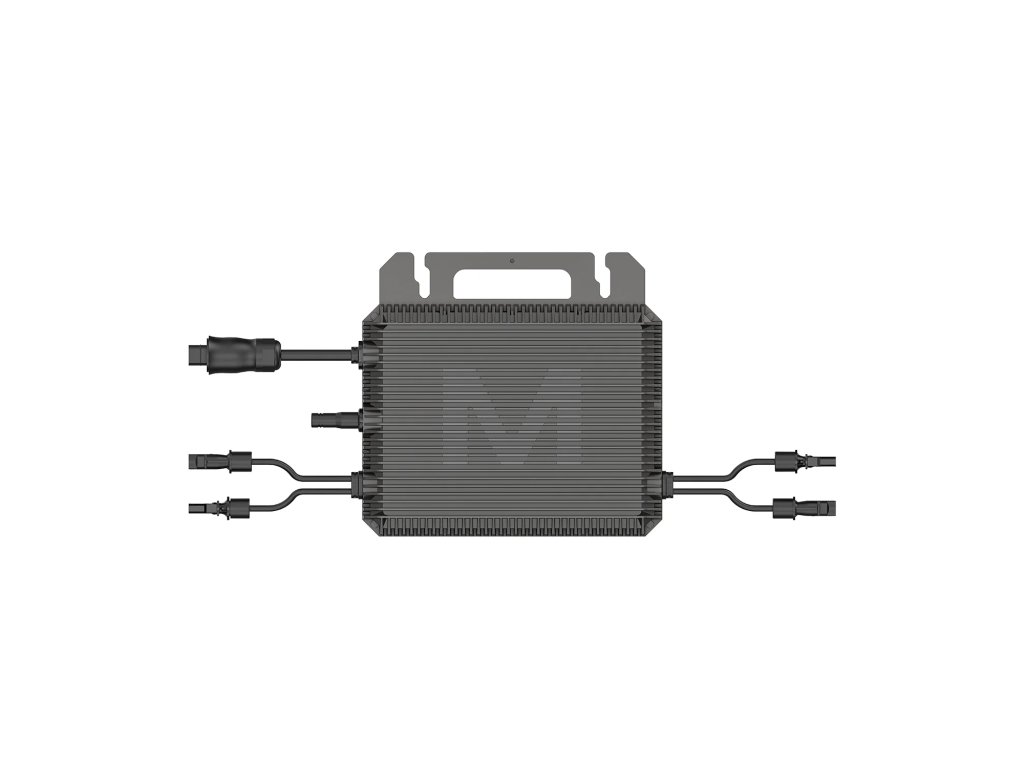

    Marstek M2-1000 Micro Inverter

    Code: MARSTEK-M2-1000
    Not rated Rating details
    Marstek M2-1000 Micro Inverter
    €0 €0 incl. VAT
    On request

    The Marstek M2-1000, part of the Saturn‑M series, is a high-performance single-phase grid-tied micro inverter designed for small to mid-sized solar installations, including balcony power systems.

    Detailed information

    In stock, ships within 24h
    In stock, ships within 24h
    We keep products in stock and dispatch your order within 24 hours.
    9 out of 10 customers return
    9 out of 10 customers return
    As many as 9 out of 10 customers come back to us for their next project.
    4.9★ rated by installers
    4.9★ rated by installers
    Professional installers rate us an average of 4.9 out of 5 stars.
    One partner for the whole project
    One partner for the whole project
    A complete range from one partner – no juggling multiple suppliers.

    Product detailed description

    Key features:



    • Dual MPPT for optimized energy harvest: Supports 2 MPPT channels with a power input range of 400–670 W per channel (up to 60 V) and maximum current of 16 A per channel, featuring dual 20 A short‑circuit protection.

    • High output power, 600W ~ 2000W: Offers stable AC output at 230 V (range 180–275 V), 50/60 Hz, with high efficiency—MPPT efficiency 99.8%, peak output efficiency 96.5%, and power factor >0.99 (THD <3%).

    • Robust and weatherproof: Designed to withstand harsh conditions with IP67 rating, operating from –40 °C to +65 °C.

    • Smart connectivity & monitoring: Equipped with Wi‑Fi/Bluetooth support, enabling system monitoring via the Marstek Energy app.

    • Plug‑and‑Play installation: MC4 connectors simplify setup—no complex wiring or electrician needed.

    • Rugged, reliable build: Naturally cooled, isolated topology with surge protection; backed by a 10‑year warranty.

    • Safe and reliable, high-frequency transformer with power switch and power relay



    Additional parameters

    Category: Solar inverters
    Weight: 3.85 kg
    Brand: Marstek
    Lenght: 655 mm
    Width: 251 mm
    Height: 38 mm
    Power: 1000 W
    Number of phases: 1
    Degree of protection (IP): IP67
    Communication: Wi-Fi, 4G
    Number of MPPT: 2
    Type: Microinverter
    Maximum output current: 4.35 A
    Nominal voltage: 230 V
    Max. PV short circuit current: 20 A
