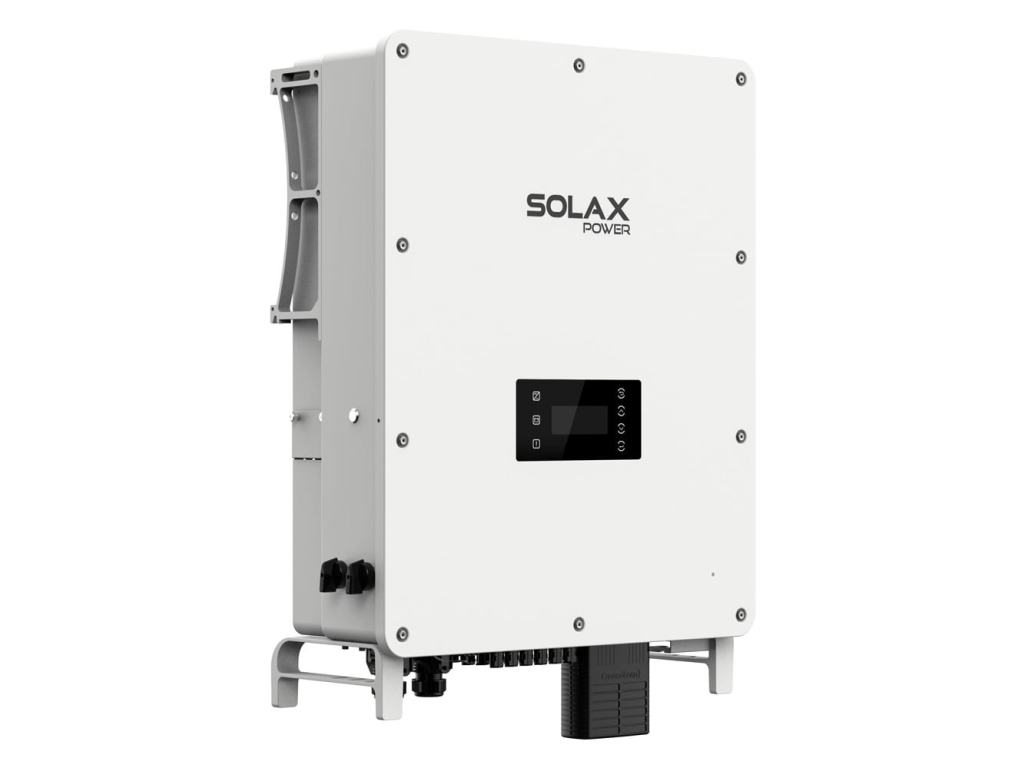

    SolaX X3-Aelio-50K 50kW Hybrid HV 3-phase Inverter

    Code: X3-AELIO-50K
    Not rated Rating details
    SolaX X3-Aelio-50K
    €0 €0 incl. VAT
    On request
    SolaX X3-Aelio-50K - 50 kW three-phase HV hybrid inverter for commercial PV-plus-storage, 5-6 MPPT, IP66, up to 98% efficiency.

    Detailed information

    In stock, ships within 24h
    In stock, ships within 24h
    We keep products in stock and dispatch your order within 24 hours.
    9 out of 10 customers return
    9 out of 10 customers return
    As many as 9 out of 10 customers come back to us for their next project.
    4.9★ rated by installers
    4.9★ rated by installers
    Professional installers rate us an average of 4.9 out of 5 stars.
    One partner for the whole project
    One partner for the whole project
    A complete range from one partner – no juggling multiple suppliers.

    Related products

    AELIO-B100 front view
    SolaX AELIO B100 100kWh Battery Cabinet (air-cooled)
    On request
    €0 incl. VAT
    €0
    AELIO-B100
    AELIO-B200 front view
    SolaX AELIO B200 200kWh Energy Storage Cabinet
    On request
    €0 incl. VAT
    €0
    AELIO-B200

    Product detailed description

    Overview

    SolaX X3-Aelio-50K - 50 kW three-phase HV hybrid inverter for commercial PV-plus-storage, 5-6 MPPT, IP66, up to 98% efficiency.

    Key Features

    • 50 kW three-phase HV hybrid inverter for C&I solar-plus-storage
    • 5-6 MPP trackers, 40 A per MPPT, up to 150% DC oversizing
    • VPP-ready smart energy management
    • IP66, active fan cooling, -35 to +60 °C
    • Max. efficiency 98%; parallel-capable

    Technical Specifications

    Rated AC output power50 kW
    Max. AC apparent power55 kVA
    PhaseThree-phase (3/N/PE), 230/400 V
    No. of MPP trackers5-6
    Max. input current per MPPT40 A
    Max. DC input voltage1000 V
    DC oversizingup to 150%
    Battery type / voltageHigh-voltage lithium
    Max. efficiency98.0%
    CommunicationRS485, CAN; Pocket WiFi/LAN/4G
    Protection ratingIP66
    CoolingActive fan cooling
    Operating temperature-35 to +60 °C
    Dimensions (W x H x D)820 x 670 x 257 mm
    Weight65 kg

    Compatible Batteries

    Works with SolaX Triple Power batteries. Always confirm the exact configuration with the supplier.

    Additional parameters

    Category: Solar inverters
    Weight: 65 kg
    Brand: SolaX
    Power: 50000 W
    Number of phases: 3
    Degree of protection (IP): IP66
    Number of MPPT: 5
    Type: Hybrid
    Nominal voltage: 400 V
    Maximum Output Power: 55000 VA
