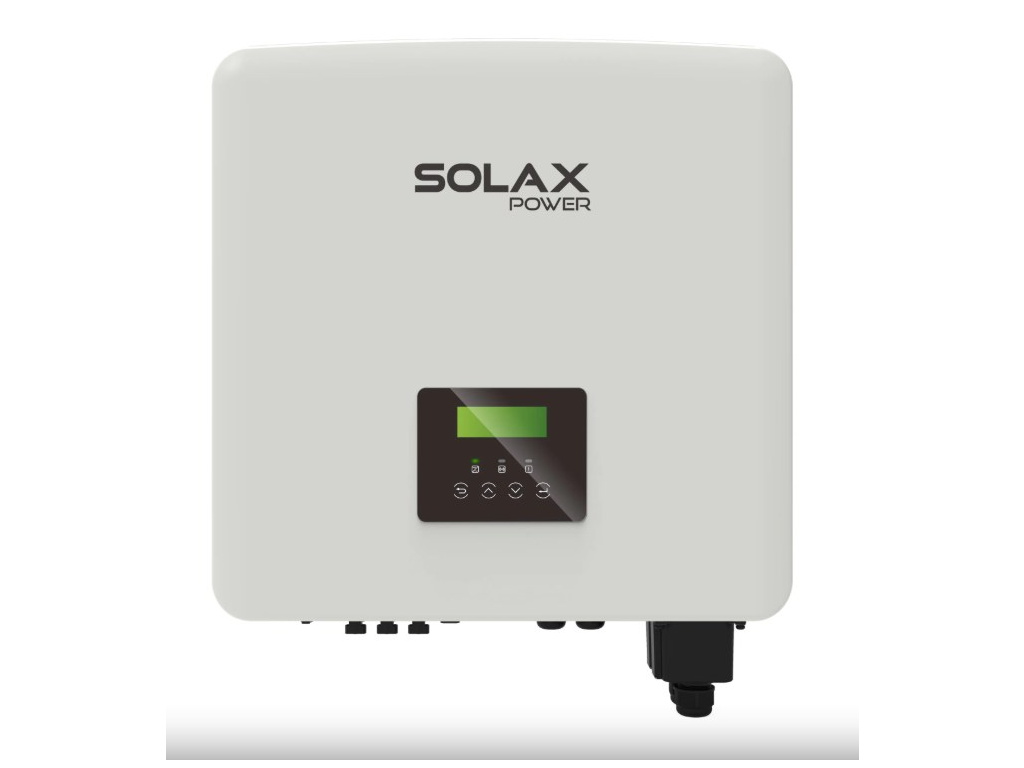

SolaX X3-Hybrid-10.0-D 10kW Hybrid HV 3-phase Inverter
Code: X3-HYBRID-10.0-D
Related products
Product detailed description
Overview
The SolaX X3-Hybrid-10.0-D is a 10 kW three-phase high-voltage hybrid inverter from the X3-Hybrid G4 series, for residential and small-commercial solar-plus-storage with EPS backup.
Key Features
- 10 kW three-phase high-voltage hybrid inverter (X3-Hybrid G4)
- 2 MPP trackers, up to 200% PV oversizing, MPPT 180-950 V
- HV battery 120-800 V (lithium / lead-acid), 30 A charge/discharge
- EPS off-grid backup with <10 ms switchover, up to 200% peak for 10 s
- Max. efficiency 98.0%; 100% unbalanced output support
- IP65 for indoor and outdoor installation
Technical Specifications
| Rated AC output power | 10 kW |
| Max. AC apparent power | 11.0 kVA |
| Rated output current | 14.5 A |
| Phase | Three-phase (3/N/PE), 230/400 V |
| Max. recommended PV power | 20 kWp |
| No. of MPP trackers | 2 (2+1 strings) |
| Max. input current per MPPT | 28/16 A |
| Max. DC input voltage | 1000 V |
| MPPT voltage range | 180-950 V |
| Rated PV voltage | 640 V |
| Battery type / voltage | Lithium / lead-acid, 120-800 V (HV) |
| Max. charge / discharge current | 30 A |
| EPS (off-grid) output | 10 kVA, 230/400 V, <10 ms switchover |
| Max. efficiency | 98.0% (Euro 97.0%) |
| Communication | CT/Meter, RS485, Pocket WiFi (opt. LAN/4G) |
| Protection rating | IP65 |
| Overvoltage category | Mains III / Battery II / PV II |
| Cooling | Smart air cooling |
| Topology | Non-isolated |
| Dimensions (W x H x D) | 503 x 503 x 199 mm |
| Weight | 30 kg |
| Certifications | EN/IEC 62109-1/-2, VDE4105, G99/G98, EN50549, CEI 0-21 |
Compatible Batteries
Works with SolaX Triple Power HV batteries (T-BAT-H series). Always confirm the exact configuration with the supplier.
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 30 kg |
| Brand: | SolaX |
| Lenght: | 199 mm |
| Width: | 503 mm |
| Height: | 503 mm |
| Power: | 10000 W |
| Number of phases: | 3 |
| Degree of protection (IP): | IP65 |
| Number of MPPT: | 2 |
| Type: | Hybrid |
| Nominal voltage: | 400 V |
| Operating voltage: | 180-950 VDC |
| Maximum Output Power: | 11000 VA |
