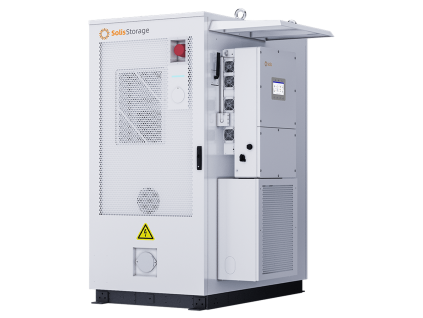

EVERCORE-120KWH-PRO-C5-60KW-21A-NV
Product detailed description
Overview
The Solis S6-EH3P60K-H(21A) is a 60 kW three-phase high-voltage hybrid inverter from the S6-EH3P(29.9-60)K-H(21A) series, designed for C&I energy storage. It offers 4 MPPTs with 21 A string current, dual HV battery ports with up to 84 A per port, seamless sub-10 ms backup switchover and parallel operation of up to 10 units. It is the designated inverter for the SolisStorage EverCore C&I battery cabinets.
Key Features
- 60 kW rated output with max 100 kW PV input
- 4 MPPTs, 21 A per string for high-power and bifacial modules
- Dual high-voltage battery ports, 84 A x 2 (168 A total) charge/discharge
- Seamless backup: on-grid/off-grid switchover under 10 ms
- Parallel operation up to 10 units
- Dedicated generator port at rated power
- IP66 enclosure with C5 anti-corrosion rating
- Wi-Fi, LAN and Bluetooth monitoring as standard (SolisCloud)
Technical Specifications
| Rated AC output power | 60 kW / 60 kVA |
| Max usable PV input power | 100 kW |
| Max PV input voltage | 1000 V |
| MPPT voltage range | 150-850 V |
| MPPTs / strings | 4 / 8 |
| Max input current per string | 21 A (42 A per MPPT) |
| Battery voltage range | 150-800 V (high-voltage Li-ion) |
| Max battery charge/discharge current | 84 A x 2 (168 A total) |
| Battery ports | 2 x HV battery port (CAN BMS) |
| Backup | Rated power, switchover < 10 ms |
| Generator port | Yes |
| Max efficiency / EU efficiency | 97.7% / 97.3% |
| Parallel operation | up to 10 |
| Communication | Wi-Fi + LAN + Bluetooth standard; CAN, RS485, DRM; optional 4G |
| Ingress protection | IP66 |
| Dimensions (W x H x D) | 530 x 880 x 290 mm |
| Weight | 76 kg |
| Warranty | 5 years (extendable to 10/15/20 years) |
Compatible Batteries
- SolisStorage EverCore C&I battery cabinets
- BYD Battery-Box Premium HVS / HVM and other approved HV batteries - see the official Solis battery compatibility list attached
Applications
- C&I energy storage systems (EverCore, HV battery cabinets)
- Commercial PV self-consumption
- Peak shaving and demand management
- Backup power for critical loads
- Microgrids and genset-coupled sites
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 76 kg |
| Brand: | Solis |
| Lenght: | 290 mm |
| Width: | 530 mm |
| Height: | 880 mm |
| Degree of protection (IP): | IP66 |
-
Solis S6-EH3P(29.9-60)K-H(21A) Hybrid Inverter Datasheet (PDF)
-
Solis S6-EH3P(29.9-60)K-H(21A) User Manual (PDF)
-
Solis Battery Compatibility List - Global Pamphlet (PDF)
