SolisStorage IntelliHome 16 kWh Wall-mounted Battery
Code: 2607090003
Product detailed description

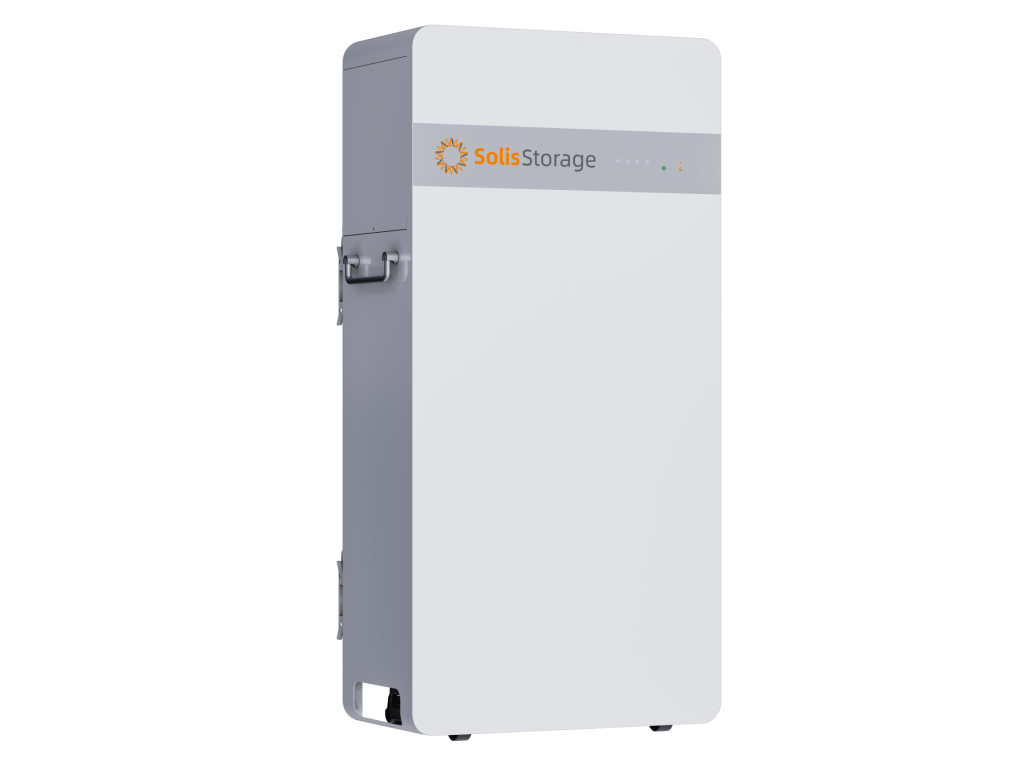

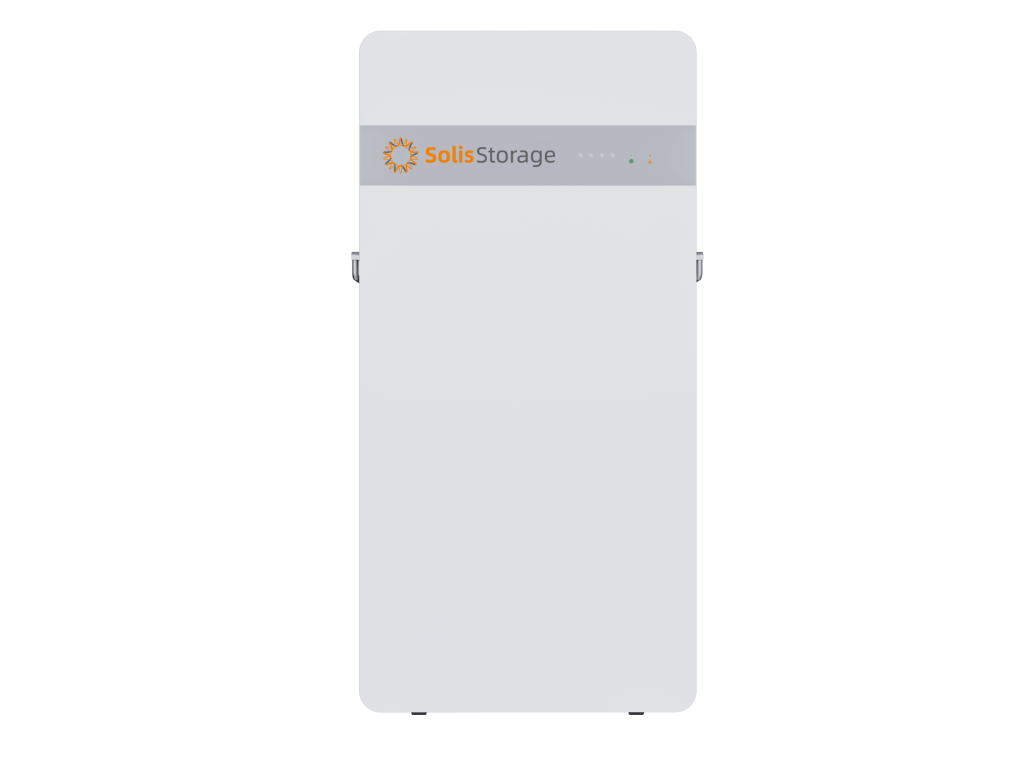

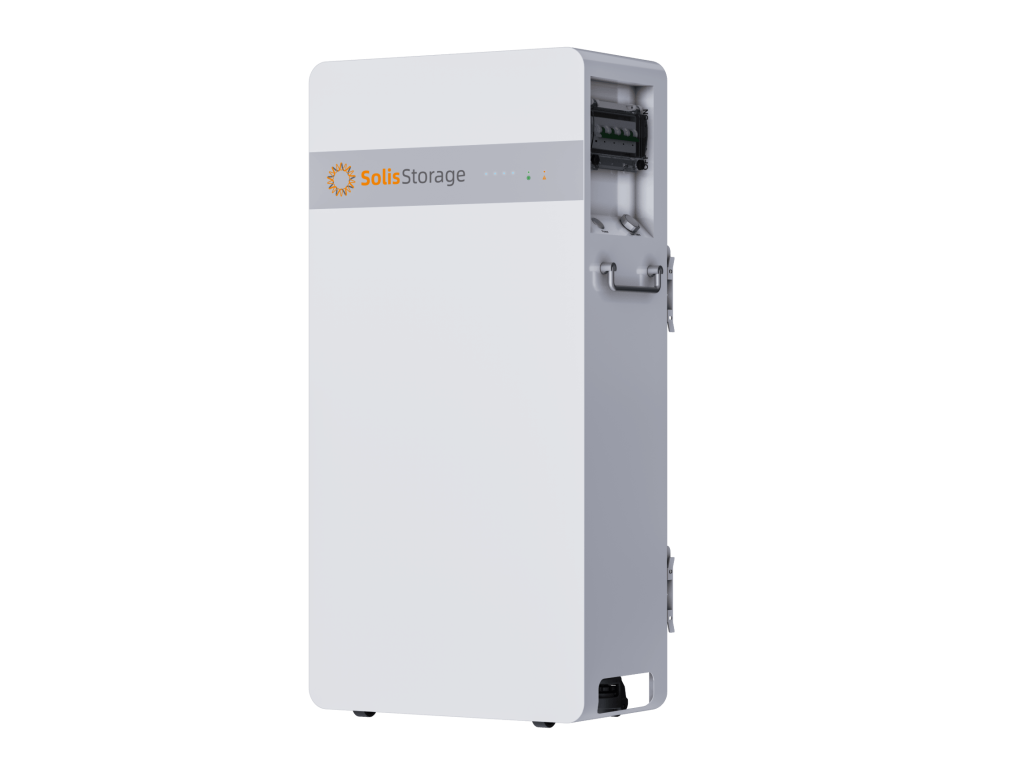

SolisStor IntelliHome 16 kWh wall/floor mounted LiFePO₄ battery for residential photovoltaic energy storage.
- Battery type: LiFePO4 (low voltage)
- Nominal capacity: 16 kWh
- Operating voltage: 44.8 - 57.6 V
- Rated cell capacity: 314 Ah
- Recommended charge/discharge rate: 0.5C
- Charge / discharge current: 157 A / 157 A
- Depth of discharge (DOD): 100%
- Cycle life: > 6000 cycles / 10 years
- Communication: CAN / RS485
- Operating temperature: -20 ~ 55°C (with heating function)
- Ingress protection: IP66
- Dimensions (W × H × D): 470 × 950 × 240 mm
- Weight: 126 kg
- Installation: floor-mounted / wall-mounted (default)
- Expandable: up to 8 units in parallel (max 128 kWh per cluster)
Additional parameters
| Category: | Batteries for photovoltaics |
|---|---|
| Weight: | 126 kg |
| Brand: | Solis Storage |
| Lenght: | 240 mm |
| Width: | 470 mm |
| Height: | 950 mm |
| Degree of protection (IP): | IP66 |
| Communication: | CAN / RS485 |
| Nominal voltage: | 51.2 V |
| Battery type: | Low voltage |
| Usable energy: | 16 kWh |
| Ah Capacity: | 314 |
Be the first who will post an article to this item!
Only registered users may submit ratings. Please log in or sign up.
Be the first who will post an article to this item!
Solis Storage is the dedicated energy storage brand of Ginlong Energy Storage Co., Ltd., a newly established sister company of Ginlong Technologies — the manufacturer of Solis solar inverters, with millions of units deployed worldwide.
Building on more than two decades of power-electronics expertise inside the Ginlong group, Solis Storage was launched as a focused brand for behind-the-meter battery storage, addressing residential, commercial and utility-scale segments. Its mission is to extend the engineering rigor and global service network behind Solis inverters into the storage layer of the modern electricity system.
Solis Storage maintains a European service hub in the Netherlands and an expanding distributor network across Benelux, DACH, the UK & Ireland, and Southern Europe, backed by direct factory support from China.
