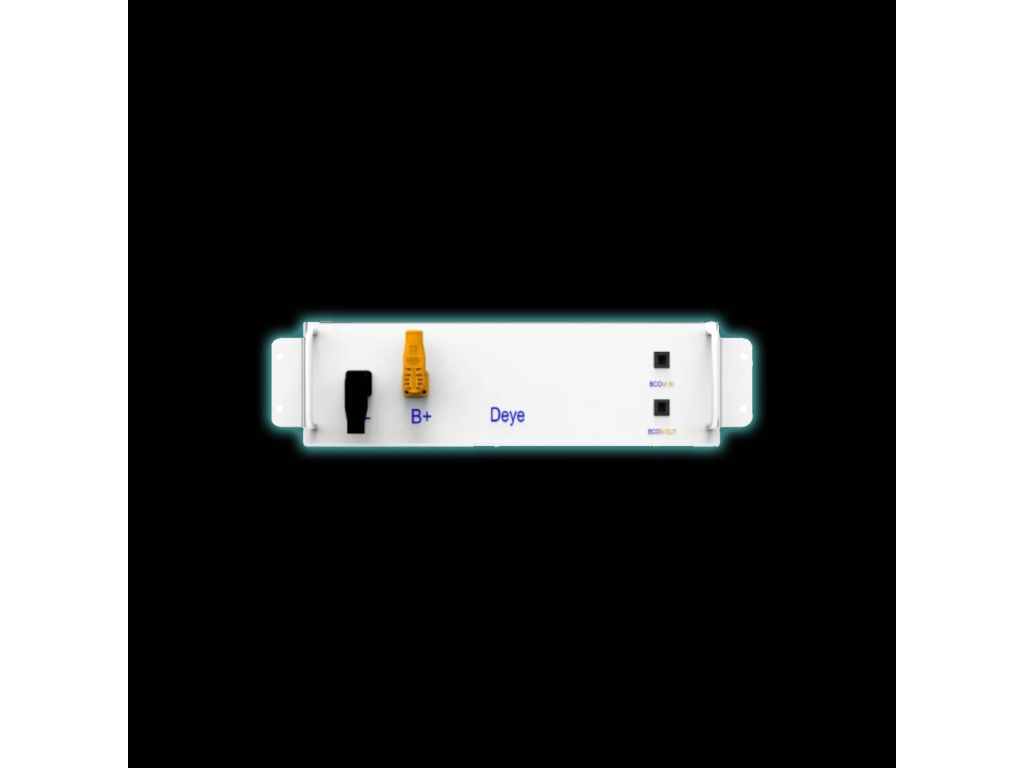

Deye BOS-A-Pack 7.68kWh HV Battery Module (LiFePO4)
Code: BOS-A-PACK7.68
Product detailed description
Overview
Deye BOS-A 7.68 kWh high-voltage LiFePO4 battery module (38.4 V, 200 Ah), 3U rack-mount, for commercial HV energy storage. 6000+ cycles.
Key Features
- 7.68 kWh HV LiFePO4 battery module (38.4 V, 200 Ah)
- 3U rack-mount for commercial HV storage
- 7-21 packs in series; 54-161 kWh systems
- ≥6000 cycles at 90% DoD; <10 ms on/off-grid switching
- Intelligent BMS with cell balancing
Technical Specifications
| Energy per module | 7.68 kWh |
| Battery chemistry | LiFePO4 (LFP) |
| Nominal voltage | 38.4 V |
| Capacity | 200 Ah |
| Max. current | 160 A |
| Cycle life | ≥6000 cycles (90% DoD) |
| Mounting | 3U rack |
| Operating temperature | charge 0-55 / discharge -20-55 °C |
| Dimensions (W x H x D) | 576 x 135 x 601 mm |
| Weight | approx. 70 kg |
| Certification | CE / IEC 62619 / UN38.3 |
System Compatibility
Part of the Deye high-voltage energy storage range. Always confirm the exact configuration with the supplier.
Additional parameters
| Category: | Batteries for photovoltaics |
|---|---|
| Weight: | 70 kg |
| Brand: | DEYE |
| Lenght: | 601 mm |
| Width: | 576 mm |
| Height: | 135 mm |
| Degree of protection (IP): | IP20 |
| Communication: | RS485, CAN |
| Nominal voltage: | 38.4 V |
| Battery type: | High voltage |
| Usable energy: | 7.68 kWh |
