Commercial Energy Storage

Why kWh and kW are sized separately

Capacity and power are independent specifications. Capacity in kWh is how much energy the battery holds; power in kW is how fast it can be pushed in or pulled out, and it is limited by the power conversion system and by the cells' allowed C-rate. A site with short, sharp peaks needs high power and modest capacity. A site running a long evening shift on stored solar needs the opposite.

• C-rate is power divided by capacity. 0.5C means a full discharge over two hours, 1C over one hour, 0.25C over four.
• Usable capacity is what counts, not nominal. Depth of discharge and reserved backup capacity both cut into it.
• Continuous versus peak power differ. Check how long a unit will sustain its boost rating before derating, and at what ambient temperature.
• Round-trip efficiency of a modern LiFePO4 system with its conversion stage typically lands around 88 to 92 %. Every stored kWh returns slightly less than a kWh.

Peak shaving and demand charge reduction

On most European commercial tariffs a large part of the bill is not energy but capacity: a charge on reserved capacity or on the highest quarter-hour demand recorded in the billing period. Storage discharges into those peaks so the meter never sees them, which lowers the billed maximum without changing what the site actually consumes. The EMS watches the metering point in real time and releases power the moment measured demand crosses a set threshold.

• Size from interval data, ideally a year of quarter-hour readings. Peak magnitude sets kW, peak duration sets kWh.
• Response speed matters. A system that reacts in a few hundred milliseconds catches a compressor or press start; a slower one does not.
• Reserved capacity can be renegotiated downwards with the supplier once storage reliably caps demand, which is often where the larger saving sits.

Load shifting, arbitrage and solar self-consumption

Load shifting charges the battery when electricity is cheap and discharges it when it is expensive. Under a spot or block tariff this is straightforward arbitrage; the spread has to cover round-trip losses and the cycle cost before it earns anything. Paired with a photovoltaic array the same mechanism raises self-consumption: midday surplus that would otherwise be exported at a low price is held back for the afternoon and evening load.

• Daily cycling is what pays back arbitrage. A system that cycles once a day earns roughly 365 spreads a year, so the cycle life budget has to allow it.
• Export limitation is often a condition of the grid connection. Storage absorbs what the limiter would otherwise curtail.
• EV charging is a growing use case: a battery buffers a wallbox bank so a site can add fast charging without upgrading the connection.

Backup power, transfer time and UPS-grade supply

Backup is a separate design question from savings. A standard grid-tied system disconnects on grid failure and does nothing. Backup requires a changeover point, an islanding-capable conversion system and clear knowledge of which circuits are protected. Transfer time is the discriminator: a typical islanding transfer takes 10 to 20 ms, which most machinery tolerates, while genuinely uninterruptible loads such as servers, medical equipment or continuous process control need an online double-conversion path with no break at all.

• Define the backup circuits on a separate distribution board. Backing up the whole site is usually far more expensive than backing up what matters.
• Check the surge rating. Motor and compressor inrush can be several times running current and it is the inverter, not the battery, that has to supply it.
• Black start with photovoltaics lets an islanded site recharge from the array during a long outage. Confirm the inverter supports it.

Cells, cycle life and what the warranty actually covers

LiFePO4 cycle life is quoted as a number of cycles to a remaining capacity, typically 6000 or more cycles to 70 or 80 % of original capacity, measured at a stated depth of discharge and temperature. Commercial warranties are usually written either in cycles or in total energy throughput in MWh, whichever limit is reached first, alongside a calendar term. Throughput warranties suit heavily cycled arbitrage sites; cycle counts suit predictable single-cycle operation.

• Read the conditions: guaranteed capacity at end of term, ambient temperature range, maximum C-rate and required connectivity for remote monitoring.
• Thermal management is the main lever on real degradation. Liquid-cooled cabinets hold cells in a tighter band than air-cooled ones under sustained high C-rate.
• Modularity lets capacity be added later. Check whether the manufacturer permits mixing production batches on one string, because many do not.

Enclosure, fire safety and grid connection

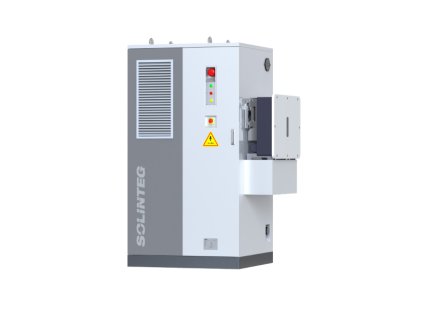

Cabinets from roughly 50 to 400 kWh sit outdoors on a prepared slab or indoors in a plant room and suit most single-site commercial projects. Containers from several hundred kWh upwards are used for industrial loads, microgrids and generation sites. Both need a fire strategy: cell-level detection, aerosol or gas suppression, off-gas and smoke sensing, pressure relief and a documented separation distance from occupied buildings and boundaries.

• IP rating and ambient range govern outdoor siting, along with noise from fans or chillers near neighbours.
• Grid connection needs DSO approval before installation. Expect a connection application, grid code compliance evidence for the conversion system, protection settings and a commissioning test.
• Metering and communication: a 3-phase smart meter at the connection point feeds the EMS, and remote monitoring is normally a warranty condition.
• Civil works: foundation, access for a crane or forklift, cable routing and earthing are often the long pole in the schedule, not the battery lead time.

Application comparison
