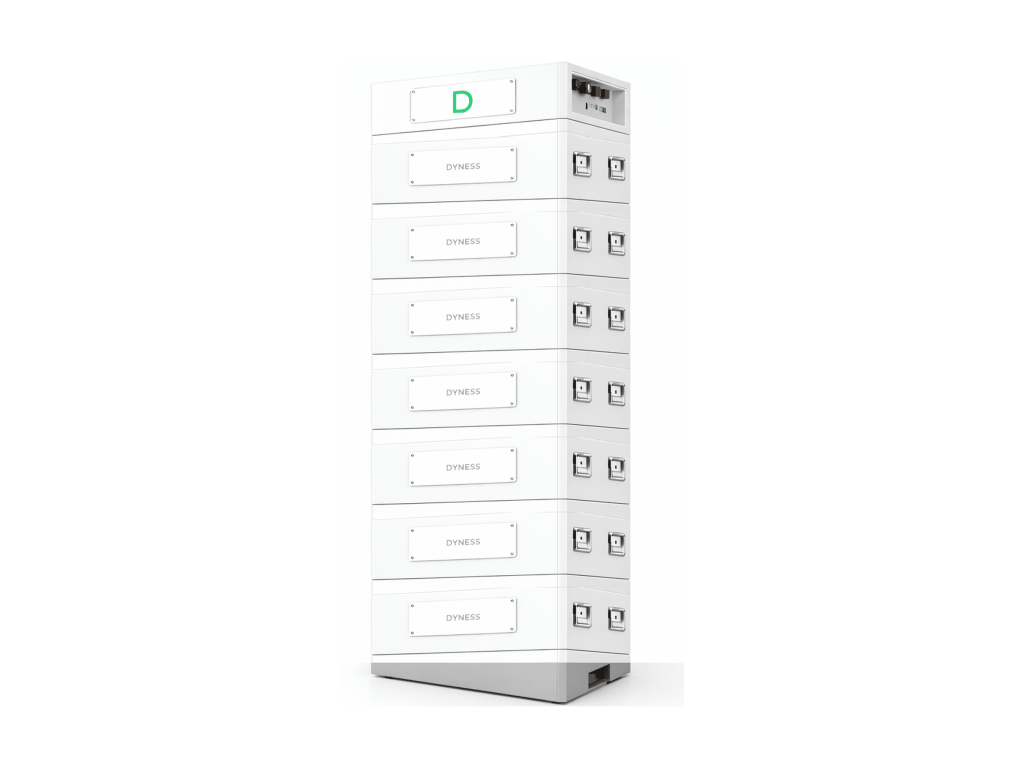

Dyness STACK280-7S battery system 100.35 kWh (7 modules + SBDU)
Code: STACK280-7S
Related products
Product detailed description
Overview
The Dyness STACK280-7S is a complete plug-and-play high-voltage battery system that pairs the STACK280 SBDU control unit and Standard Base with 7 stackable LiFePO4 battery modules. Total nominal energy is 100.35 kWh (95.33 kWh usable at 95 percent DOD). Modules connect to the SBDU and to each other through composite blind-mate connectors with no inter-module cabling.
What is included
- 1x Dyness STACK280 SBDU + Standard Base (Package A) with all installation hardware, terminating resistor and 2 m inverter communication cable.
- 7x Dyness STACK280 battery module S51280 (14.34 kWh / 51.2 V / 280 Ah each).
System specifications
| System model | STACK280-7S |
| Number of modules | 7 |
| Nominal energy | 100.35 kWh |
| Usable energy (95% DOD) | 95.33 kWh |
| Operating voltage | 313-408 V |
| Recommended charge/discharge | 140 A (0.5C) |
| Max continuous charge/discharge | 200 A (0.7C) |
| Peak discharge (2 min) | 280 A |
| Communication | CAN / RS485 (RJ45) |
| Protection rating | IP20 |
| Cycle life | greater than or equal to 8000 cycles, 10 years |
| Cluster dimensions assembled (W x D x H) | 770 x 425 x 1973 mm |
| Total weight | 808 kg |
| Certifications | CE EMC, CE RED, UN38.3 |
Compatible inverters
Solis, Growatt, Sosen, Solinteg, Atess, Magarevo, Deye, GoodWe, SINENG, SINEXCEL, Megarevo. CAN or RS485 communication is provided by the SBDU.
Installation notes
- Floor clearance: at least 450 mm above the cluster top is required for cooling and connection access.
- Stack height of 1973 mm requires a minimum room height of 2.42 m.
- Two-person installation required (each module weighs 110 kg).
- For more than 8 modules, a two-column expansion configuration is recommended.
Additional parameters
| Category: | Batteries for photovoltaics |
|---|---|
| Weight: | 808 kg |
| Brand: | Dyness |
| Lenght: | 425 mm |
| Width: | 770 mm |
| Height: | 1973 mm |
| Degree of protection (IP): | IP20 |
| Communication: | CAN / RS485 |
| Nominal Current: | 200 A |
