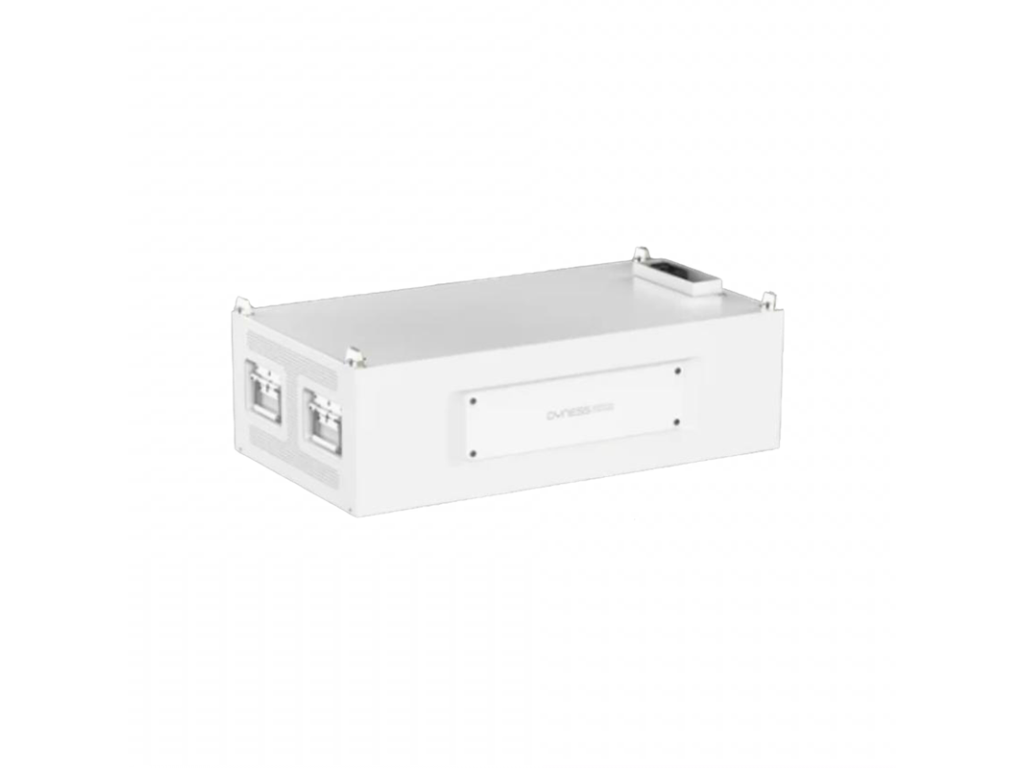

Dyness STACK280 battery module 14.34 kWh / 51.2 V / 280 Ah
Code: DYNESS-S51280
Product detailed description
Overview
The Dyness STACK280 (model S51280) is a high-voltage stackable LiFePO4 battery module designed for residential and small commercial energy storage. Each module delivers 14.34 kWh nominal energy (13.62 kWh usable) at 51.2 V / 280 Ah. Modules connect via blind-mate composite connectors with no cables between modules, allowing 3 to 15 modules to be stacked into a single cluster for 43 to 215 kWh of capacity.
Key Features
- Plug-and-play stacking: rackless design, modules stack onto the SBDU with composite blind-mate connectors. No inter-module wiring.
- Built-in aerosol fire extinguisher in every module, suppression in approximately 5 seconds.
- LiFePO4 chemistry, 8000+ cycle life at 95% DOD, 10-year warranty.
- 200 A continuous, 280 A peak (2 min) charge/discharge per cluster.
- Forced air cooling with built-in air duct between modules.
- Module mixing tolerated within 3 years of production date.
- Self-discharge low: up to 10-12 months in storage without charging.
Technical specifications
| Model | S51280 |
| Cell technology | Li-ion (LiFePO4) |
| Nominal energy | 14.336 kWh |
| Usable energy | 13.619 kWh (95% DOD) |
| Nominal voltage | 51.2 V DC |
| Nominal capacity | 280 Ah |
| Cells per module | 16 (3.2 V / 280 Ah each) |
| Recommended charge/discharge | 140 A (0.5C) |
| Max continuous charge/discharge | 200 A (0.7C) |
| Peak discharge (2 min, 25 degrees C) | 280 A |
| Charging temperature | 0 to +50 degrees C |
| Discharging temperature | -20 to +50 degrees C |
| Protection rating | IP20 |
| Cycle life | greater than or equal to 8000 cycles, 10 years |
| Dimensions (W x D x H) | 770 x 425 x 230.5 mm |
| Weight | 110 kg |
| Certifications | CE EMC, CE RED, UN38.3 |
System requirements
The module requires the Dyness STACK280 SBDU control unit and Standard Base to operate. A minimum of 3 modules per cluster is required; up to 15 modules per cluster, up to 12 clusters in parallel.
Compatible inverters
Solis, Growatt, Sosen, Solinteg, Atess, Magarevo, Deye, GoodWe, SINENG, SINEXCEL, Megarevo (CAN or RS485 communication via the SBDU).
Applications
- Residential solar self-consumption and backup
- Small commercial and industrial energy storage
- Off-grid and hybrid systems
- Peak shaving and time-of-use optimization
Additional parameters
| Category: | Batteries for photovoltaics |
|---|---|
| Weight: | 110 kg |
| Brand: | Dyness |
| Lenght: | 425 mm |
| Width: | 770 mm |
| Height: | 230 mm |
| Power: | 10.24 kW |
| Degree of protection (IP): | IP20 |
| Communication: | CAN / RS485 |
| Nominal voltage: | 51.2 V |
| Nominal Current: | 200 A |
