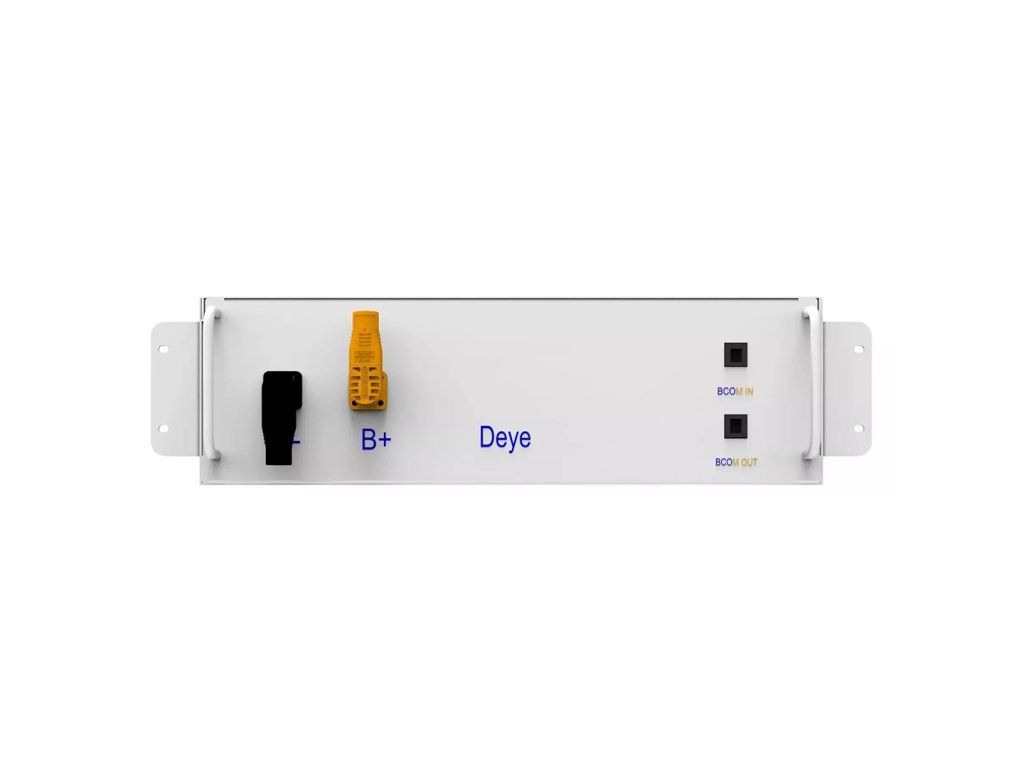

Deye BOS-GM5.1 Pro 5.12kWh HV Battery Module (LiFePO4)
Code: BOS-GM5.1-PRO
Product detailed description
Overview
The Deye BOS-GM5.1 Pro is a 5.12 kWh high-voltage LiFePO4 rack battery module (51.2 V, 100 Ah). Modules connect in series to build high-voltage stacks for small-scale C&I and residential energy storage with Deye HV inverters.
Key Features
- 5.12 kWh (100 Ah) LFP rack module, 51.2 V
- Stackable into HV systems (e.g. 25.6-87 kWh with 5-17 modules)
- Charge/discharge 100 A (peak 120 A)
- Intelligent BMS, IP20, rack-mounted
- CAN 2.0 / RS485 communication
- 6000+ cycles, 10-year warranty
Technical Specifications
| Nominal energy | 5.12 kWh (100 Ah) |
| Battery type / chemistry | High-voltage LiFePO4 (LFP) |
| Module nominal voltage | 51.2 V (stacked to HV) |
| Charge / discharge current | 100 A (peak 120 A) |
| Cycle life | 6000+ cycles |
| Communication | CAN 2.0 / RS485 |
| Protection rating | IP20 (indoor) |
| Dimensions (W x H x D) | 440 x 585 x 133 mm |
| Weight | 46 kg |
| Warranty | 10 years |
Compatible Inverters
For Deye high-voltage hybrid inverters (SG01HP3 / SG02HP3 series) as part of a BOS-G HV battery stack with the matching PDU/control. Always confirm the exact configuration with the supplier.
Applications
- Residential and small commercial HV energy storage
- Scalable rack stacks for higher capacity
Additional parameters
| Category: | Batteries for photovoltaics |
|---|---|
| Weight: | 46 kg |
| Brand: | DEYE |
| Lenght: | 133 mm |
| Width: | 440 mm |
| Height: | 585 mm |
| Degree of protection (IP): | IP20 |
| Communication: | RS485, CAN |
| Nominal voltage: | 51.2 V |
| Battery type: | High voltage |
| Usable energy: | 5,12 kWh |
