Deye GB-L-Pro Pack 4.1 kWh HV Battery Module (LiFePO4)
Code: GB-L-PRO-PACK4.1
Product detailed description
Overview

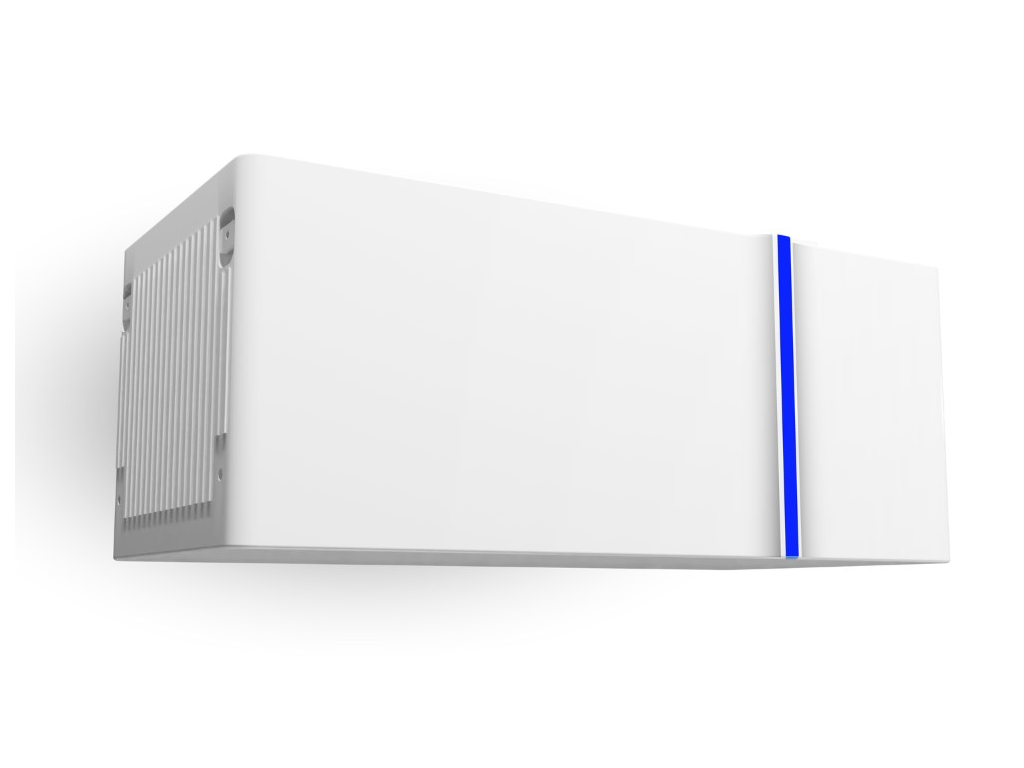

Deye GB-L-Pro-Pack4.1 - 4.1 kWh high-voltage (102.4 V) LiFePO4 battery module for the stackable Deye GB-L Pro HV home battery system. IP65.
Key Features
- 4.1 kWh high-voltage (102.4 V) LiFePO4 battery module
- Stackable HV architecture, system range 166.4-700 V
- Pairs with the Deye GB-LBS-Pro control box and base
- 6000+ cycle cobalt-free LFP cells
- IP65 enclosure
- Residential HV solar storage
Technical Specifications
| Energy per module | 4.1 kWh |
| Battery chemistry | LiFePO4 (LFP) |
| Nominal voltage | 102.4 V |
| System voltage range | 166.4-700 V |
| Stack configuration | Series-connected 4 kWh modules with GB-LBS-Pro control box |
| Cycle life | 6000+ cycles |
| Protection rating | IP65 |
| Dimensions (W x H x D) | 540 x 220 x 385 mm |
| Weight | 40.5 kg |
System Compatibility
Part of the Deye residential energy storage range. Always confirm the exact configuration with the supplier.
Additional parameters
| Category: | Batteries for photovoltaics |
|---|---|
| Weight: | 40.5 kg |
| Brand: | DEYE |
| Lenght: | 385 mm |
| Width: | 540 mm |
| Height: | 220 mm |
| Degree of protection (IP): | IP65 |
| Communication: | RS485, CAN |
| Nominal voltage: | 102.4 V |
| Operating voltage: | 166.4-700 V |
| Battery type: | High voltage |
| Usable energy: | 4.1 kWh |
