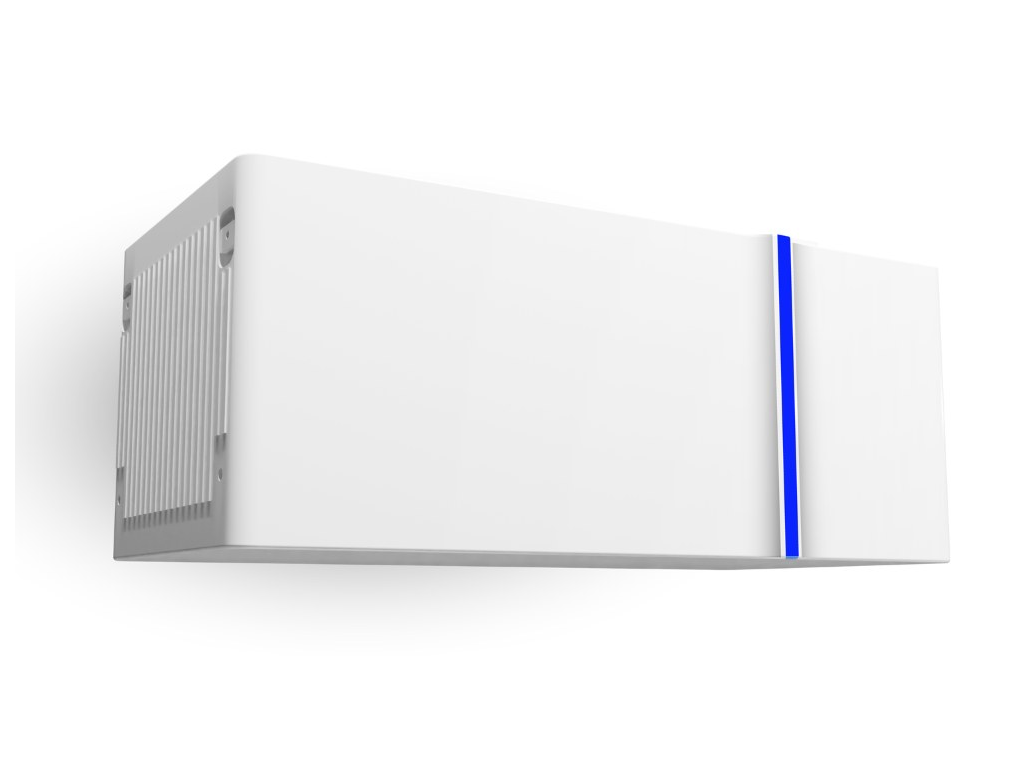

Deye GB-LBS-Pro Control Box + Base (HV)
Code: GB-LBS-PRO-BASE
Product detailed description
Overview
Deye GB-LBS-Pro control box and base for the GB-L Pro high-voltage battery stack. Cluster BMS / control unit (120-750 V, 100 A) with floor base. IP65.
Key Features
- Cluster control box (BMS) + base for the GB-L Pro HV stack
- Manages charge/discharge and cell balancing of stacked modules
- Voltage range 120-750 V, up to 100 A
- CAN / RS485 communication to the inverter
- IP65
- Required head + foot of the GB-L Pro tower
Technical Specifications
| Function | HV cluster control box (BMS) + floor base |
| Voltage range | 120-750 V |
| Max. current | 100 A |
| Communication | CAN / RS485 |
| Protection rating | IP65 |
| Control box dimensions (W x H x D) | 540 x 110 x 385 mm |
| Base dimensions (W x H x D) | 540 x 100 x 385 mm |
| Weight (box + base) | approx. 14.5 kg |
System Compatibility
Part of the Deye residential energy storage range. Always confirm the exact configuration with the supplier.
Additional parameters
| Category: | Batteries for photovoltaics |
|---|---|
| Weight: | 14.5 kg |
| Brand: | DEYE |
| Lenght: | 385 mm |
| Width: | 540 mm |
| Height: | 110 mm |
| Degree of protection (IP): | IP65 |
| Communication: | RS485, CAN |
| Operating voltage: | 120-750 V |
