    Home / Photovoltaics / Batteries for photovoltaics / Deye RW-F10.2 10.24kWh LV Battery (LiFePO4)

    Deye RW-F10.2 10.24kWh LV Battery (LiFePO4)

    Code: RW-F10.2
    Not rated Rating details

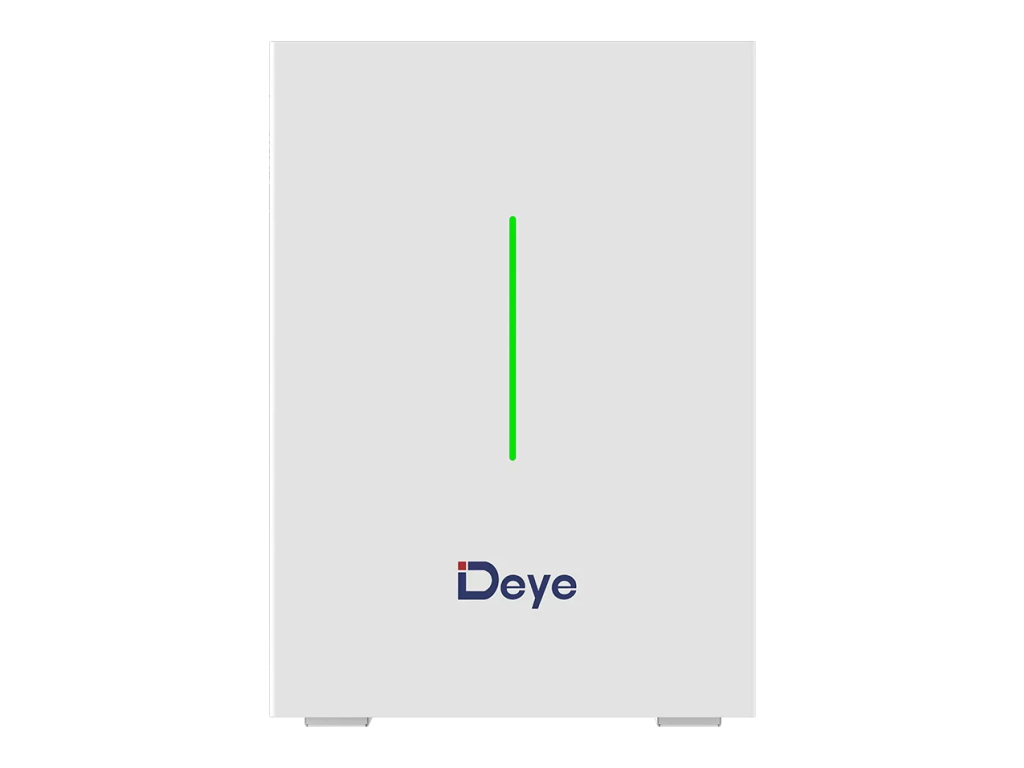

    Deye RW-F10.2 front view
    €0 €0 incl. VAT
    On request
    Deye RW-F10.2 - 10.24 kWh low-voltage (51.2 V) LiFePO4 home battery, up to 6000 cycles, parallel-expandable, for residential solar storage and backup.

    Detailed information

    In stock, ships within 24h
    In stock, ships within 24h
    We keep products in stock and dispatch your order within 24 hours.
    9 out of 10 customers return
    9 out of 10 customers return
    As many as 9 out of 10 customers come back to us for their next project.
    4.9★ rated by installers
    4.9★ rated by installers
    Professional installers rate us an average of 4.9 out of 5 stars.
    One partner for the whole project
    One partner for the whole project
    A complete range from one partner – no juggling multiple suppliers.

    Related products

    Deye RW-F5.3-1H3
    Deye RW-F5.3-1H3 5.32kWh All-in-One ESS (LiFePO4)
    On request
    €0 incl. VAT
    €0
    RW-F5.3-1H3

    Product detailed description

    Overview

    The Deye RW-F10.2 is a 10.24 kWh low-voltage (51.2 V) LiFePO4 home battery. Cobalt-free LFP cells deliver up to 6000 cycles, and multiple units can be paralleled for larger capacity. Designed for residential solar self-consumption and backup.

    Key Features

    • 10.24 kWh usable LFP battery, 51.2 V low-voltage
    • Cobalt-free LiFePO4 chemistry, up to 6000 cycles
    • 6 kW rated / 12 kW peak DC power
    • Parallel expansion for higher capacity
    • RS485 / CAN communication, self-adaption to inverter BMS
    • IP65, wall- or floor-mount, 10-year warranty

    Technical Specifications

    Usable energy10.24 kWh
    Battery type / chemistryLow-voltage LiFePO4 (LFP)
    Nominal voltage51.2 V
    Operating voltage43.2-57.6 V
    Rated / peak DC power6 kW / 12 kW
    Cycle lifeUp to 6000 cycles
    CommunicationRS485 / CAN
    Protection ratingIP65
    Dimensions (W x H x D)600 x 760 x 200 mm
    Weight104 kg
    Warranty10 years

    Compatible Inverters

    Works with Deye low-voltage (48 V) hybrid inverters (SG04LP3, SG05LP3, SG05LP1, SG02LP1 and similar). See the attached Inverter Compatibility Statement; always confirm the exact pairing with the supplier.

    Applications

    • Residential solar self-consumption and time-of-use shifting
    • Backup power for homes and small businesses
    • Capacity expansion by paralleling multiple units

    Additional parameters

    Category: Batteries for photovoltaics
    Weight: 104 kg
    Brand: DEYE
    Lenght: 200 mm
    Width: 600 mm
    Height: 760 mm
    Degree of protection (IP): IP65
    Communication: RS485, CAN
    Nominal voltage: 51.2 V
    Operating voltage: 43.2-57.6 V
    Battery type: Low voltage
    Usable energy: 10.24 kWh
