Deye RW-F5.3-1H3 5.32kWh All-in-One ESS (LiFePO4)
Code: RW-F5.3-1H3
Related products
Product detailed description
Overview

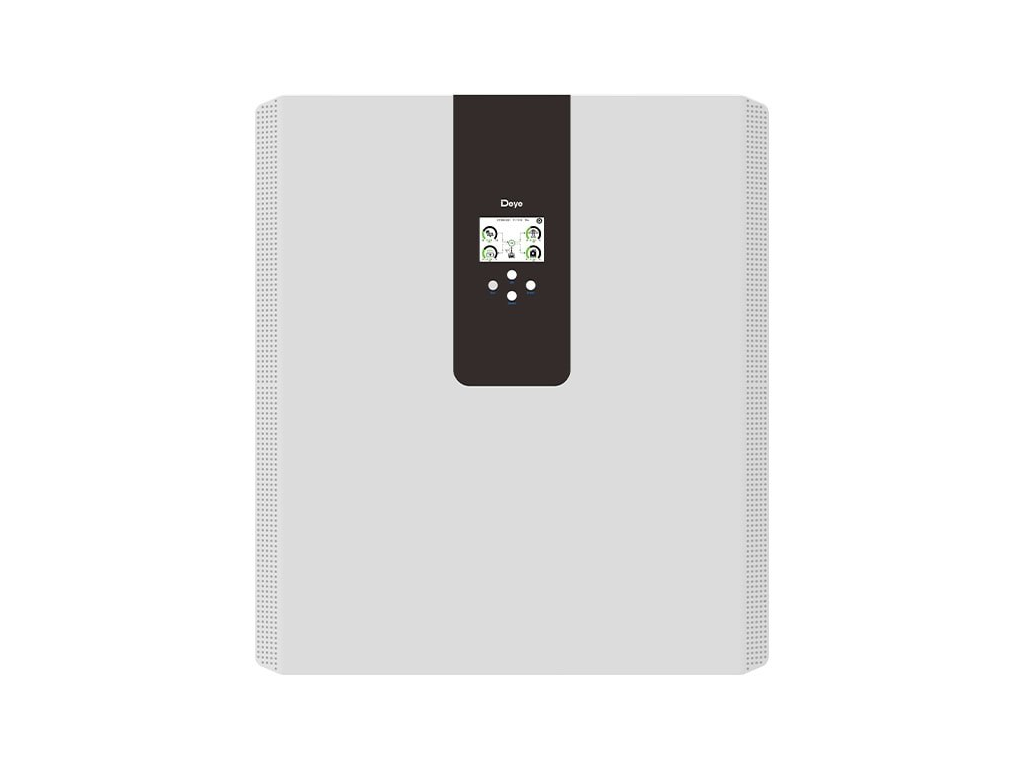

Deye RW-F5.3-1H3 - all-in-one residential ESS combining a 3.6 kW hybrid inverter and a 5.32 kWh LiFePO4 battery in one wall-mounted unit. IP65, 6000+ cycles.
Key Features
- All-in-one: 3.6 kW hybrid inverter + 5.32 kWh LiFePO4 battery
- Wall-mounted, compact and quiet (<30 dB)
- 6000+ cycle LFP cells; 4 ms backup switching
- Scalable up to 16 units in parallel and extra batteries
- IP65, intelligent air cooling
- Residential solar self-consumption and backup
Technical Specifications
| System type | All-in-one (hybrid inverter + battery) |
| Inverter power | 3.6 kW |
| Battery energy | 5.32 kWh |
| Battery chemistry | LiFePO4 (LFP) |
| Max. charge / discharge current | 75 / 100 A |
| Cycle life | 6000+ cycles (25 °C) |
| Backup switching time | 4 ms |
| Scalability | Up to 16 units in parallel (80 kW / 84.8 kWh) |
| Cooling | Intelligent air cooling |
| Noise | <30 dB |
| Protection rating | IP65 |
| Operating temperature | -10 to +55 °C |
| Dimensions (W x H x D) | 616 x 690 x 191 mm |
| Weight | 71 kg |
System Compatibility
Part of the Deye residential energy storage range. Always confirm the exact configuration with the supplier.
Additional parameters
| Category: | Batteries for photovoltaics |
|---|---|
| Weight: | 71 kg |
| Brand: | DEYE |
| Lenght: | 191 mm |
| Width: | 616 mm |
| Height: | 690 mm |
| Degree of protection (IP): | IP65 |
| Communication: | RS485, CAN |
| Nominal voltage: | 51.2 V |
| Battery type: | Low voltage |
| Usable energy: | 5.32 kWh |
