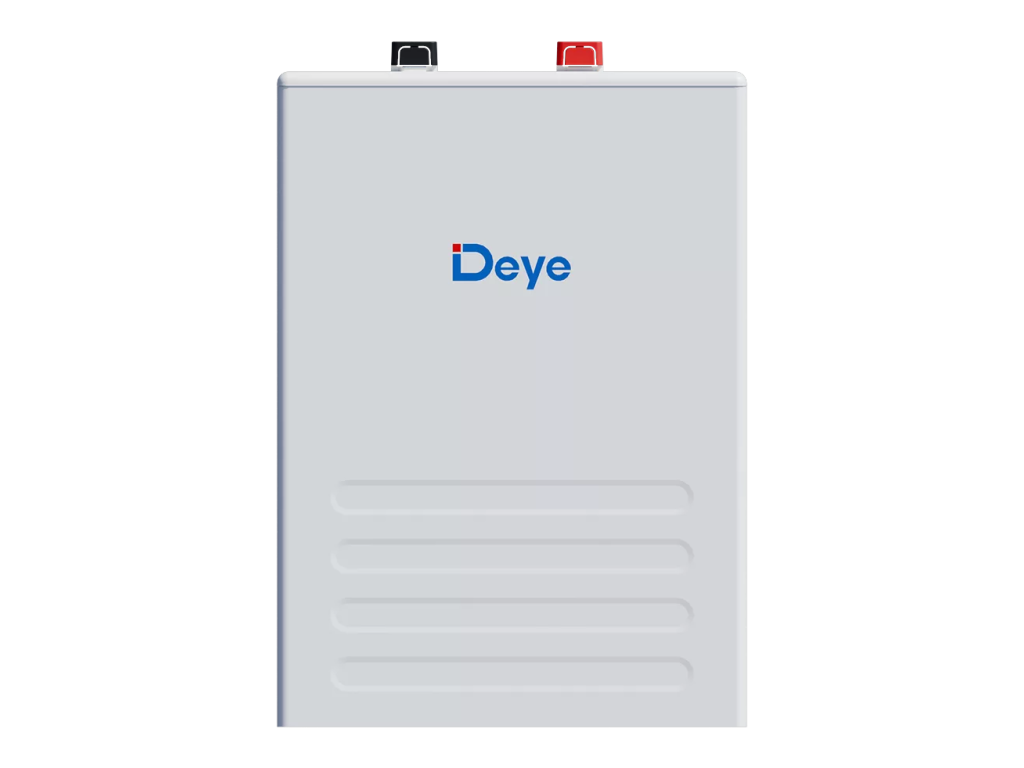

Deye SE-F12-C 12.28kWh LV Battery (LiFePO4)
Code: SE-F12-C
Product detailed description
Overview
The Deye SE-F12-C is a 12.28 kWh low-voltage (51.2 V) LiFePO4 home battery. Cobalt-free LFP cells deliver 6000+ cycles, and up to 32 units can be paralleled (64 with CAN-Box) for large capacity. Wall-, floor- or stack-mounted for residential solar storage.
Key Features
- 12.28 kWh (240 Ah) LFP battery, 51.2 V low-voltage
- Cobalt-free LiFePO4 chemistry, 6000+ cycles
- Scalable: up to 32 units in parallel (64 with CAN-Box)
- Wall / floor / stack mounting
- CAN / RS485 / Bluetooth communication, self-adaption to inverter BMS
- 5 / 10-year warranty
Technical Specifications
| Nominal energy | 12.28 kWh (240 Ah) |
| Battery type / chemistry | Low-voltage LiFePO4 (LFP) |
| Nominal voltage | 51.2 V |
| Operating voltage | 44.8-57.6 V |
| Scalability | Up to 32 in parallel (64 with CAN-Box) |
| Cycle life | 6000+ cycles (25°C, 70% EOL) |
| Communication | CAN 2.0 / RS485 / Bluetooth + App |
| Protection rating | IP21 (indoor) |
| Dimensions (W x H x D) | 400 x 559 x 233 mm |
| Weight | 84 kg |
| Warranty | 5 / 10 years |
Compatible Inverters
Works with Deye low-voltage (48 V) hybrid inverters (SG04LP3, SG05LP3, SG05LP1, SG02LP1 and similar). Always confirm the exact pairing with the supplier.
Applications
- Residential solar self-consumption and time-of-use shifting
- Backup power; capacity expansion by paralleling units
Additional parameters
| Category: | Batteries for photovoltaics |
|---|---|
| Weight: | 84 kg |
| Brand: | DEYE |
| Lenght: | 233 mm |
| Width: | 400 mm |
| Height: | 559 mm |
| Degree of protection (IP): | IP21 |
| Communication: | RS485, CAN, Bluetooth |
| Nominal voltage: | 51.2 V |
| Operating voltage: | 44.8-57.6 V |
| Battery type: | Low voltage |
| Usable energy: | 12.28 kWh |
