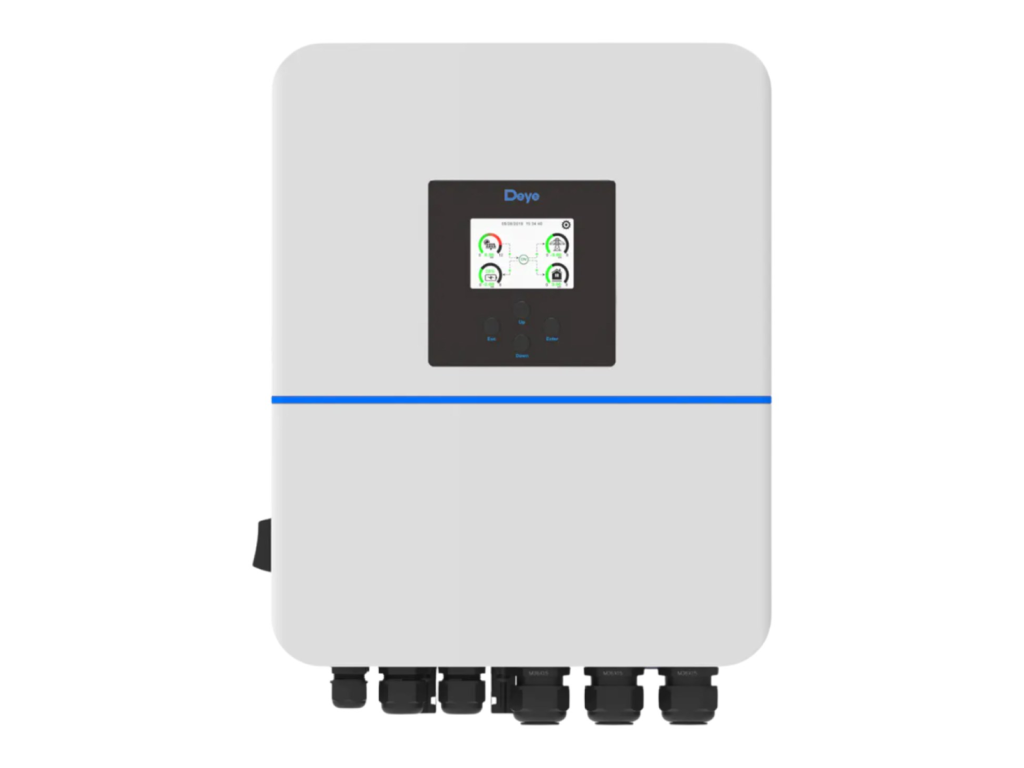

Deye SUN-10K-SG01HP3-EU-DM2 10kW Hybrid HV 3-phase Inverter
Code: SUN-10K-SG01HP3-EU-DM2
Related products
Product detailed description
Overview
The Deye SUN-10K-SG01HP3-EU-DM2 is a 10 kW three-phase high-voltage hybrid inverter (DM2 revision) for residential and small-commercial PV-plus-storage systems.
Key Features
- 10 kW three-phase high-voltage hybrid inverter (DM2 revision)
- 2 MPP trackers, MPPT range 150-850 V, max. DC input 1000 V
- High-voltage battery 160-700 V
- 100% unbalanced output; on-grid and off-grid operation
- Max. efficiency 97.6%, IP65 for indoor/outdoor installation
Technical Specifications
| Rated AC output power | 10 000 W |
| Max. AC apparent power | 11000 VA |
| Phase | Three-phase (3L+N+PE), 380/400 V |
| Max. PV input power | 13 000 W |
| No. of MPP trackers | 2 |
| PV input current | 20+20 A |
| MPPT voltage range | 150-850 V |
| Max. DC input voltage | 1000 V |
| Battery type / voltage | High-voltage Li-ion, 160-700 V |
| Max. efficiency | 97.6% |
| Communication | CAN / RS485 |
| Protection rating | IP65 |
| Operating temperature | -40 to +60 °C |
| Dimensions (W x H x D) | 408 x 638 x 237 mm |
| Weight | 30.5 kg |
| Warranty | 5 / 10 years |
Compatible Batteries
Requires a high-voltage (160-700 V) battery system. Always confirm the exact model with the supplier.
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 30.5 kg |
| Brand: | DEYE |
| Lenght: | 237 mm |
| Width: | 408 mm |
| Height: | 638 mm |
| Power: | 10000 W |
| Number of phases: | 3 |
| Degree of protection (IP): | IP65 |
| Communication: | RS485, CAN |
| Number of MPPT: | 2 |
| Type: | Hybrid |
| Voltage converters - DEYE - Model series: | SG01HP3-EU-DM2 | 3 Phase | 2 MPPT |
| Nominal voltage: | 400 V |
| Operating voltage: | 150-850 VDC |
| Maximum Output Power: | 11000 VA |
