    Deye SUN-25K-SG01HP3-EU-AM2 25kW Hybrid HV 3-phase inverter

    Code: SUN-25K-SG01HP3-EU-AM2
    Not rated Rating details

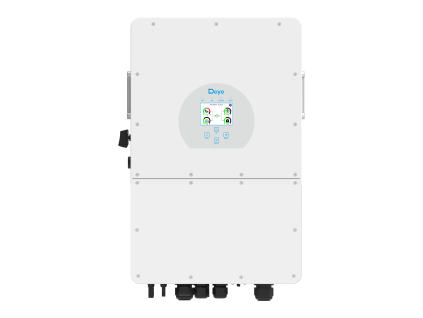

    Front view
    €0 €0 incl. VAT
    On request
    25 kW three-phase hybrid inverter for high-voltage batteries (160-700 V). Two MPP trackers, 100% unbalanced output and parallel operation of up to 10 units, for residential and small commercial energy-storage systems.

    Detailed information

    Fair price
    Fair price
    We offer competitive prices with an emphasis on quality and transparency
    Fast delivery
    Fast delivery
    Products in stock, ships now. Backordered items ship in 5 days.
    Loyalty bonus
    Loyalty bonus
    Regular customers get discounts and bonuses for their loyalty.
    Expert turnkey installation
    Expert turnkey installation
    We provide end-to-end services with a quality guarantee.

    Related products

    Front view
    Deye SUN-8K-SG01HP3-EU-AM2 8kW Hybrid HV 3-phase inverter
    On request
    €0 incl. VAT
    €0
    SUN-8K-SG01HP3-EU-AM2
    Front view
    Deye SUN-10K-SG01HP3-EU-AM2 10kW Hybrid HV 3-phase inverter
    On request
    €0 incl. VAT
    €0
    SUN-10K-SG01HP3-EU-AM2
    Front view
    Deye SUN-15K-SG01HP3-EU-AM2 15kW Hybrid HV 3-phase inverter
    On request
    €0 incl. VAT
    €0
    SUN-15K-SG01HP3-EU-AM2
    Front view
    Deye SUN-20K-SG01HP3-EU-AM2 20kW Hybrid HV 3-phase inverter
    On request
    €0 incl. VAT
    €0
    SUN-20K-SG01HP3-EU-AM2
    Front view
    Deye SUN-12K-SG01HP3-EU-AM2 12kW Hybrid HV 3-phase inverter
    On request
    €0 incl. VAT
    €0
    SUN-12K-SG01HP3-EU-AM2
    Show all related products Previous product Next product

    Product detailed description

    Overview

    The Deye SUN-25K-SG01HP3-EU-AM2 is a 25 kW three-phase hybrid inverter designed for high-voltage battery storage. With two MPP trackers, support for up to 10 units in parallel and 100% unbalanced output, it suits demanding residential and small commercial PV-plus-storage installations.

    Key Features

    • 25 kW three-phase hybrid inverter with high-voltage battery support (160-700 V)
    • 2 MPP trackers, max. PV input voltage 1000 V, MPPT range 150-850 V
    • Max. battery charge / discharge current 50 A
    • 100% unbalanced output and AC coupling to retrofit existing PV systems
    • Up to 10 units in parallel for on-grid and off-grid operation
    • 6 configurable time periods for battery charge / discharge; diesel-generator input supported
    • Max. efficiency 97.6%, IP65 for indoor and outdoor installation

    Technical Specifications

    Rated AC output power25 000 W
    Max. AC apparent power27500 VA
    PhaseThree-phase (3L+N+PE), 400 V
    Max. PV input power40 000 W
    Max. PV input voltage1000 V
    MPP trackers / strings2 / 2+2
    MPPT voltage range150-850 V
    Battery type / voltageHigh-voltage Li-ion, 160-700 V
    Rated / max AC current36.3 A / 39.9 A
    Max. charge / discharge current50 A
    Max. efficiency97.6% (Euro 97.0%)
    CommunicationRS485 / RS232 / CAN; Wi-Fi / 4G / LAN / Bluetooth (optional)
    Protection ratingIP65
    Operating temperature-40 to +60 °C
    Dimensions (W x H x D)408 x 638 x 237 mm
    Weight30.5 kg
    Warranty5 / 10 years

    Compatible Batteries

    Requires a high-voltage (160-700 V) battery system. Per Deye's official Approved Battery List, the SG01HP3 series is compatible with Deye BOS-G / GB-L, Dyness HV / Tower / Orion, Pylontech Powercube / Force-H, BYD Battery-Box HVS / HVM, Shoto, UZ, Greenrich and other approved HV systems. See the attached Battery Compatibility List; always confirm the exact model with the supplier.

    Applications

    • Residential and small commercial solar self-consumption with storage
    • Backup power and off-grid operation (single or parallel up to 10 units)
    • Retrofit AC coupling of existing PV installations

    Additional parameters

    Category: Solar inverters
    Weight: 30.5 kg
    Brand: DEYE
    Lenght: 237 mm
    Width: 408 mm
    Height: 638 mm
    Power: 25000 W
    Number of phases: 3
    Degree of protection (IP): IP65
    Communication: RS485, CAN, RS232
    Number of MPPT: 2
    String: 2+2
    Type: Hybrid
    Voltage converters - DEYE - Model series: SG01HP3-EU-AM2 | 3 Phase | 2 MPPT
    Nominal voltage: 400 V
    Operating voltage: 150-850 VDC
    Maximum Output Power: 27500 W
