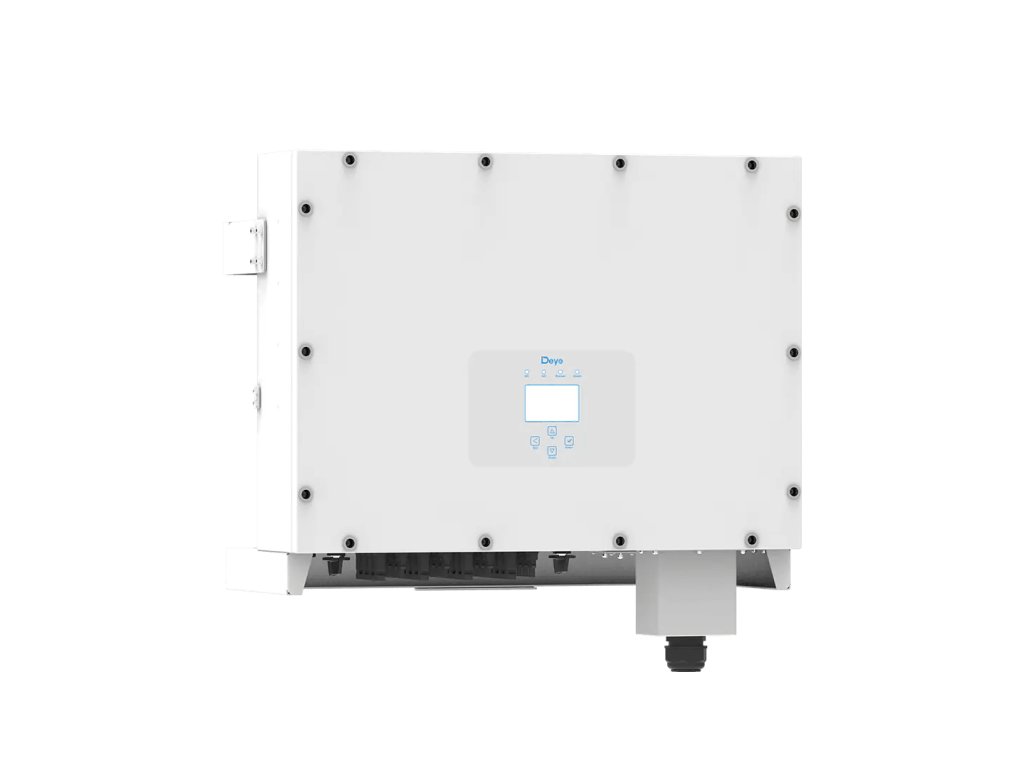

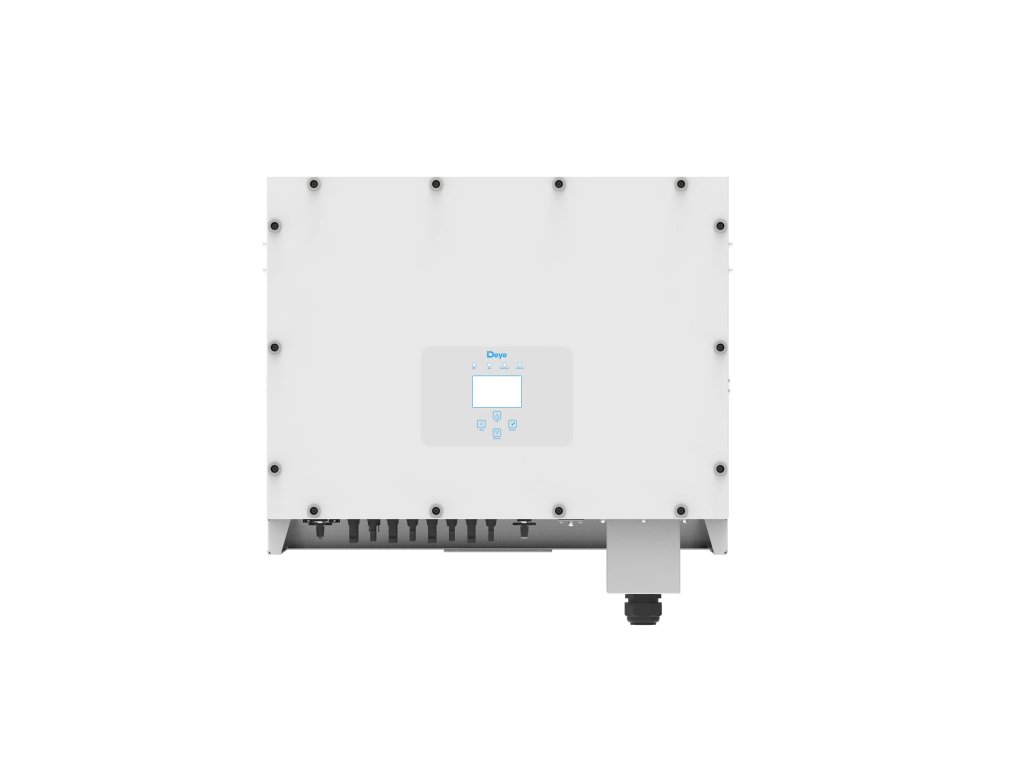

Deye SUN-35K-G-LV
Code: DEYE-SUN-35K-G-LV
Product detailed description
Key Features
- High Efficiency: Achieve a maximum efficiency of 98.7%, maximizing energy production from solar panels and ensuring a high return on investment.
- Flexible String Configurations: The inverter is equipped with four independent Maximum Power Point Trackers (MPPTs) that allow flexible PV string configurations and ensure optimal energy production from different panel setups.
- Wide Output Voltage Range: Operates with a wide output voltage range of 127V/220V and 133V/230V, allowing it to adapt to various grid configurations.
- Anti-PID Function (Optional): Reduces power degradation caused by Potential Degradation (PID), ensuring long-term performance and maximizing the efficiency of your solar system.
- Zero Export and VSG Capability
Zero Export Application: Enables self-consumption of solar energy, reducing grid dependency and minimizing energy costs.
VSG Application: Provides grid support by acting as a Virtual Synchronous Generator (VSG), enhancing grid stability and reliability. - Intelligent String Monitoring (Optional): Provides detailed monitoring of each string, enabling optimal system performance and early detection of potential problems.
Comprehensive protection functions: Includes DC reverse polarity protection, AC output overcurrent and overvoltage protection, short circuit protection, thermal protection and more. - Remote monitoring and control: Offers various communication options, such as GPRS, WIFI, Bluetooth, 4G and LAN (optional), for convenient remote monitoring and control of your solar system.
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 60 kg |
| Brand: | DEYE |
| Lenght: | 297 mm |
| Width: | 700 mm |
| Height: | 575 mm |
| Power: | 35000 W |
| Number of phases: | 3 |
| Degree of protection (IP): | IP65 |
| Communication: | RS485, Wi-Fi, LAN, 4G, Bluetooth, RS232, GPRS |
| Number of MPPT: | 4 |
| String: | 3 per MPPT |
| Type: | Grid tie |
| Voltage converters - DEYE - Model series: | G | 3 Phase | 4 MPPT | Low Voltage |
| Nominal voltage: | 230 V, 133 V |
| Operating voltage: | 200 - 700 VDC |
| Maximum Output Power: | 35000 VA |
Product rating
Be the first who will post an article to this item!
Only registered users may submit ratings. Please log in or sign up.
Discussion
Be the first who will post an article to this item!
Deye (Ningbo Deye Technology Co., Ltd.) is a globally recognized manufacturer of solar inverters and energy storage solutions, serving residential, commercial, and utility-scale markets in over 100 countries. The company's extensive product range includes hybrid inverters, on-grid and off-grid inverters, microinverters, and integrated battery systems, all engineered for maximum efficiency and reliability.
With a strong commitment to intelligent, energy-efficient technology, Deye has earned its reputation as one of the fastest-growing inverter brands worldwide. Their products combine advanced MPPT algorithms, user-friendly monitoring, and robust build quality, making them a trusted choice for solar professionals and homeowners alike.
