    Deye SUN-6K-SG05LP1-EU 6K Hybrid LV 1-phase inverter

    Code: SUN-6K-SG05LP1-EU
    Not rated Rating details

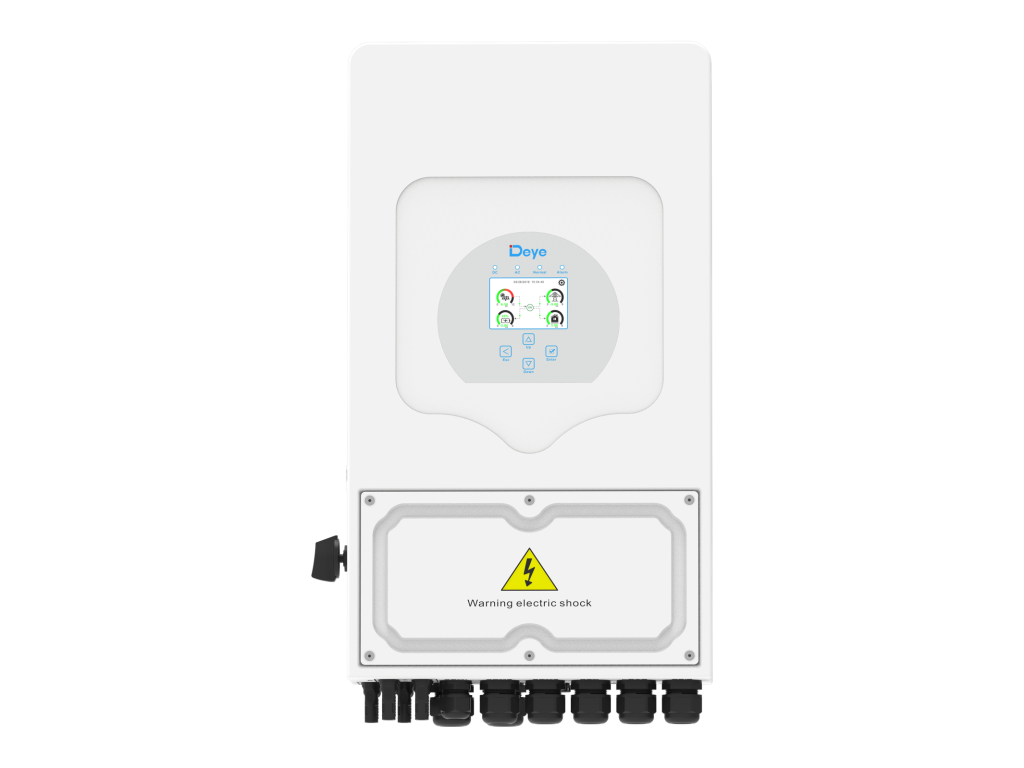

    Front view
    €630,99 €776,12 incl. VAT
    In external warehouse (>10 pcs)
    Delivery to:
    19.06.2026
    6K single-phase hybrid inverter for 48 V low-voltage batteries. Two MPP trackers, colourful touch LCD and parallel operation of up to 16 units, for residential and small commercial energy-storage systems.

    Detailed information

    Fair price
    Fair price
    We offer competitive prices with an emphasis on quality and transparency
    Fast delivery
    Fast delivery
    Products in stock, ships now. Backordered items ship in 5 days.
    Loyalty bonus
    Loyalty bonus
    Regular customers get discounts and bonuses for their loyalty.
    Expert turnkey installation
    Expert turnkey installation
    We provide end-to-end services with a quality guarantee.

    Related products

    Front view
    Deye SUN-3.6K-SG05LP1-EU-AM2P 3.6K Hybrid LV 1-phase inverter
    On request
    €0 incl. VAT
    €0
    SUN-3.6K-SG05LP1-EU-AM2P
    Front view
    Deye SUN-5K-SG05LP1-EU 5K Hybrid LV 1-phase inverter
    In external warehouse (>10 pcs)
    €762,50 incl. VAT
    €619,92
    SUN-5K-SG05LP1-EU
    Front view
    Deye SUN-8K-SG05LP1-EU 8K Hybrid LV 1-phase inverter
    On request
    €0 incl. VAT
    €0
    SUN-8K-SG05LP1-EU
    Front
    Deye SUN-5K-SG03LP1-EU 5kW Hybrid LV 1-phase inverter
    On request
    €0 incl. VAT
    €0
    SUN-5K-SG03LP1-EU
    Front
    Deye SUN-3K-SG04LP1-EU 3kW Hybrid LV 1-phase inverter
    On request
    €0 incl. VAT
    €0
    SUN-3K-SG04LP1-EU
    Show all related products Previous product Next product

    Product detailed description

    Overview

    The Deye SUN-6K-SG05LP1-EU is a 6K single-phase hybrid inverter for 48 V low-voltage battery storage. With two MPP trackers, a colourful touch LCD, 100% backup capability and parallel operation of up to 16 units, it is built for homes and small businesses with energy storage.

    Key Features

    • 6K single-phase (230 V) hybrid inverter, 48 V low-voltage battery
    • 2 MPP trackers, max. PV input voltage 500 V, MPPT range 150-425 V
    • Max. battery charge / discharge current 135 A
    • AC coupling to retrofit existing PV systems; diesel-generator input supported
    • Up to 16 units in parallel for on-grid and off-grid operation
    • 6 configurable charge/discharge time periods; colourful touch LCD
    • Max. efficiency 97.6%, IP65 for indoor and outdoor installation

    Technical Specifications

    Rated AC output power6 000 W
    Max. AC apparent power6600 VA
    PhaseSingle-phase (L+N+PE), 230 V
    Max. PV input power9 600 W
    Max. PV input voltage500 V
    MPP trackers2
    MPPT voltage range150-425 V
    Battery type / voltageLow-voltage Li-ion / lead-acid, 48 V
    Rated / max AC current (in/out)27.3/26.1 A / 30/28.7 A
    Max. charge / discharge current135 A
    Max. efficiency97.6% (Euro 96.5%)
    CommunicationWi-Fi / RS485 / CAN
    Protection ratingIP65
    Operating temperature-40 to +60 °C
    Dimensions (W x H x D)330 x 580 x 232 mm
    Weight24.9 kg
    Warranty5 years (extendable)

    Compatible Batteries

    Works with 48 V low-voltage battery systems. Compatible with Deye LV battery lines (SE-F, RW-F) and a wide range of third-party LV batteries on Deye's official Approved Battery List (Pylontech, BSLBATT, Wattsonic and others). See the attached LV Battery Compatibility List; always confirm the exact model with the supplier.

    Applications

    • Residential and small commercial self-consumption with storage
    • Backup power and off-grid operation (single or parallel up to 16 units)
    • Retrofit AC coupling of existing PV installations

    Additional parameters

    Category: Solar inverters
    Weight: 24.9 kg
    Brand: DEYE
    Lenght: 232 mm
    Width: 330 mm
    Height: 580 mm
    Power: 6000 W
    Number of phases: 1
    Degree of protection (IP): IP65
    Communication: RS485, CAN, Wi-Fi
    Number of MPPT: 2
    String: 1 + 1
    Type: Hybrid
    Voltage converters - DEYE - Model series: SG05LP1-EU | 1 Phase | 2 MPPT
    Nominal voltage: 230 V
    Operating voltage: 150-425 VDC
    Maximum Output Power: 6600 VA
