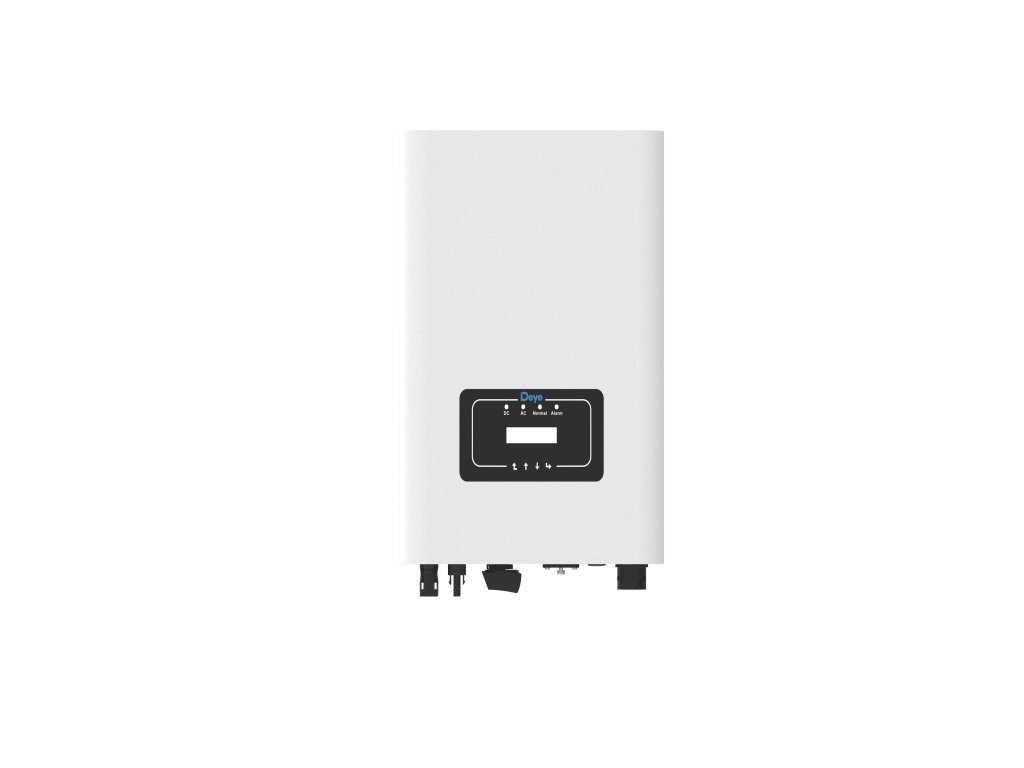

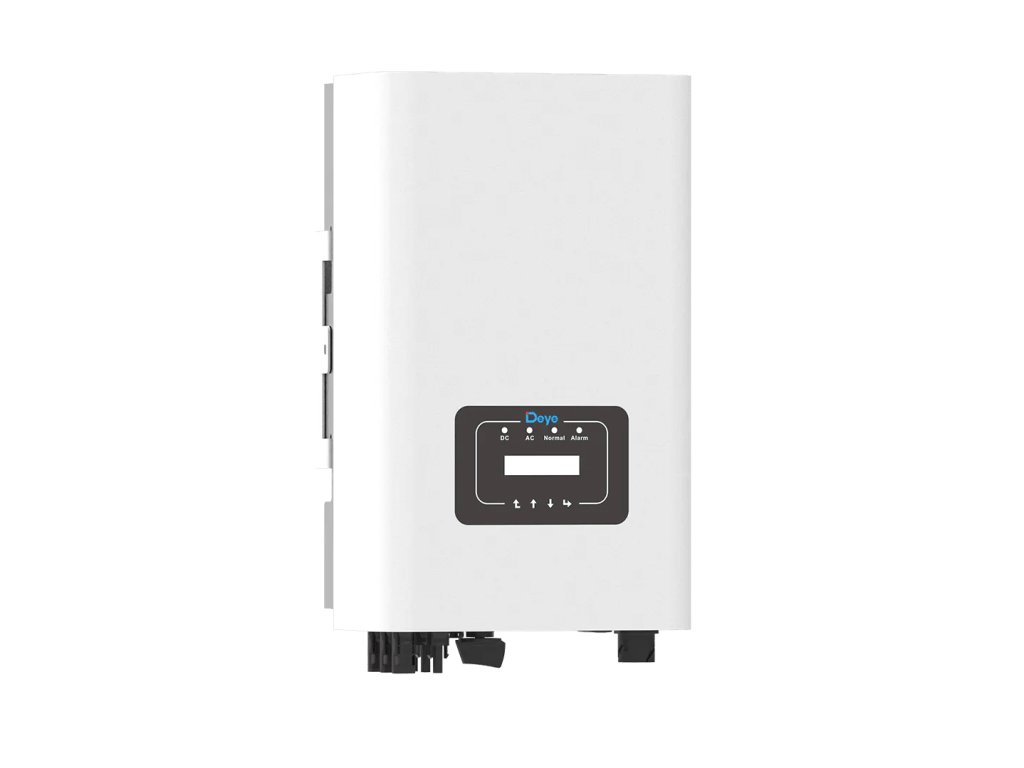

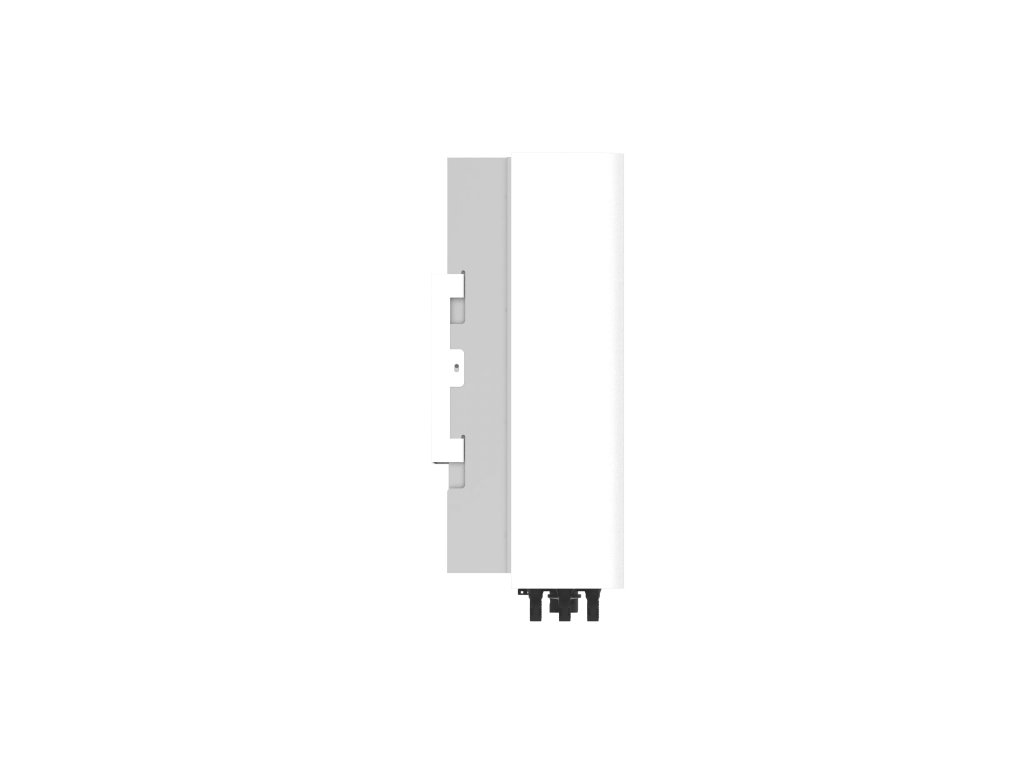

Deye SUN-8K-G06-LV
Code: DEYE-SUN-8K-G06-LV
Product detailed description
Key Features:
High Efficiency: Achieves maximum efficiency up to 98.5% with dual MPPT trackers, ensuring maximum power output from solar panels.
Low Start-up Voltage: Starts up at a low voltage of 250V, allowing for optimal performance even in low light conditions.
Zero Export Application: Supports zero export function, allowing you to control power consumption and maximize self-consumption.
VSG Application: Enables voltage support functions, contributing to grid stability.
Intelligent String Monitoring: Offers optional intelligent string monitoring for advanced system diagnostics.
Wide Output Voltage Range: Provides flexible output voltage to be compatible with various grid configurations.
Anti-PID Function: Optional anti-PID function helps prevent power degradation caused by PID phenomenon in PV modules.
Comprehensive Protection: Includes DC reverse polarity protection, AC output overcurrent/overvoltage protection, short circuit protection, thermal protection and surge protection.
Monitoring and Communication: Supports various communication interfaces including GPRS/WIFI/Bluetooth/4G/LAN (optional), RS485/RS232 and monitoring modes.
Three-phase System: Supports 127V/220V and 133V/230V with 50/60Hz frequency.
Natural Cooling: It is equipped with a natural cooling system for optimal heat dissipation and reliable operation.
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 11 kg |
| Brand: | DEYE |
| Lenght: | 178 mm |
| Width: | 283 mm |
| Height: | 463 mm |
| Power: | 8000 W |
| Number of phases: | 3 |
| Degree of protection (IP): | IP65 |
| Communication: | RS485, Wi-Fi, LAN, 4G, Bluetooth, RS232, GPRS |
| Number of MPPT: | 2 |
| String: | 1 + 2 |
| Type: | Grid tie |
| Voltage converters - DEYE - Model series: | G06 | 3 Phase | 2 MPPT | Low Voltage |
| Nominal voltage: | 230 V, 133 V |
| Operating voltage: | 200 - 700 VDC |
| Maximum Output Power: | 8000 VA |
