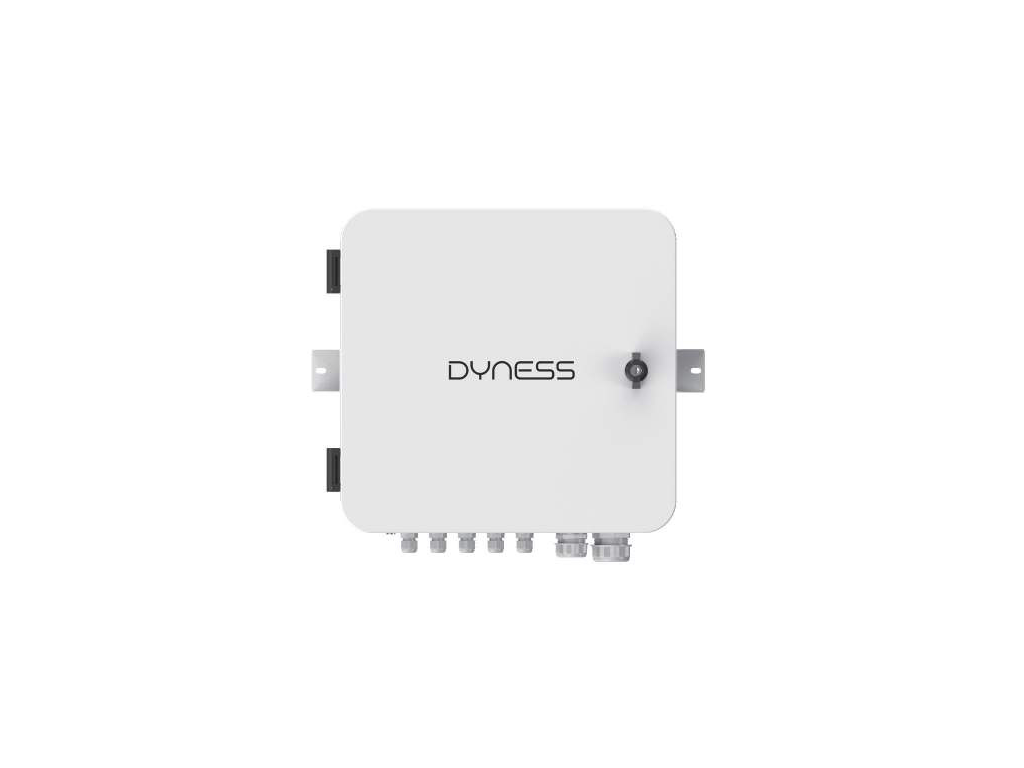

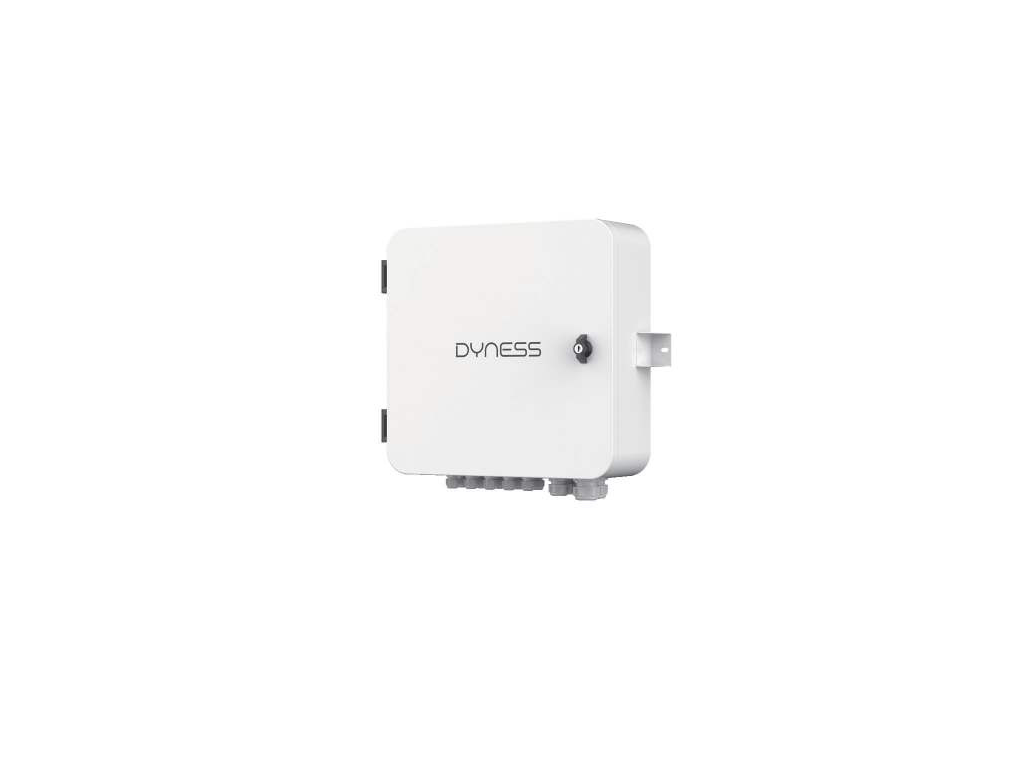

Dyness DCB-5-50-HV HV Battery Combiner Box (5-in / 2-out)
Code: DCB-5-50-HV
Related products
Product detailed description
Overview
The Dyness DCB-5-50-HV is a high-voltage DC combiner box that parallels up to five Dyness Tower Pro battery clusters into two common outputs feeding the inverter/PCS. It lets installers scale storage capacity safely without running every battery string directly to the inverter, and its IP65 enclosure allows both indoor and outdoor wall mounting.
Key Features
- 5 inputs / 2 outputs – connect up to five HV battery clusters in parallel to meet a wide range of capacity requirements.
- Robust high-current handling with a 200 A maximum input and 40 A per single channel for reliable operation.
- Wide 160–650 V DC operating window matched to high-voltage residential and commercial storage systems.
- IP65-rated, waterproof and dustproof enclosure suitable for diverse indoor and outdoor environments.
- Compact, lightweight 13 kg design for quick wall-mounted installation.
Technical Specifications
| Rated Input Voltage | DC 160 V – 650 V |
| Max. Input Current | 200 A |
| Single-channel Max. Current | 40 A |
| Input Circuits | 5 |
| Output Circuits | 2 |
| Protection Level | IP65 |
| Operating Temperature | -20 °C to +60 °C |
| Installation | Wall-mounted |
| Dimensions (W × H × D) | 545 × 450 × 150 mm |
| Net Weight | 13 kg |
Compatible Batteries
- Dyness Tower Pro series (TP7, TP11, TP15, TP19, TP23)
Applications
- Paralleling multiple HV battery clusters in residential energy storage
- Commercial and industrial battery storage requiring expanded capacity
- Indoor or outdoor installations needing an IP65-rated DC combiner
Additional parameters
| Category: | Batteries for photovoltaics |
|---|---|
| Weight: | 13 kg |
| Brand: | Dyness |
| Lenght: | 150 mm |
| Width: | 545 mm |
| Height: | 450 mm |
| Degree of protection (IP): | IP65 |
| Nominal Current: | 200 A |
