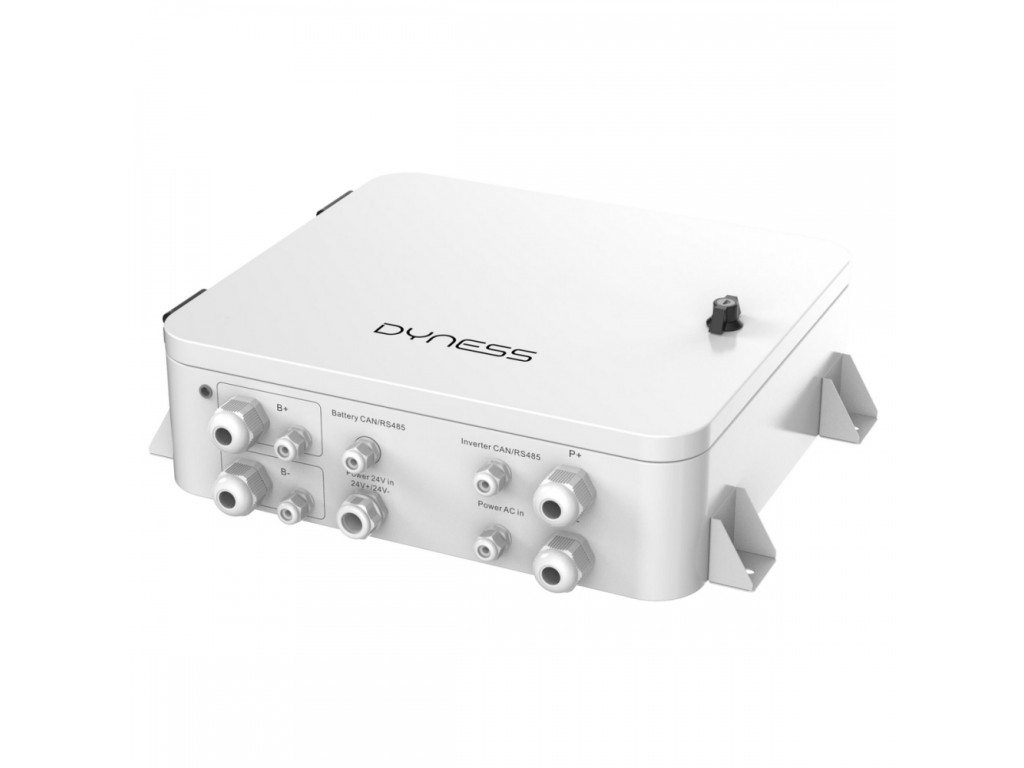

Dyness Tower Combiner Box DCB-TW65-5U
Code: DCB-TW65-5U
Related products
Product detailed description
Secure Parallel Connection

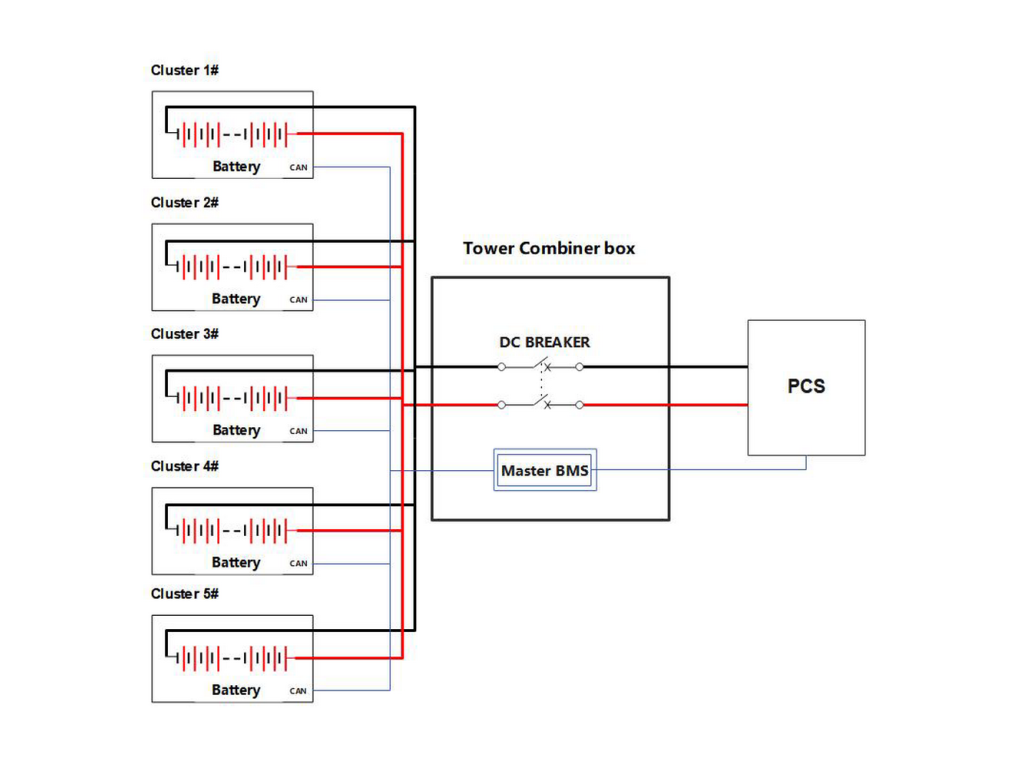

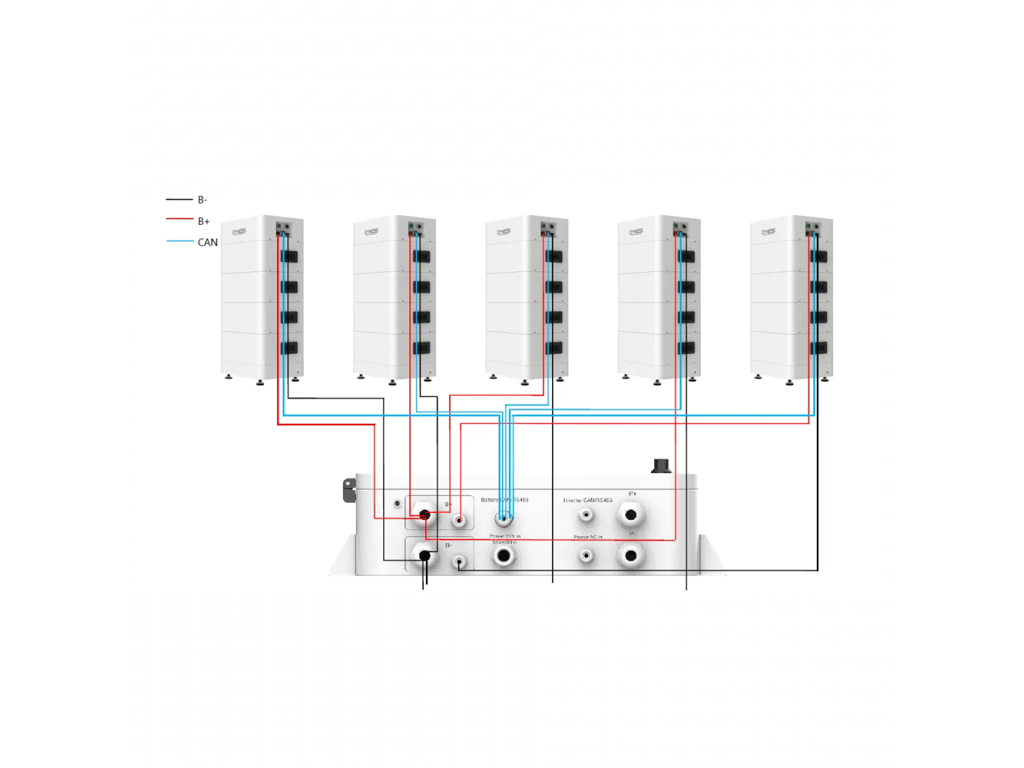

Supports up to 5 Dyness Tower HV battery clusters in a single high-voltage system, significantly increasing total system capacity while maintaining electrical stability.
IP65 Protection
Fully dust-tight and protected against water jets, allowing installation in sheltered outdoor environments as well as indoor setups.

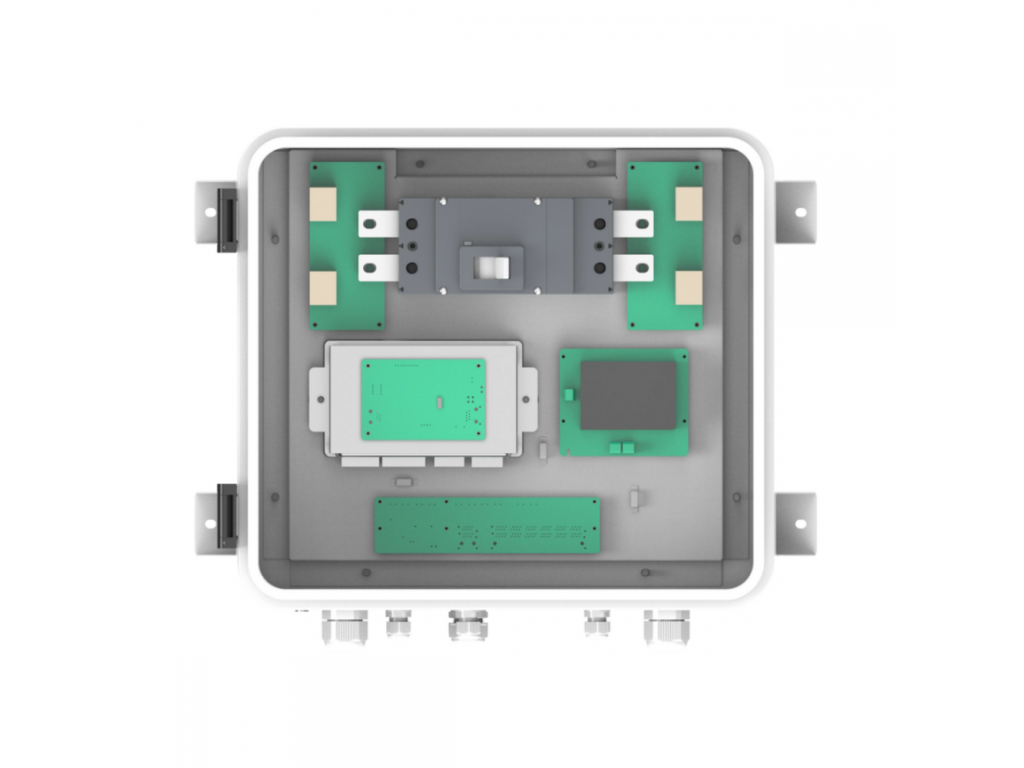

Integrated DC Fusing
Built-in overcurrent and short-circuit protection for each connected battery cluster, ensuring safe and reliable operation.
Up to 1000V DC Compatibility
Designed to handle high-voltage DC bus requirements of modern energy storage systems.
Robust Industrial Design
Segregated inputs and internal protection help keep the system stable even if one stack is offline or under service.
Easy Installation
IP65-rated cable glands for sealed cable entry, clear labeling, and comprehensive installation manual included.
Additional parameters
| Category: | Accessories for batteries |
|---|---|
| Weight: | 14 kg |
| EAN: | 6975334550528 |
| Brand: | Dyness |
| Lenght: | 580 mm |
| Width: | 480 mm |
| Height: | 170 mm |
| Degree of protection (IP): | IP65 |
| Max DC Voltage: | 1000V DC |
| Max Tower Clusters: | 5 |
| Compatible With: | Dyness Tower HV Battery Series |
| Features: | Integrated DC fuses, IP65 cable glands, overcurrent & short-circuit protection |
