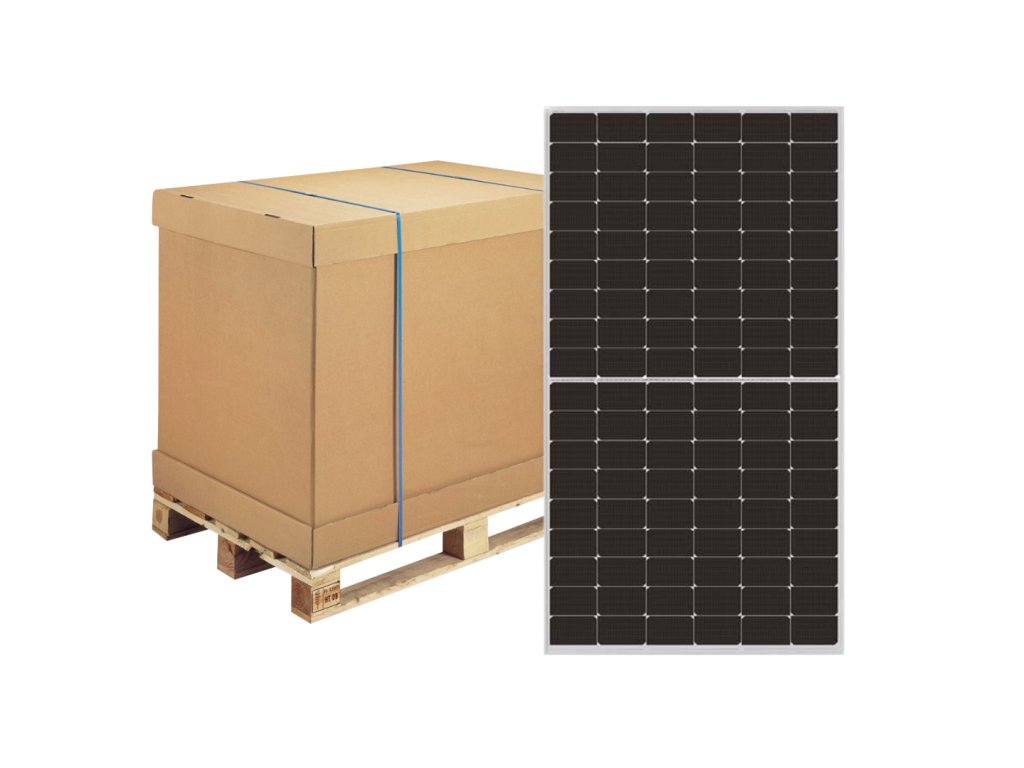

Jinko Solar TigerNeo JKM440N-54HL4R-V-BF (JK03M, Black frame)
Code: JKM440N-54HL4R-V-JK03M
Product detailed description
SMBB technology
Improved light trapping and current draw to increase module performance and reliability.
PID immunity
Guarantee superior Anti-PID performance through optimized mass production process and materials control.
Resistance to extreme environmental conditions
High resistance to salt fog and ammonia.
Hot 2.0 technology
N-type module with Hot 2.0 technology has higher reliability and lower LID/LETID.
Increased mechanical load
Certified to withstand: wind load (4000 Pascals) and snow load (6000 Pascals).
LINEAR PERFORMANCE GUARANTEE
15-year product warranty
30-year linear performance warranty
0.40% annual degradation over 30 years
Certifications
- IEC61215(2016), IEC61730(2016)
- ISO9001:2015: quality management system
- ISO14001:2015: environmental management system
- ISO45001:2018: Occupational health and safety management systems
Additional parameters
| Category: | Photovoltaic modules |
|---|---|
| Weight: | 21 kg |
| Brand: | Jinko Solar |
| Lenght: | 1762 mm |
| Width: | 1134 |
| Height: | 30 |
| Power: | 440 W |
| Frame color: | Black |
| Module Type: | Monofacial |
| Connector: | JK03M |
| Cell: | N-Type Monocrystalline |
| Cell arrangement: | 108 [2 X (9 X 6) ] |
| Front layer: | 3.2 mm, anti-reflective coating, high permeability, low iron content, tempered glass |
| Frame: | Anodized aluminum alloy |
| J-Box: | IP68 Rated |
| Cable: | TUV 1×4.0mm2 (+): 400mm , (-): 200mm |
| Pallet: | 36 pcs |
| Container (40' HQ): | 936 pcs |
