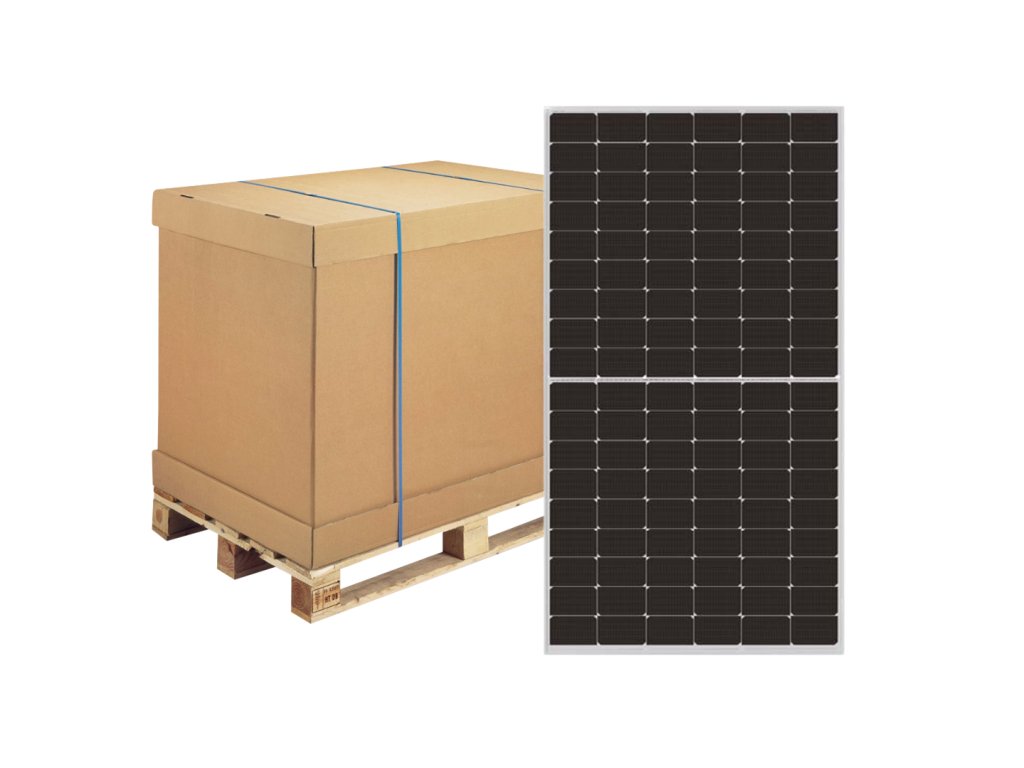

Jinko Solar TigerNeo JKM485N-60HL4-MR-V (JK03M, Black Frame)
Code: JKM485N-60HL4-MR-V
Product detailed description
SMBB technology
Improved light trapping and current draw to increase module performance and reliability.
PID immunity
Guarantee superior Anti-PID performance through optimized mass production process and materials control.
Resistance to extreme environmental conditions
High resistance to salt fog and ammonia.
Hot 2.0 technology
N-type module with Hot 2.0 technology has higher reliability and lower LID/LETID.
Increased mechanical load
Certified to withstand: wind load (2400 Pascals) and snow load (5400 Pascals).
LINEAR PERFORMANCE GUARANTEE
12-year product warranty
30-year linear performance warranty
0.40% annual degradation over 30 years
Certifications
IEC61215(2016), IEC61730(2016)
ISO9001:2015: quality management system
ISO14001:2015: environmental management system
ISO45001:2018: Occupational health and safety management systems
Additional parameters
| Category: | Photovoltaic modules |
|---|---|
| Weight: | 22.5 kg |
| Brand: | Jinko Solar |
| Lenght: | 1906 mm |
| Width: | 1134 mm |
| Height: | 30 mm |
| Power: | 485 W |
| Frame color: | Black |
| Module Type: | Monofacial |
| Connector: | JK03M |
| Cell: | N-Type Monocrystalline |
| Cell arrangement: | 120 [2 X (10 X 6) ] |
| Front layer: | 3.2 mm, anti-reflective coating, high permeability, low iron content, tempered glass |
| Frame: | Anodized aluminum alloy |
| J-Box: | IP68 Rated |
| Cable: | TUV 1×4.0mm2 (+): 400mm , (-): 200mm |
| Pallet: | 36 pcs |
| Container (40' HQ): | 864 pcs |
-
Jinko Solar TigerNeo JKM485N-60HL4-V (JK03M, Black Frame) Datasheet (EN) (1.7 MB)
-
Jinko Solar TigerNeo JKM485N-60HL4-V (JK03M, Black Frame) Manual (EN) (2.6 MB)
-
Jinko Solar TigerNeo JKM485N-60HL4-V (JK03M, Black Frame) OM Manual (EN) (59.7 MB)
