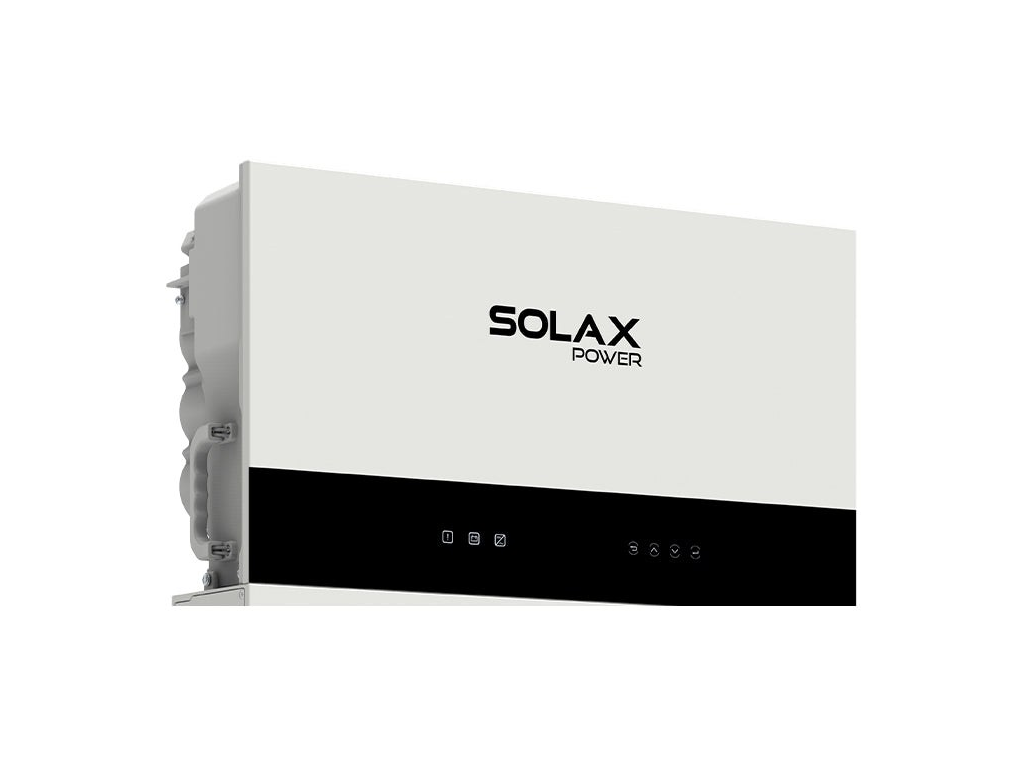

SolaX X1-IES-3K 3kW All-in-One Hybrid Inverter (1-phase)
Code: X1-IES-3K
Related products
Product detailed description
Overview
SolaX X1-IES-3K - 3 kW single-phase all-in-one hybrid inverter (X1-IES) for stackable LFP battery storage. IP66, EPS backup.
Key Features
- 3 kW single-phase all-in-one hybrid inverter (X1-IES)
- Modular: stacks with SolaX IES LFP battery modules
- HV battery 80-480 V, 50 A charge/discharge, >6000 cycles
- EPS off-grid backup
- IP66, AFCI + DC arc protection
- Max. efficiency 97.6%
Technical Specifications
| System type | All-in-one hybrid inverter (X1-IES) for stackable battery |
| Rated AC output power | 3 kW |
| Max. AC apparent power | 3300 VA |
| Rated output current | 13.1 A |
| Phase | Single-phase (1/N/PE), 220/230/240 V |
| No. of MPP trackers | 2 |
| Battery type / voltage | Lithium LFP, 80-480 V |
| Max. charge / discharge current | 50 A |
| EPS (off-grid) output | yes, with battery |
| Max. efficiency | 97.6% |
| Communication | CAN / RS485 |
| Protection rating | IP66 |
| Cooling | Natural cooling |
| Dimensions (W x H x D) | 717 x 350 x 210 mm |
| Weight | 26.4 kg |
| Certifications | CE, RCM, TUV (IEC62619), RoHS, REACH |
Compatible Batteries
Designed for the matching SolaX IES stackable battery modules. Always confirm the exact configuration with the supplier.
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 26.4 kg |
| Brand: | SolaX |
| Power: | 3000 W |
| Number of phases: | 1 |
| Degree of protection (IP): | IP66 |
| Number of MPPT: | 2 |
| Type: | Hybrid |
