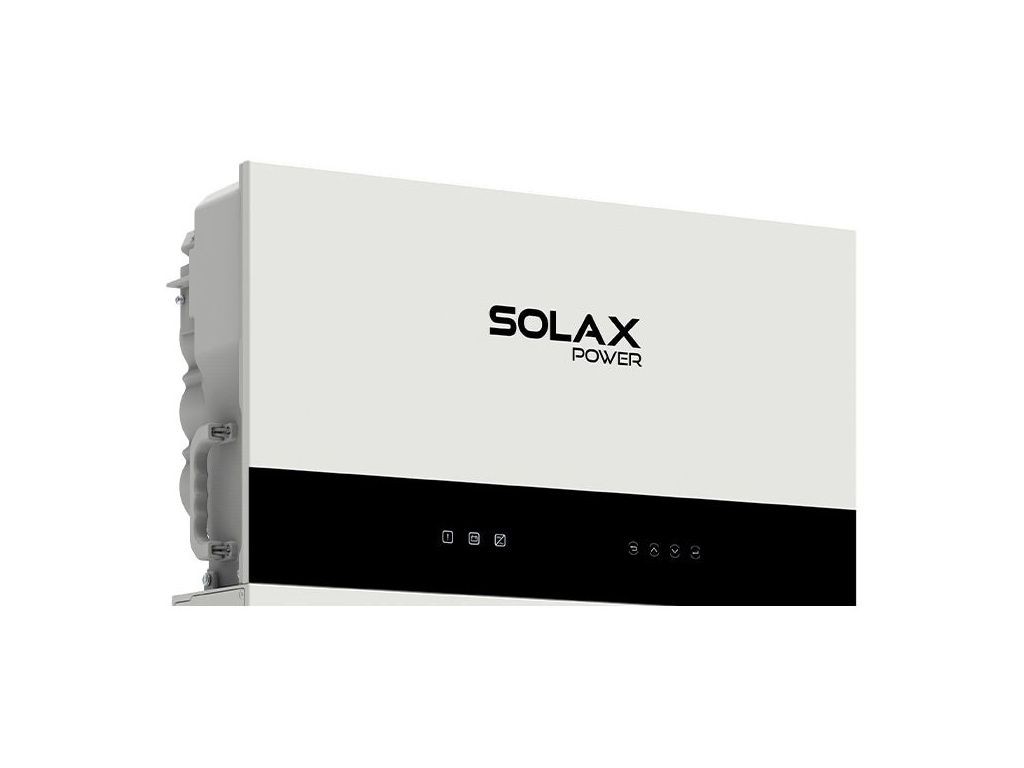

SolaX X1-IES-8K 8kW All-in-One Hybrid Inverter (1-phase)

Code: X1-IES-8K

Not rated Rating details

Brand: SolaX Power

€0 €0 incl. VAT

SolaX X1-IES-8K - 8 kW single-phase all-in-one hybrid (X1-IES) for stackable LFP battery storage. IP66, EPS backup.

Detailed information

Fair price

We offer competitive prices with an emphasis on quality and transparency

Fast delivery

Products in stock, ships now. Backordered items ship in 5 days.

Loyalty bonus

Regular customers get discounts and bonuses for their loyalty.

Expert turnkey installation

We provide end-to-end services with a quality guarantee.

Product detailed description

Overview

SolaX X1-IES-8K - 8 kW single-phase all-in-one hybrid inverter (X1-IES) for stackable LFP battery storage. IP66, EPS backup.

Key Features

8 kW single-phase all-in-one hybrid inverter (X1-IES)
Modular: stacks with SolaX IES LFP battery modules
HV battery 80-480 V, 50 A charge/discharge, >6000 cycles
EPS off-grid backup
IP66, AFCI + DC arc protection
Max. efficiency 97.6%

Technical Specifications

System type	All-in-one hybrid inverter (X1-IES) for stackable battery
Rated AC output power	8 kW
Max. AC apparent power	8000 VA
Rated output current	34.8 A
Phase	Single-phase (1/N/PE), 220/230/240 V
No. of MPP trackers	2
Battery type / voltage	Lithium LFP, 80-480 V
Max. charge / discharge current	50 A
EPS (off-grid) output	yes, with battery
Max. efficiency	97.6%
Communication	CAN / RS485
Protection rating	IP66
Cooling	Natural cooling
Dimensions (W x H x D)	717 x 350 x 210 mm
Weight	27.0 kg
Certifications	CE, RCM, TUV (IEC62619), RoHS, REACH

Compatible Batteries

Designed for the matching SolaX IES stackable battery modules. Always confirm the exact configuration with the supplier.

Additional parameters

Category:	Solar inverters
Weight:	27 kg
Brand:	SolaX
Power:	8000 W
Number of phases:	1
Degree of protection (IP):	IP66
Number of MPPT:	2
Type:	Hybrid

SolaX X1-IES Datasheet (PDF)
