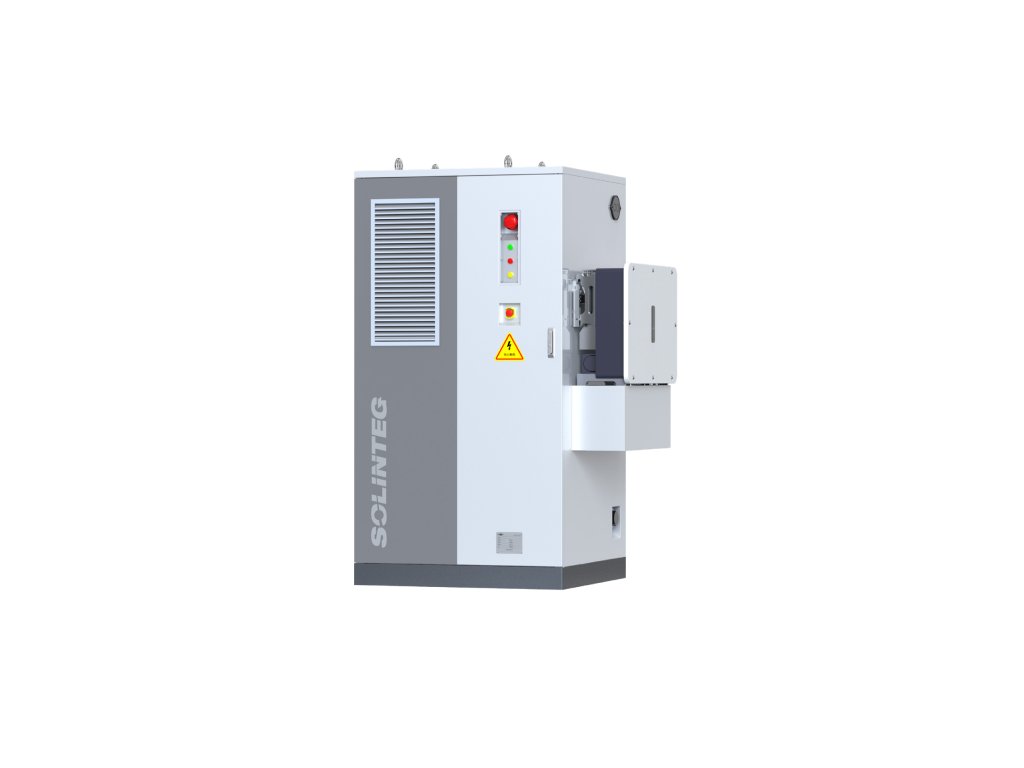

Solinteg E2BR-S112-C Battery
Code: SOLINTEG-E2BR-S112-C
Product detailed description
Maximized Energy Harvesting
- Maximized Energy Harvesting
- 20A PV input current per string and 4 MPPTs ensure efficient solar capture
- Expandable battery capacity up to 225 kWh for growing energy needs
- 150A high-speed charging/discharging enables optimal energy flow
- Supports 100% unbalanced load for improved self-consumption
- Compatible with both on-grid and off-grid parallel installations
Engineered for Versatility
-
Supports half-wave loading for a wide range of applications
-
Delivers 120% backup power for 60 seconds to handle load spikes
-
Smart Load Control enables support for EV chargers, heat pumps, and intelligent appliances
-
Built-in DG port allows energy storage from diesel generators
-
AC coupling capability makes it ideal for retrofitting existing solar systems
Reliable Security & Protection
-
Advanced four-level fire protection system ensures safety in critical environments
-
IP66-rated inverter and IP55-rated battery cabinet for robust indoor/outdoor performance
-
Type II surge protection devices on both AC and DC sides safeguard your equipment
Intelligent Energy Management
-
Remote firmware upgrades ensure long-term system reliability and performance
-
Five flexible operating modes tailored to diverse energy strategies
-
SuperToU Station Management supports dynamic, customizable scheduling and pricing
-
Compatible with dynamic pricing models to maximize cost efficiency
Additional parameters
| Category: | Commercial Energy Storage |
|---|---|
| Weight: | 1690 kg |
| Brand: | Solinteg |
| Lenght: | 1140 mm |
| Width: | 1377 mm |
| Height: | 2355 mm |
| Degree of protection (IP): | IP55, IP65 |
| Communication: | RS485, CAN, Wi-Fi, LAN |
| Nominal voltage: | 358.4 V |
| Operating voltage: | 280-408.8 V |
| Battery type: | High voltage |
| Usable energy: | 112.5 kWh |
| Max. battery charge current: | 150 A |
-
Solinteg E2BR-S112-C Battery Datasheet (2.1 MB)
-
Solinteg E2BR-S112-C Battery Intelligent Scheduling (10.3 MB)
Be the first who will post an article to this item!
Only registered users may submit ratings. Please log in or sign up.
Be the first who will post an article to this item!
Solinteg (Wuxi Solinteg Power Co., Ltd.) is a global manufacturer of high-performance solar inverters, energy storage systems, and smart energy management solutions. The company's product range covers hybrid inverters, on-grid inverters, lithium-ion battery systems, and intelligent monitoring platforms, designed for residential, commercial, and utility-scale applications.
With a strong investment in R&D and a focus on delivering cutting-edge photovoltaic technology, Solinteg products help customers worldwide reduce energy costs, achieve grid independence, and transition to sustainable power with confidence and reliability.
