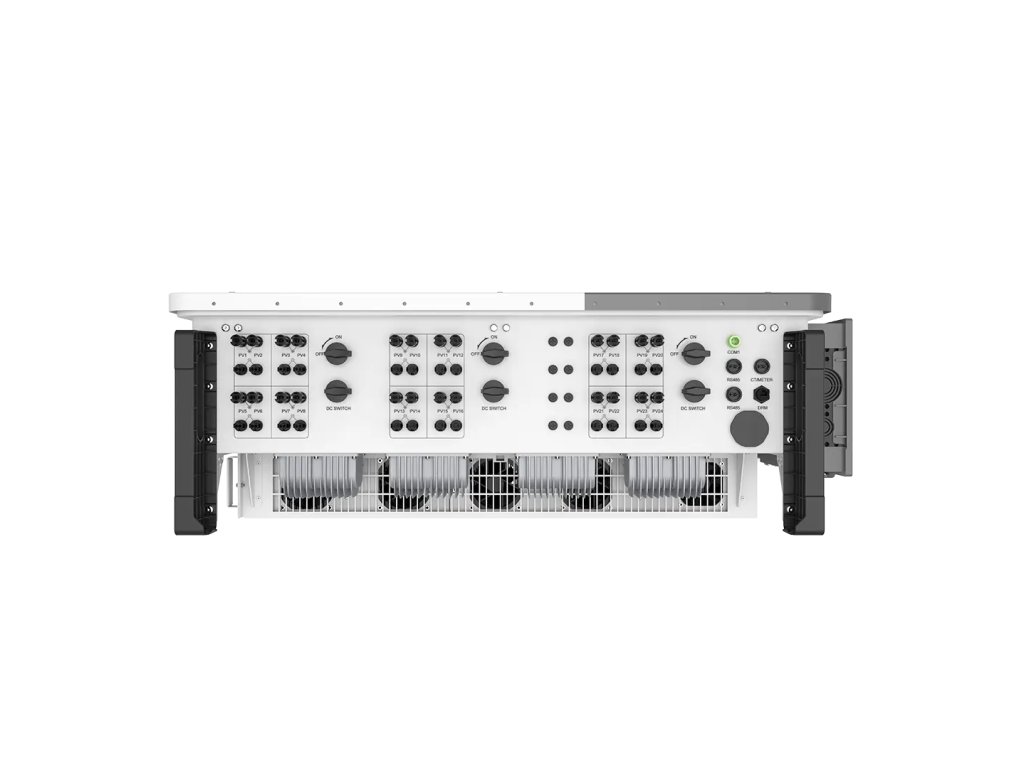

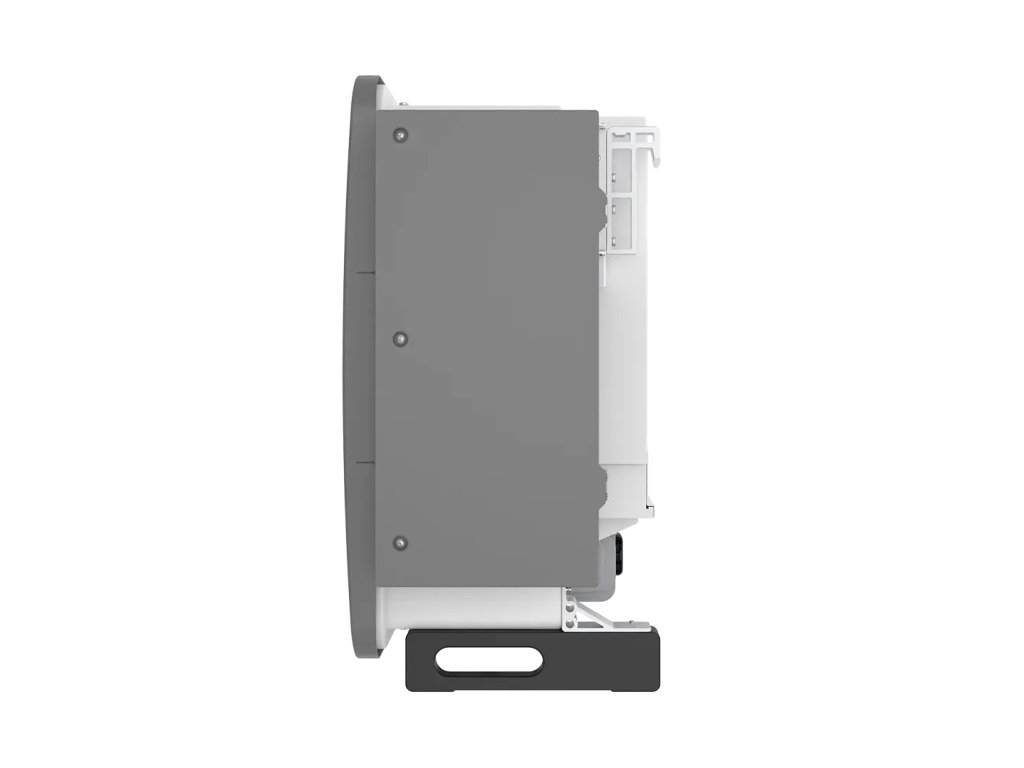

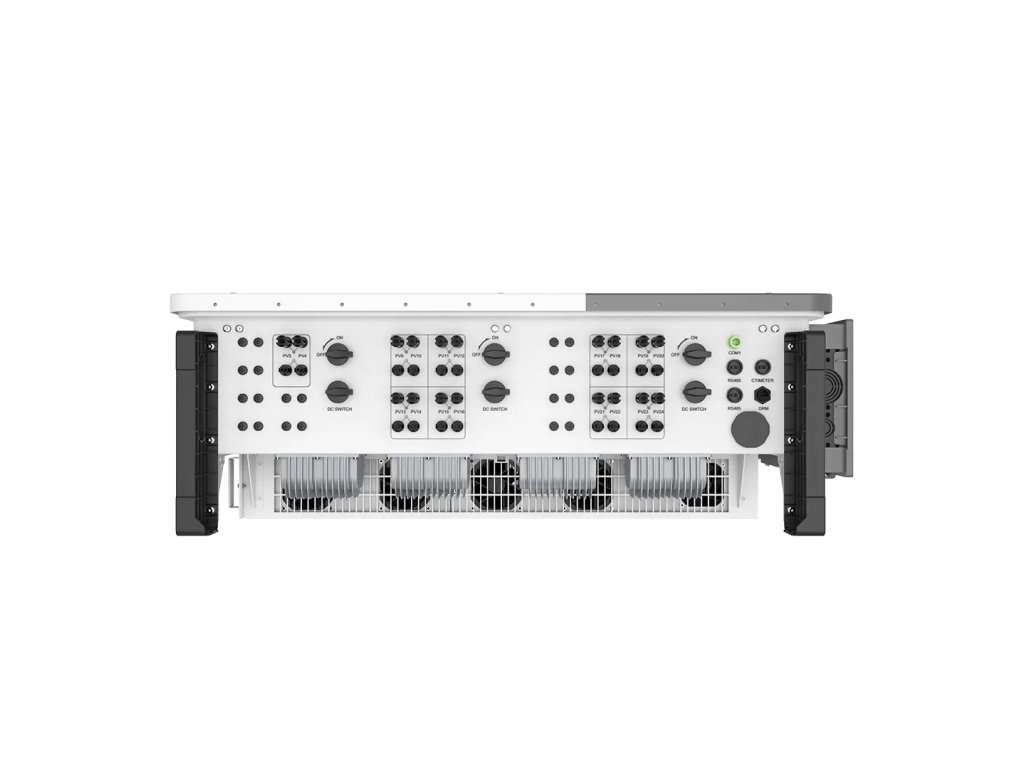

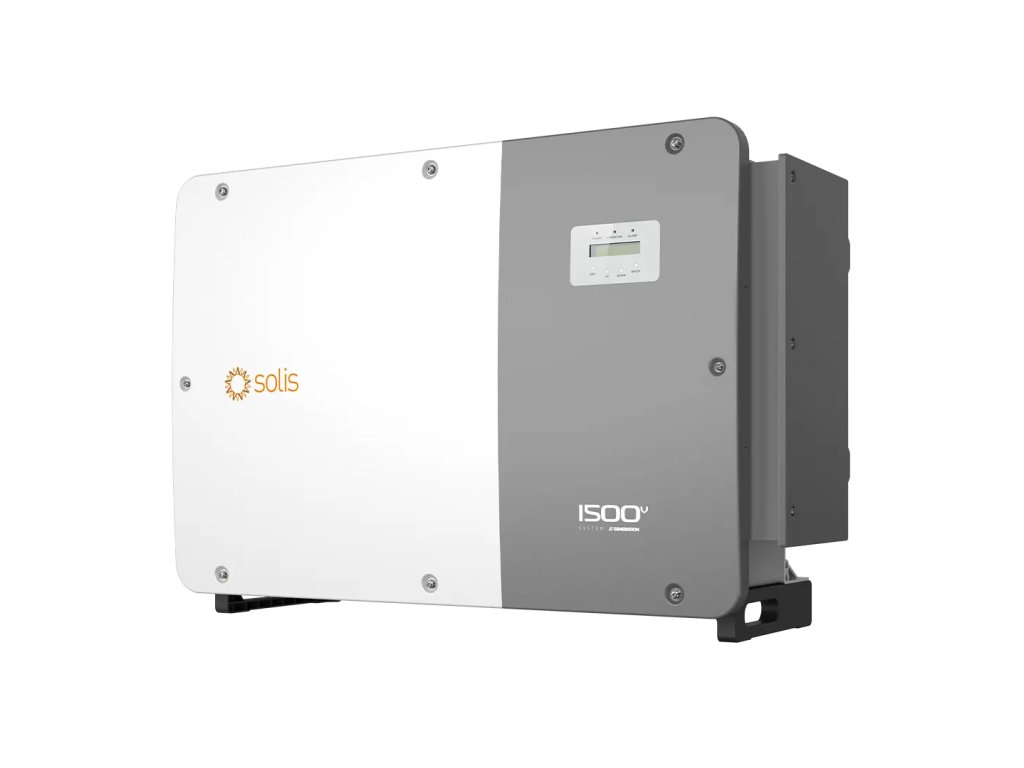

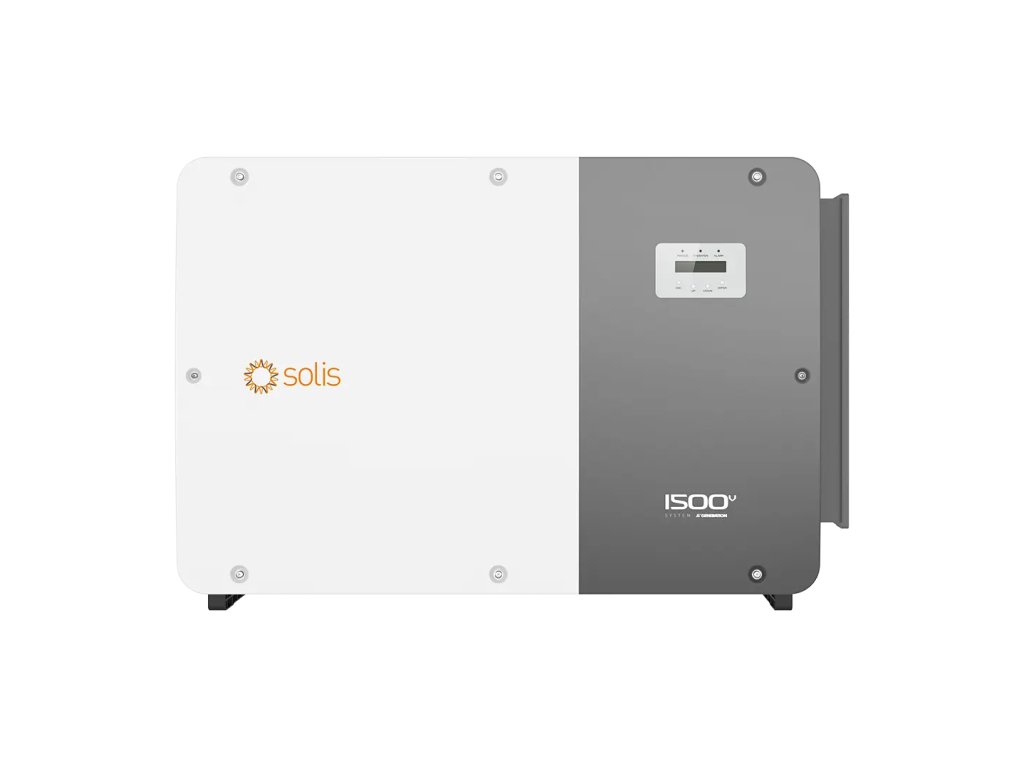

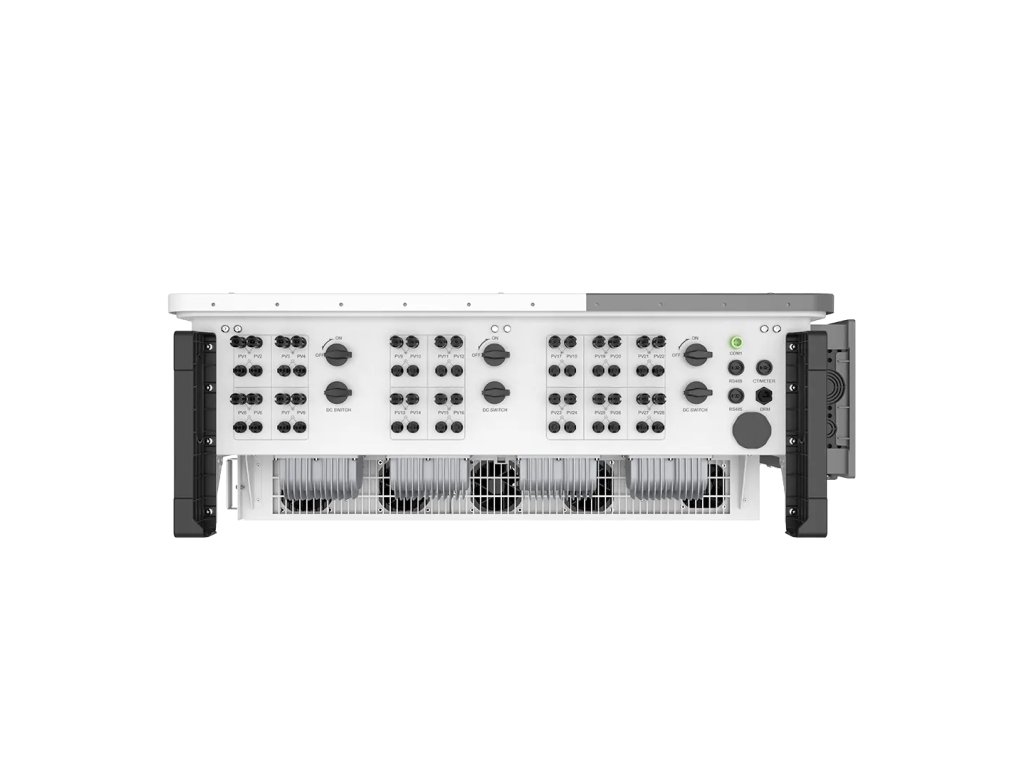

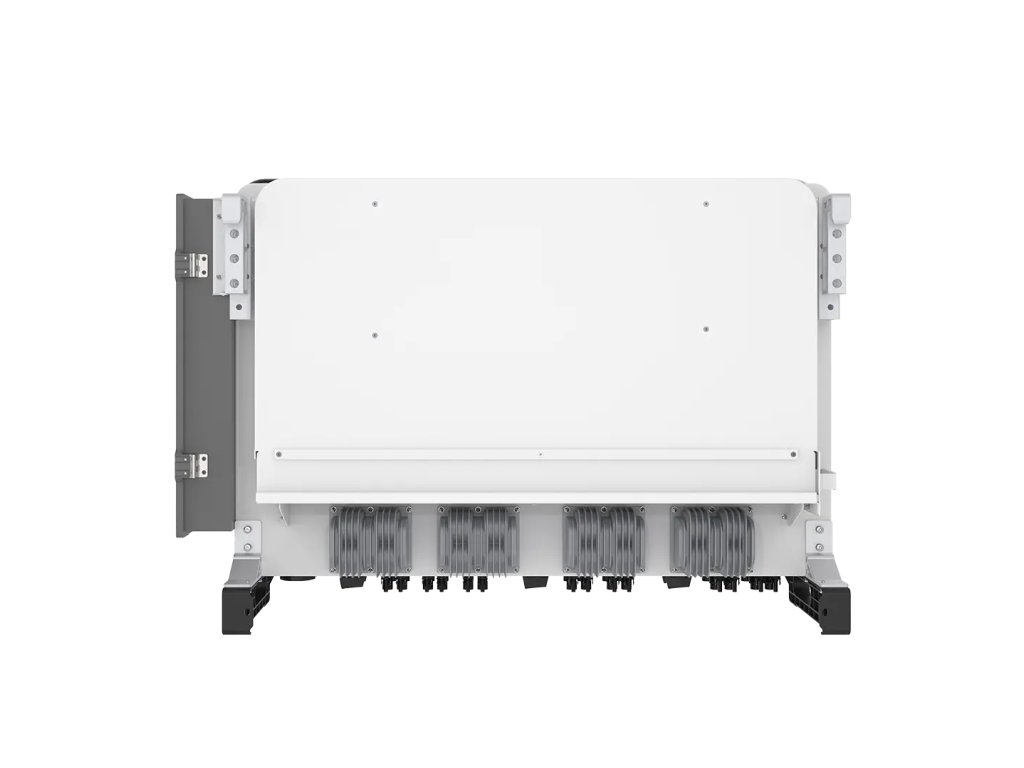

Solis-255K-EHV-5G-PLUS
Code: SOLIS-255K-EHV-5G-PLUS
Product detailed description
Key Features
- > 150% DC/AC ratio
- Night SVG function
- IP66
- 9/12/14 MPPTs, max. efficiency 99.0%
- DC side supports "Y" connector
- High power tracking density 56MPPT/MW
- Compatible with 550W+ bifacial modules
- Fuse free design, safe and maintenance free
- Power line communication (PLC) (optional)
- Intelligent string monitoring, smart I-V curve scan
- Remote firmware upgrade with simple operation
- Built-in PID recovery for better module performance
- Globally recognised branded componentry forlonger life
- Certified by TÜV Rheinland with VDE-AR-N4130, supporting grid connectionsat Extra High Voltages ≥150kV for enhanced grid adaptability
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 113 kg |
| Brand: | Solis |
| Lenght: | 384 mm |
| Width: | 1125 mm |
| Height: | 770 mm |
| Power: | 255000 W |
| Number of phases: | 3 |
| Degree of protection (IP): | IP66 |
| Communication: | RS485, PLC |
| Warranty: | 5 |
| Number of MPPT: | 14 |
| String: | Up to 2 per MPPT |
| Type: | Grid tie |
| Maximum output current: | 552 A |
| Nominal voltage: | 800 V |
Product rating
Be the first who will post an article to this item!
Only registered users may submit ratings. Please log in or sign up.
Discussion
Be the first who will post an article to this item!
Solis, a brand of Ginlong Technologies (founded in 2005), is one of the world's largest and most experienced solar inverter manufacturers. With millions of units deployed globally, Solis offers a complete range of string inverters for residential, commercial, and utility-scale applications, all backed by rigorous international certifications and a proven track record of reliability.
Known for delivering outstanding value, Solis inverters combine high conversion efficiency, smart monitoring capabilities, and robust build quality at competitive price points. Whether for a single rooftop installation or a multi-megawatt solar farm, Solis provides dependable power conversion you can count on. Explore the full range of Solis inverters, including hybrid inverters for solar-plus-storage systems.
