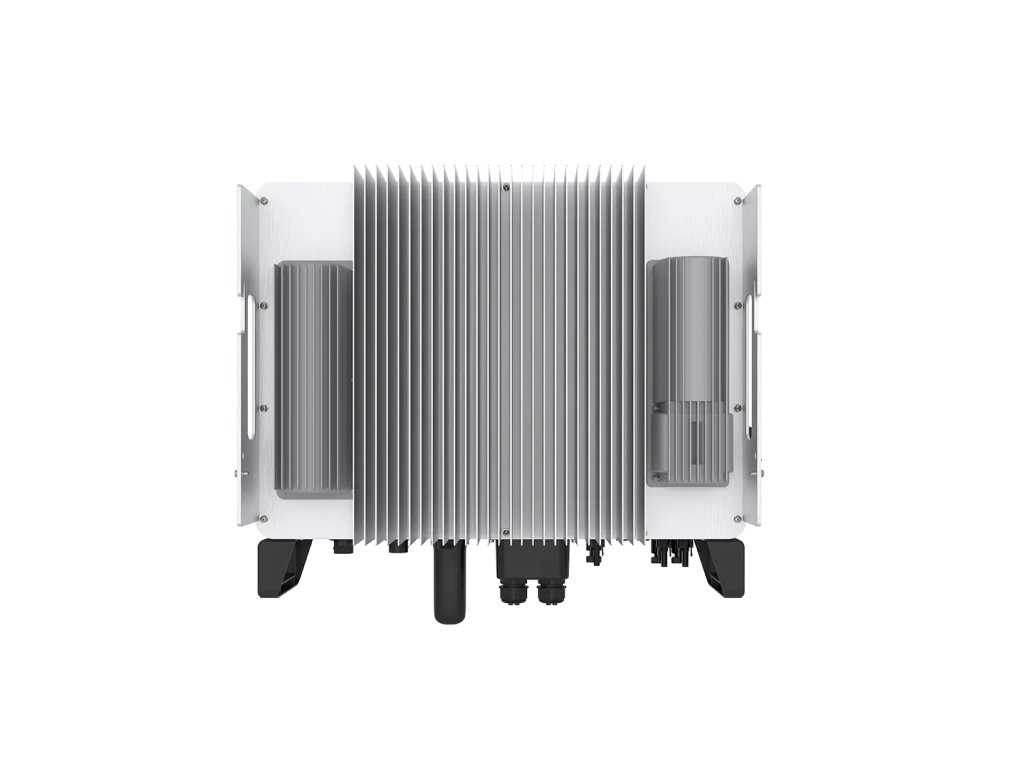

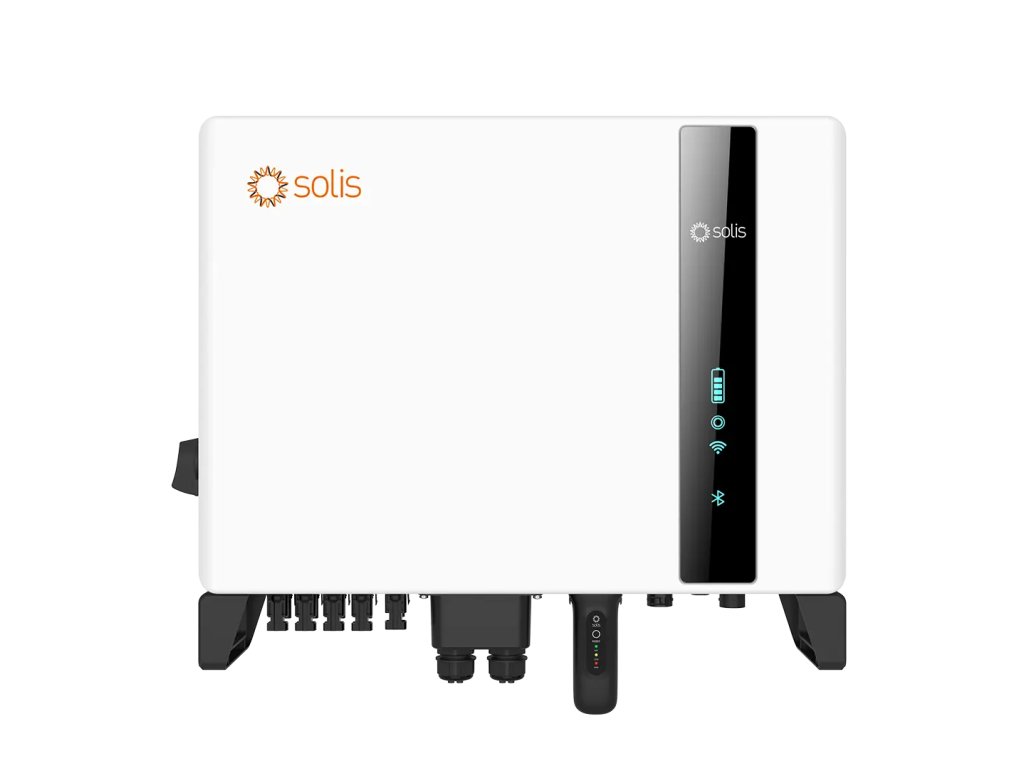

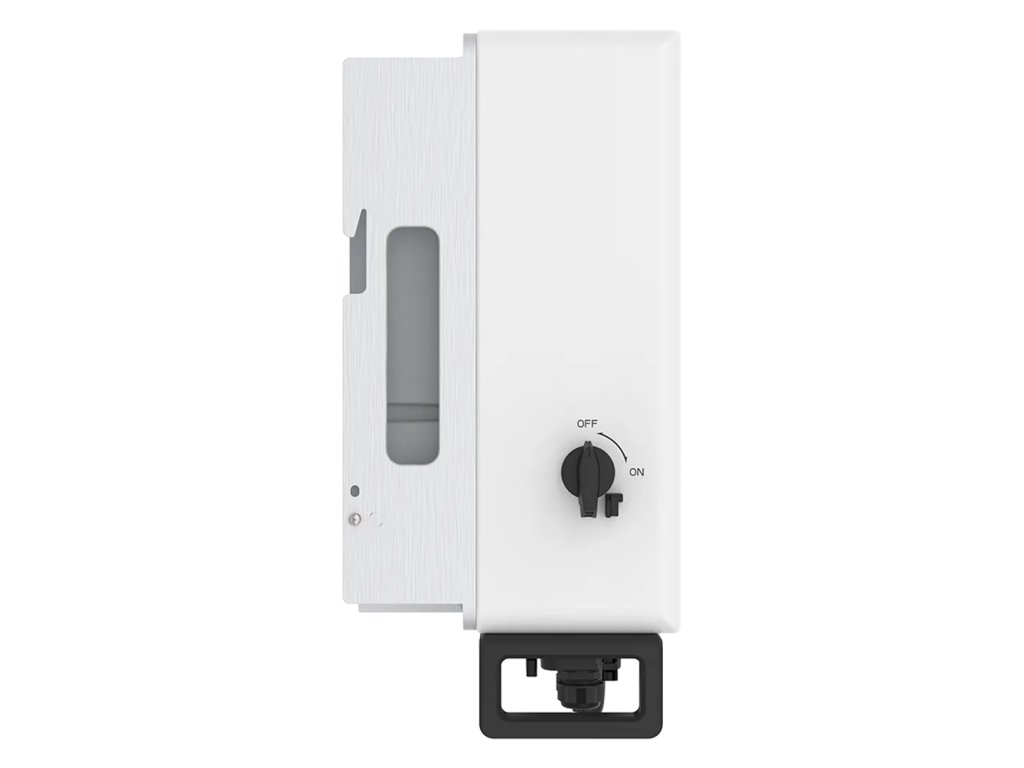

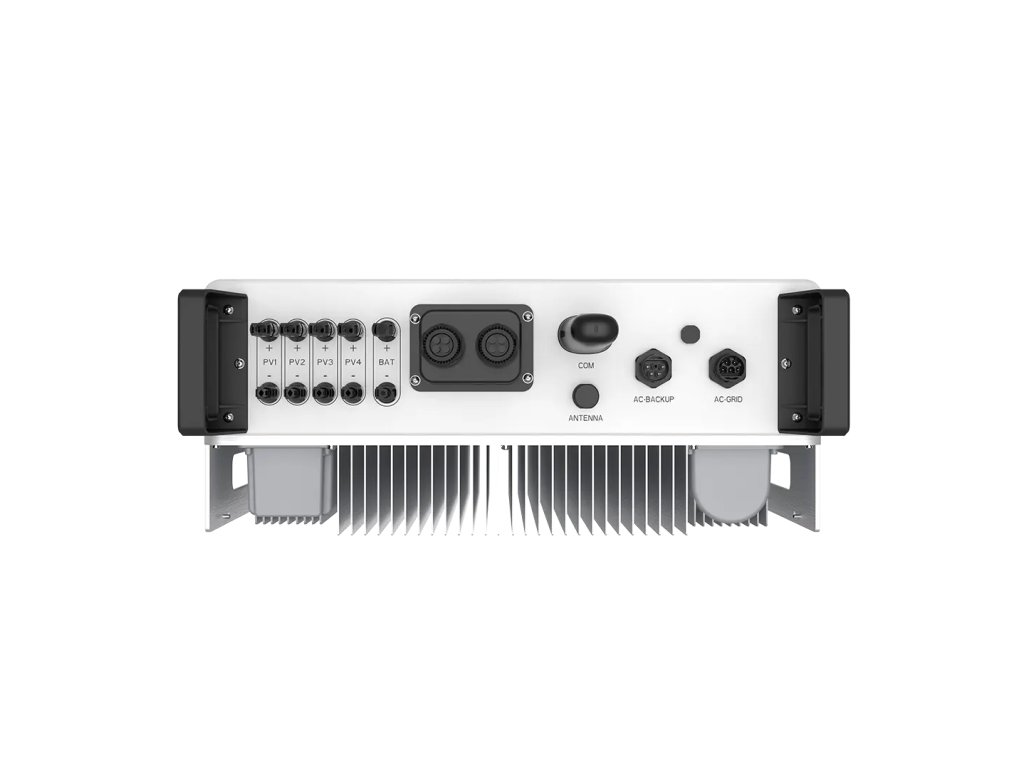

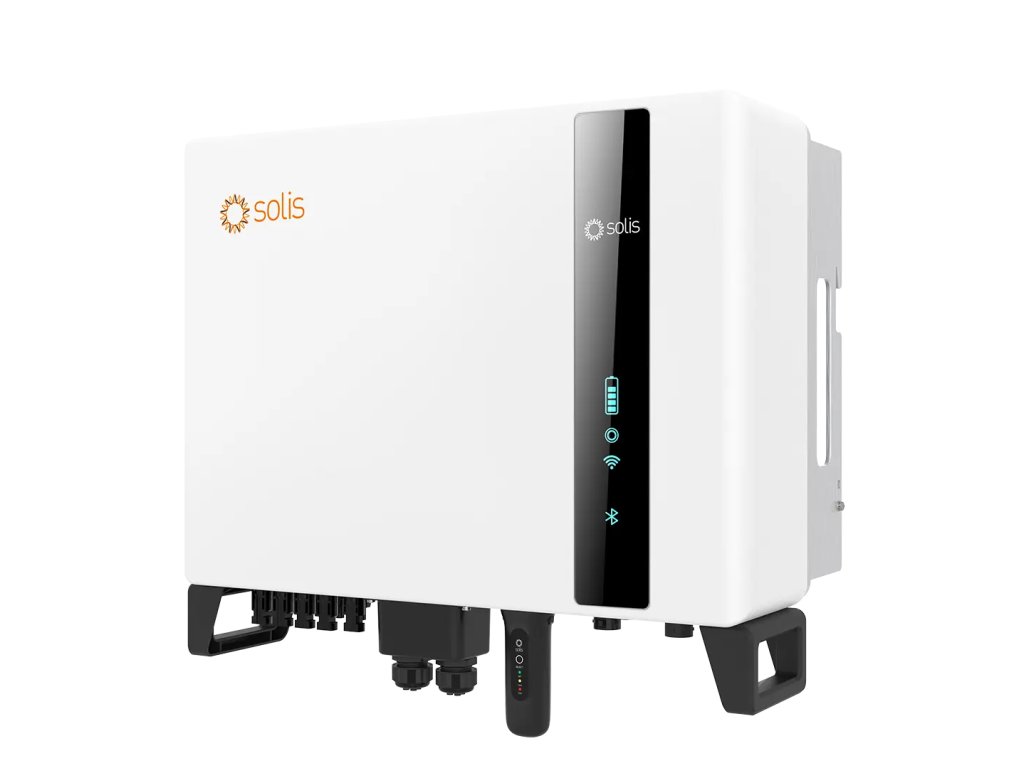

Solis S6-EH3P10K-H-EU
Code: 23002150052Product detailed description
Key Features:
Smart Energy Management
- AI intelligently manages charging and discharging based on TOU (Time-of-Use) tariffs
- Seamless integration with VPP and EMS platforms for enhanced energy optimization
High Performance
- Supports three-phase unbalanced output, allowing up to 50% of rated inverter power per phase(For single system)
- 160% PV input capacity to maximize solar energy utilization
- Switching time < 10ms
Flexible & Scalable
- Compatible with mainstream lithium batteries
- Easily expand system capacity using parallel connections and AC coupling
Simple & Fast Configuration
- Bluetooth app support for quick and easy setup
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 36.5 kg |
| Brand: | Solis |
| Lenght: | 230 mm |
| Width: | 600 mm |
| Height: | 500 mm |
| Power: | 10000 W |
| Number of phases: | 3 |
| Degree of protection (IP): | IP66 |
| Communication: | RS485, CAN, Wi-Fi, LAN, Cellular |
| Warranty: | 10 |
| Number of MPPT: | 4 |
| String: | 1 Per MPPT |
| Type: | Hybrid |
| Maximum output current: | 43.2 A |
| Nominal voltage: | 400 V |
Installation video
Be the first who will post an article to this item!
Only registered users may submit ratings. Please log in or sign up.
Be the first who will post an article to this item!
Solis, a brand of Ginlong Technologies (founded in 2005), is one of the world's largest and most experienced solar inverter manufacturers. With millions of units deployed globally, Solis offers a complete range of string inverters for residential, commercial, and utility-scale applications, all backed by rigorous international certifications and a proven track record of reliability.
Known for delivering outstanding value, Solis inverters combine high conversion efficiency, smart monitoring capabilities, and robust build quality at competitive price points. Whether for a single rooftop installation or a multi-megawatt solar farm, Solis provides dependable power conversion you can count on.
