SolisStorage EverCore 100kWh Battery Cabinet C5
Code: EVERCORE-100KWH-C5
Related products
Product detailed description
Overview

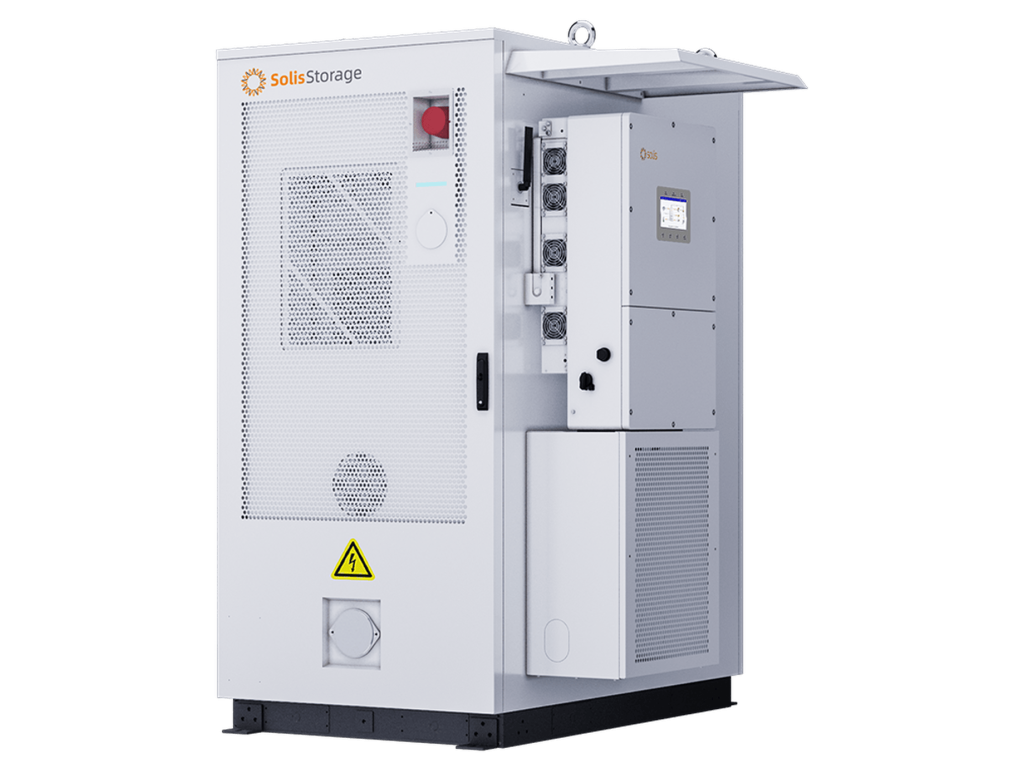

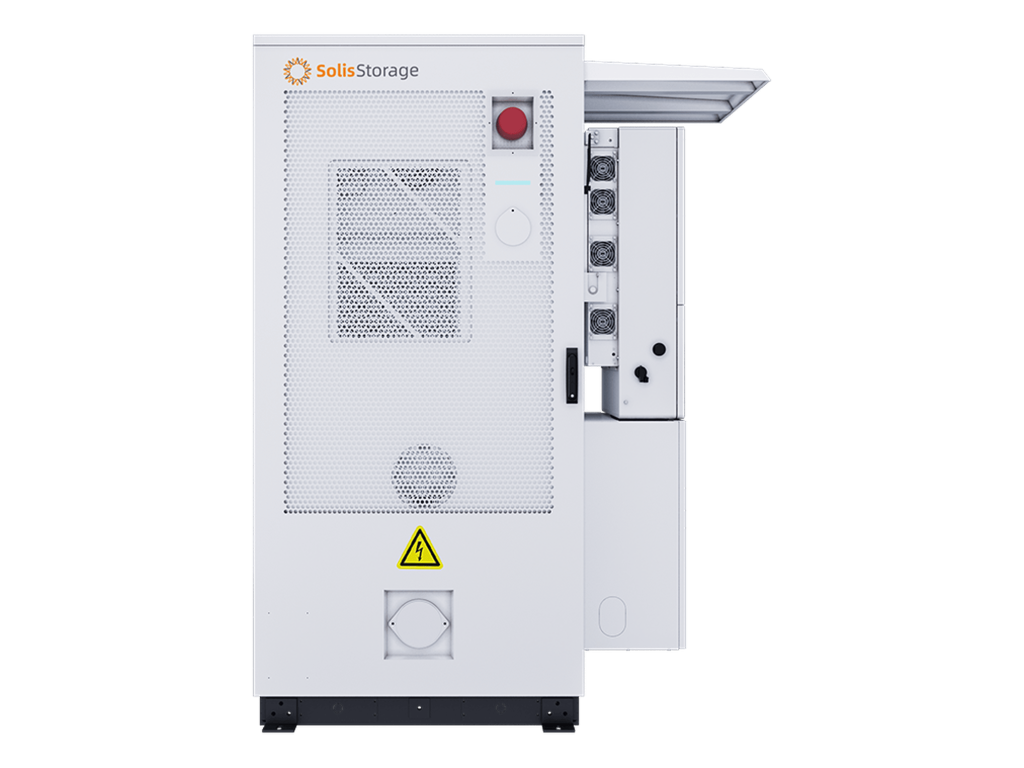

The SolisStorage EverCore 100kWh is a C&I battery cabinet built on high-capacity 314 Ah EVE LFP cells, integrating BMS, fire suppression and industrial air-conditioned thermal management in a single IP55 outdoor enclosure. This Standard version + C5 includes all Standard safety items plus C5 anti-corrosion environmental protection for coastal and aggressive industrial atmospheres. It pairs with the Solis S6-EH3P50K-H(21A) 50 kW three-phase hybrid inverter to form a complete EverCore energy storage system, scalable up to 1.25 MW / 15.66 MWh.
Key Features
- 100.5 kWh rated / 99.3 kWh usable capacity with 0.5C charge and discharge
- High-capacity 314 Ah EVE LFP cells with 8000-cycle design life
- 15 layers of escalating protection with aerosol fire suppression and pressure relief
- Standard version + C5: all Standard safety items plus C5 anti-corrosion environmental protection for coastal and aggressive industrial atmospheres
- Industrial air-conditioned cooling with zero heat transfer between inverter and cells
- On-grid/off-grid switchover under 10 ms with the paired Solis hybrid inverter
- Remote monitoring and OTA updates via SolisStorage Cloud
Technical Specifications
| Rated energy capacity | 100.5 kWh |
| Usable energy capacity | 99.3 kWh |
| Cell type | LFP 3.2 V / 314 Ah (EVE) |
| Battery configuration | 1P100S, 320 V rated, 5 x 20.1 kWh packs |
| Max charge/discharge rate | 0.5 P |
| Cell cycle life | 8000 cycles (25 ± 2 °C, 0.5P, 70% SOH) |
| Cooling | Industrial-grade air conditioning (cabinet), air-cooled packs |
| Fire safety | All standard safety items plus c5 anti-corrosion environmental protection for coastal and aggressive industrial atmospheres |
| Ingress protection | IP55 |
| Anti-corrosion class | C5 |
| Operating temperature | -25 to +55 °C |
| Noise | 70 dB(A) @ 1 m |
| Dimensions (W x H x D) | 950 x 2030 x 1540 mm |
| Weight | 1490 kg |
| Compatible hybrid inverter | Solis S6-EH3P50K-H(21A) (50 kW) |
| Certifications | IEC 62619, IEC 62477, IEC 63056, IEC 62040, IEC 61000-6-2/4, UN38.3 |
| Warranty | 10 years |
Compatible Inverters
- Solis S6-EH3P50K-H(21A) three-phase high-voltage hybrid inverter (50 kW)
Applications
- Commercial and industrial (C&I) energy storage
- Peak shaving and load shifting
- PV self-consumption optimisation
- Backup power for critical loads
- EV-charging support and grid services
Additional parameters
| Category: | Commercial Energy Storage |
|---|---|
| Weight: | 1490 kg |
| Brand: | Solis |
| Lenght: | 1540 mm |
| Width: | 950 mm |
| Height: | 2030 mm |
| Degree of protection (IP): | IP55 |
-
SolisStorage EverCore (100-261)kWh C&I BESS Datasheet (PDF)
-
SolisStorage EverCore C&I BESS Product Flyer (PDF)
-
SolisStorage EverCore (99.9-120)kWh User Manual (PDF)
-
SolisStorage EverCore (99.9-120)kWh Quick Installation Manual (PDF)
