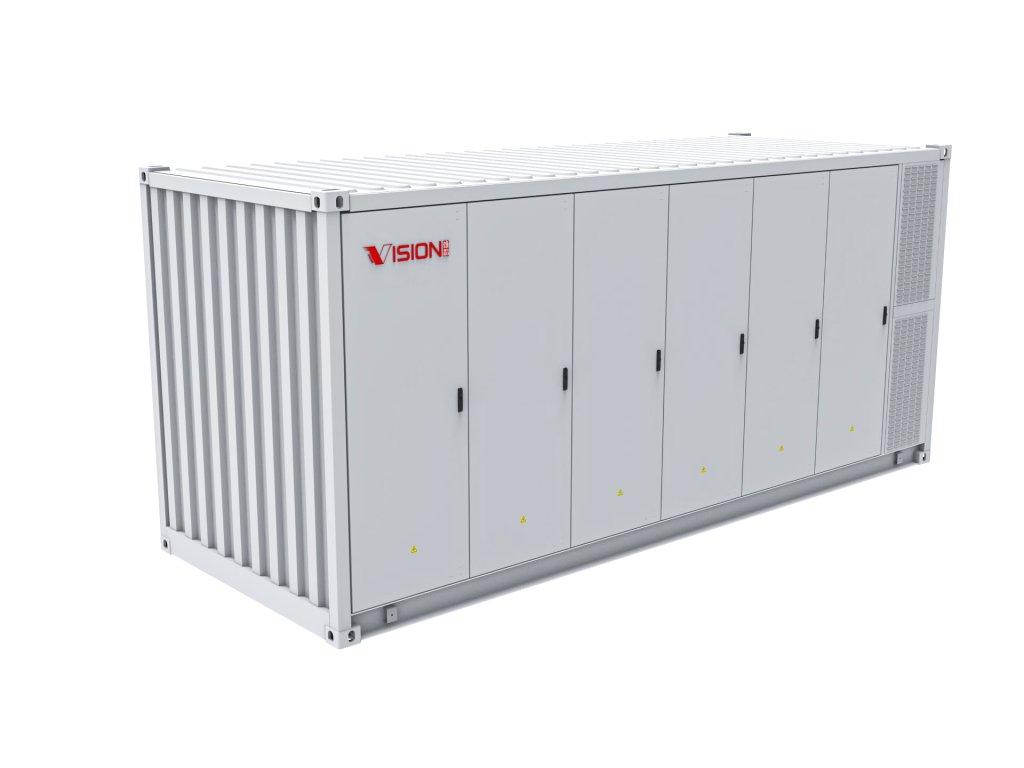

Vision CBES-3.34MWh 0.5C Liquid Cooled ESS
Code: VISION-CBES-3.34MWH-0.5C-LC
Product detailed description
Secured and Stable
- 10-year lifespan of the liquid cooling medium, ensuring long-term thermal stability and system performance.
- Multi-layered safety protections, including combustible gas detection, forced ventilation, and explosion relief mechanisms for fail-safe operation
Smart and Efficient
- The advanced liquid cooling system, integrated with intelligent thermal management and BMS, enhances efficiency while cutting auxiliary power consumption by 20%.
- Real-time precision temperature control maintains cell temperature variations within 2.5°C, ensuring optimal performance and safety.
Highly Integrated
- Featuring a modular design, the system enables back-to-back deployment for optimal space efficiency.
- With an ultra-high capacity of 5MWh in a standard 20ft configuration, it maximizes energy storage density while minimizing footprint.
Easy Maintenance
- Over-the-air firmware upgrades
- Mobile APP-based monitoring and maintenance
- Cloud-edge coordinated management
- Full lifecycle system fault detection
- Battery health evaluation
- Proactive performance alerts
Additional parameters
| Category: | Commercial Energy Storage |
|---|---|
| Weight: | 35000 kg |
| Brand: | Vision Battery |
| Lenght: | 6058 mm |
| Width: | 2438 mm |
| Height: | 2896 mm |
| Degree of protection (IP): | IP55 |
| Communication: | Ethernet |
| Nominal voltage: | 1331.2 V |
| Operating voltage: | 1164.8-1497.6V |
| Battery type: | High voltage |
| Usable energy: | 3343.97 KWh |
| Discharge power: | 1672 kW |
