Deye DL1000B-WiFi Data Logger (USB)
Code: DL1000B-WIFI
Related products
Product detailed description
Overview

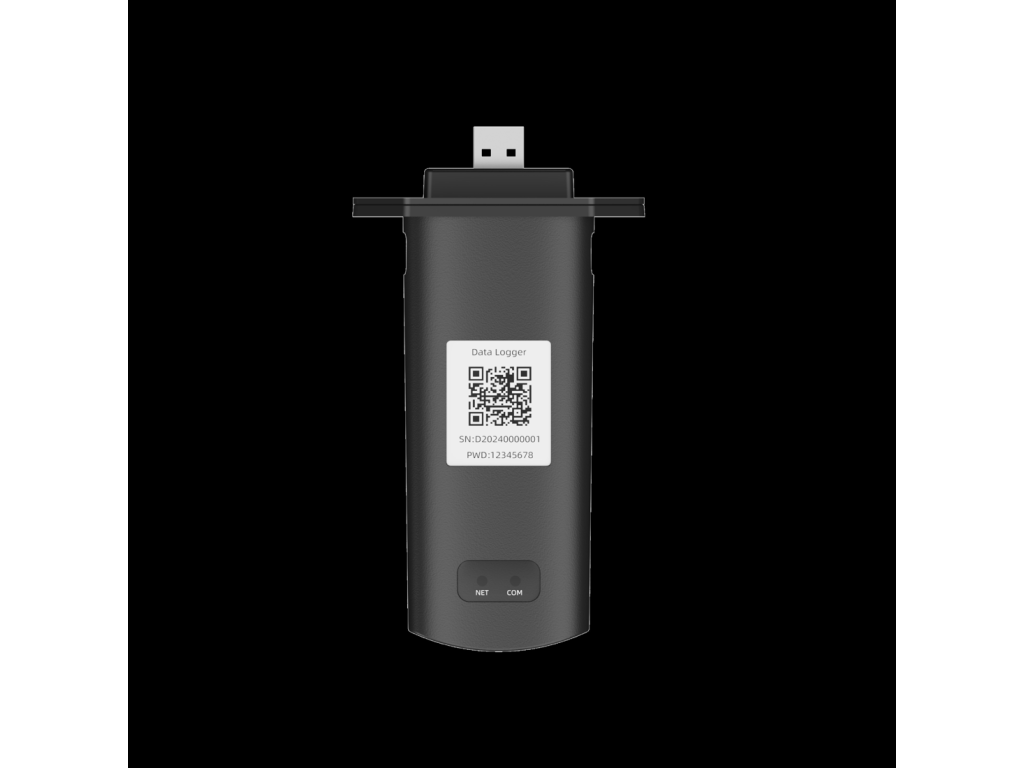

Deye DL1000B-WiFi - plug-in USB Wi-Fi data logger for Deye inverters. Sends operating and yield data to Deye Cloud for remote PV monitoring. IP65.
Key Features
- Plug-in USB Wi-Fi logger for Deye inverters
- Streams operating status and energy data to Deye Cloud
- Remote, long-term PV system monitoring via app/web
- OTA firmware updates and data backfilling
- IP65, -40 to +65 °C
Technical Specifications
| Connectivity | 2.4 GHz Wi-Fi |
| Data interface | 1 x UART, 2 x LED, USB |
| Power supply | 5 V DC (from inverter) |
| Communication to cloud | Deye Cloud |
| Software | AT command, OTA, data backfilling |
| Protection rating | IP65 |
| Operating temperature | -40 to +65 °C |
| Dimensions (W x H x D) | 70.5 x 116.6 x 30.5 mm |
System Compatibility
Part of the Deye accessory ecosystem for hybrid inverters. Always confirm the exact configuration with the supplier.
Additional parameters
| Category: | Monitoring |
|---|---|
| Weight: | 0.1 kg |
| Brand: | DEYE |
| Lenght: | 30.5 mm |
| Width: | 70.5 mm |
| Height: | 116.6 mm |
| Degree of protection (IP): | IP65 |
| Communication: | Wi-Fi |
