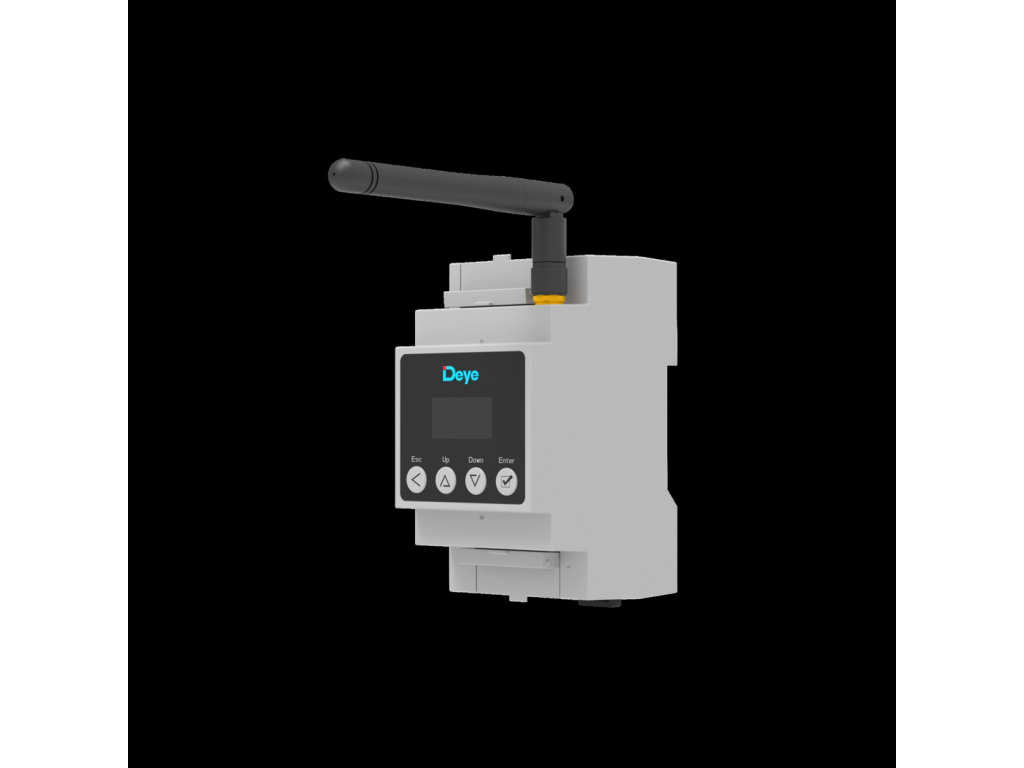

Deye SUN-SMART-CT01 Smart Energy Meter (1/3-phase)
Code: SUN-SMART-CT01
Related products
Product detailed description
Overview
Deye SUN-SMART-CT01 - single/three-phase smart energy meter (50 mA CT) with LoRa and RS485, LCD display, for Deye Smart Home and load management.
Key Features
- Single- and three-phase energy metering with external CT (50 mA)
- LoRa wireless or RS485 (Modbus) communication
- LCD display of V, A, W, var, PF, Hz and energy
- DIN-rail mounting, IP20
- Core of Deye Smart Home / load management
Technical Specifications
| Connection | L1/N (single phase), L1/L2/L3/N (three phase) |
| CT secondary current | 50 mA |
| Operating voltage | 85-300 Vac (L-N) |
| Rated frequency | 50 / 60 Hz |
| Self consumption | ≤2 W |
| Accuracy | V ±0.1 V, I ±0.01 A, P ±1 W |
| Communication | LoRa (863-870 MHz, 200 m) / RS485 |
| Display | LCD |
| Protection rating | IP20 |
| Mounting | DIN rail |
| Operating temperature | -40 to +60 °C |
| Dimensions (W x H x D) | 53 x 96 x 64 mm |
| Weight | 0.15 kg |
| Certification | IEC/EN 61010-1 |
System Compatibility
Part of the Deye accessory ecosystem for hybrid inverters. Always confirm the exact configuration with the supplier.
Additional parameters
| Category: | Monitoring |
|---|---|
| Weight: | 0.15 kg |
| Brand: | DEYE |
| Lenght: | 64 mm |
| Width: | 53 mm |
| Height: | 96 mm |
| Degree of protection (IP): | IP20 |
| Communication: | RS485, LoRa |
